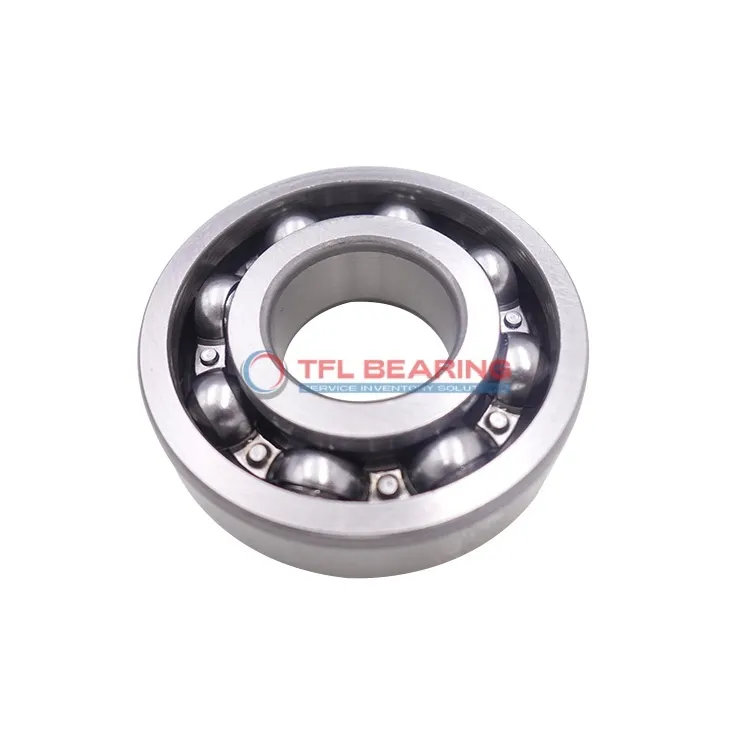

Single Row Deep Groove Ball Bearings 320SFG

Single Row Deep Groove Ball Bearings 320SFG

The 320SFG is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability under heavy use. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable precision.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It suits applications like electric motors or pumps where radial load support is key.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for industrial use. The compact 47mm width fits well in space-constrained setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320SFG
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 932.751
Single Row Deep Groove Ball Bearings 320SFG dimension drawing
Download DWG Download PDF

Features

Performance Features of 320SFG Bearing

320SFG Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 16,800 lbf.
Its single-row deep groove design ensures smooth operation and reliable performance in various applications.
The open seal type allows for easy maintenance and lubrication adjustments when needed.
With a temperature range of -30°C to 120°C, it performs well in diverse working conditions.

Application

Industrial Uses of 320SFG Bearing
320SFG Bearing is commonly used in heavy machinery, such as industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently.
The open seal type allows for easy lubrication, making it suitable for high-temperature environments up to 120°C.

Where Is 320SFG Bearing Used?
In automotive applications, 320SFG Bearing supports components like wheel hubs and transmissions, thanks to its durable chrome steel construction.
Its metric sizing ensures compatibility with a variety of vehicle designs, from commercial trucks to industrial equipment.

Perfect Fit for Automation: 320SFG Bearing
320SFG Bearing works well in automated systems, including conveyor belts and robotic arms, where consistent performance is key.
The ABEC 1 tolerance class provides reliable precision for smooth operation in repetitive tasks.

Medical vs Industrial: Where 320SFG Bearing Excels
While 320SFG Bearing isn’t typically used in medical devices, it shines in industrial settings like compressors and electric motors.
Its static and dynamic load capacity of 16,800 lbf makes it a sturdy choice for heavy-duty applications.

Key Fields for 320SFG Bearing
320SFG Bearing is ideal for agricultural machinery, such as tractors and harvesters, due to its robust design and radial load handling.
The chrome steel rings and balls ensure long-lasting performance even in demanding outdoor conditions.
