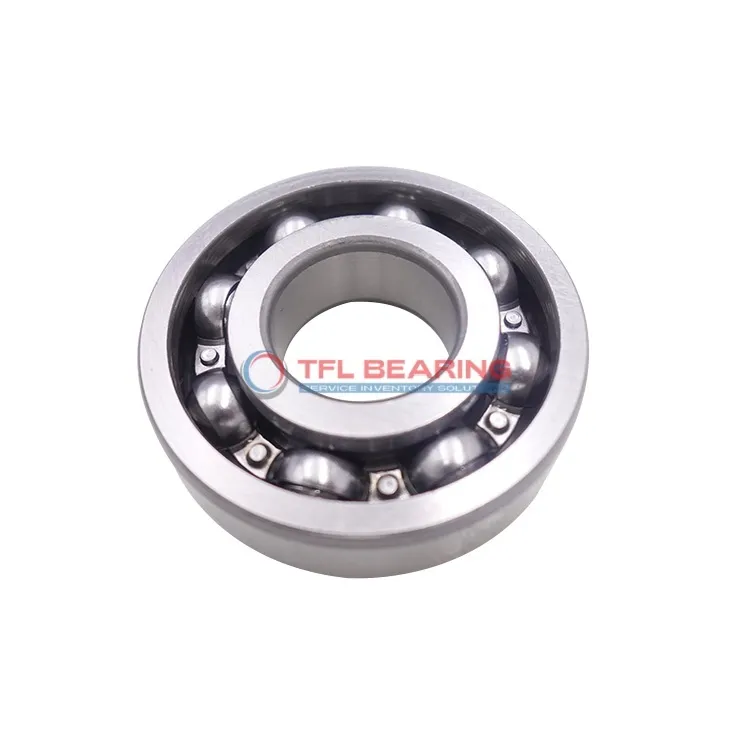

Single Row Deep Groove Ball Bearings 320S

Single Row Deep Groove Ball Bearings 320S

The 320S is a single-row deep groove ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable performance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery or automotive applications where radial load support is needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 320S
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 47 mm
  • Width Tolerance -0.2mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 101.034
Single Row Deep Groove Ball Bearings 320S dimension drawing
Download DWG Download PDF

Features

Performance Features of 320S Bearing

320S Bearing is constructed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16800 lbf, ensuring reliable performance in various applications.
The open design allows for easy lubrication, enhancing smooth operation and reducing friction.
With a temperature range of -30° to 120°C, it performs well in diverse environmental conditions.

Application

Common Applications of 320S Bearing
320S Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 320S Bearing can be found in wheel hubs and transmissions, providing smooth rotation under heavy loads. Its chrome steel construction offers durability, even in demanding driving conditions.

For automation systems, 320S Bearing supports robotic arms and conveyor belts, where precision and longevity are key. The ABEC 1 tolerance ensures consistent performance in repetitive tasks.

In household appliances like washing machines, 320S Bearing helps reduce noise and vibration during operation. Its metric sizing makes it compatible with a variety of European and Asian models.

Medical devices such as centrifuges benefit from 320S Bearing’s reliable radial load handling. The chrome steel cage enhances its resistance to wear in high-use environments.
