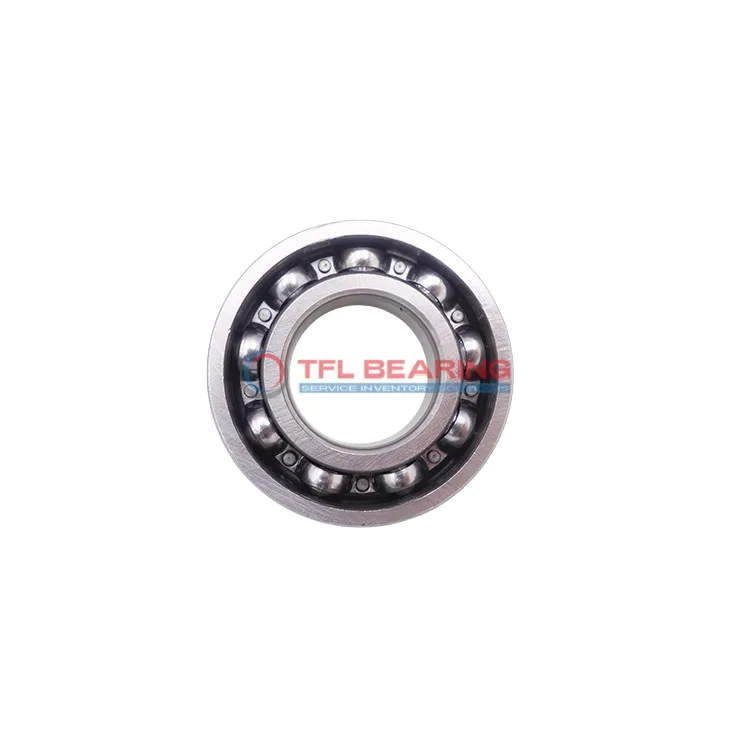

Single Row Deep Groove Ball Bearings 315SW1

Single Row Deep Groove Ball Bearings 315SW1

The 315SW1 is a single-row deep groove ball bearing with a 75mm bore and 160mm outer diameter, crafted from sturdy chrome steel for lasting performance. It handles radial loads up to 16800 lbf and operates smoothly in temperatures from -30°C to 120°C.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability under heavy use. The bearing meets ABEC 1 and ISO P0 tolerance standards for reliable precision.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery or automotive applications where radial load support is key.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various settings. The compact width of 68.29mm makes it easy to fit into tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 315SW1
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 68.29 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16800 lbf
  • Static Radial Load 16800 lbf
  • price（$） 117.243
Single Row Deep Groove Ball Bearings 315SW1 dimension drawing
Download DWG Download PDF

Features

Performance Features of 315SW1 Bearing

315SW1 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16800 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and extending service life.
With a temperature range of -30° to 120°C, it performs well in diverse environments.

Application

Industrial Uses of 315SW1 Bearing
315SW1 Bearing is commonly used in industrial machinery like pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding conditions.

Where Is 315SW1 Bearing Used?
You’ll often find 315SW1 Bearing in automotive applications such as wheel hubs and transmissions, thanks to its durable chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: 315SW1 Bearing
In automation systems, 315SW1 Bearing supports robotic arms and conveyor belts, providing smooth operation under continuous use. The ABEC 1 tolerance ensures precision in high-speed environments.

Medical vs Industrial: Where 315SW1 Bearing Excels
While 315SW1 Bearing performs well in industrial settings, it’s also suitable for medical devices like centrifuges, where consistent radial load handling is key. The chrome steel cage adds durability without compromising performance.

Perfect Fit for Automation: 315SW1 Bearing
315SW1 Bearing is a reliable choice for 3D printers and CNC machines, offering stability and precision. Its wide temperature range makes it adaptable to different working conditions.
