Single Row Deep Groove Ball Bearings 215MF

Single Row Deep Groove Ball Bearings 215MF

The 215MF is a single-row deep groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel for durability. It handles radial loads up to 16209 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design simplifies maintenance, while the chrome steel cage ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a cost-effective replacement option. It’s suitable for applications like electric motors or pumps where radial loads are common.

Weighing 1.25kg, it balances strength and manageability. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 215MF
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 16209 lbf
  • Static Radial Load 16186 lbf
  • Max Speed 5300 rpm
  • Weight 1.25 kg
  • price（$） 34.443

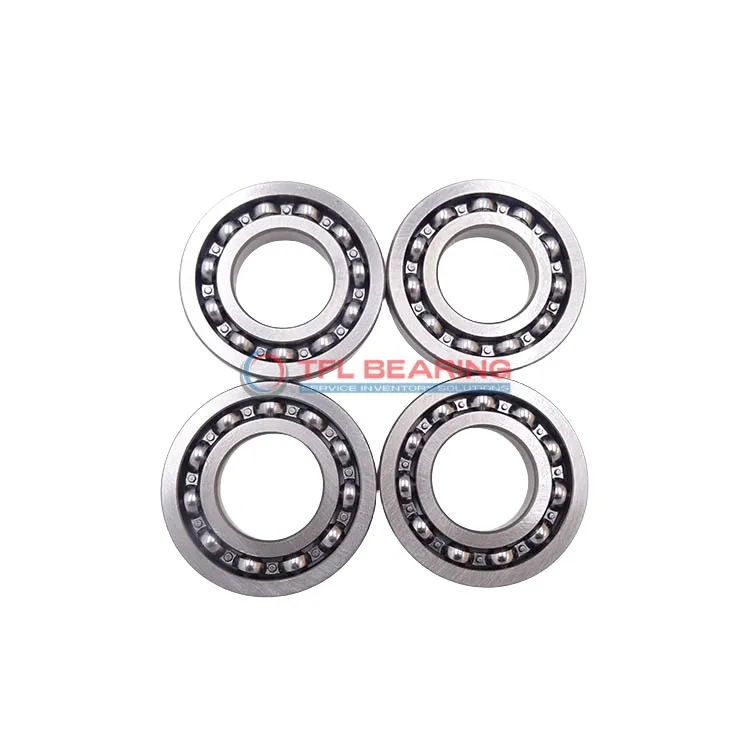

Single Row Deep Groove Ball Bearings 215MF dimension drawing
Download DWG Download PDF

Features

Performance Features of 215MF Bearing

215MF Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 16209 lbf, ensuring reliable performance in various applications.
The chrome steel cage maintains ball alignment, reducing friction and extending service life.
With a maximum speed of 5,300 rpm, it provides a balance of durability and efficiency.

Application

Common Applications of 215MF Bearing
215MF Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 215MF Bearing can be found in wheel hubs and transmission systems, providing smooth rotation under heavy loads. Its chrome steel construction offers durability and resistance to wear in demanding conditions.

For automation equipment, 215MF Bearing supports robotic arms and conveyor belts, ensuring precise movement and long service life. The metric sizing makes it compatible with a variety of European and Asian machinery standards.

In household appliances like washing machines, 215MF Bearing helps reduce noise and vibration, enhancing user comfort. Its temperature range also makes it adaptable to different operating environments.
