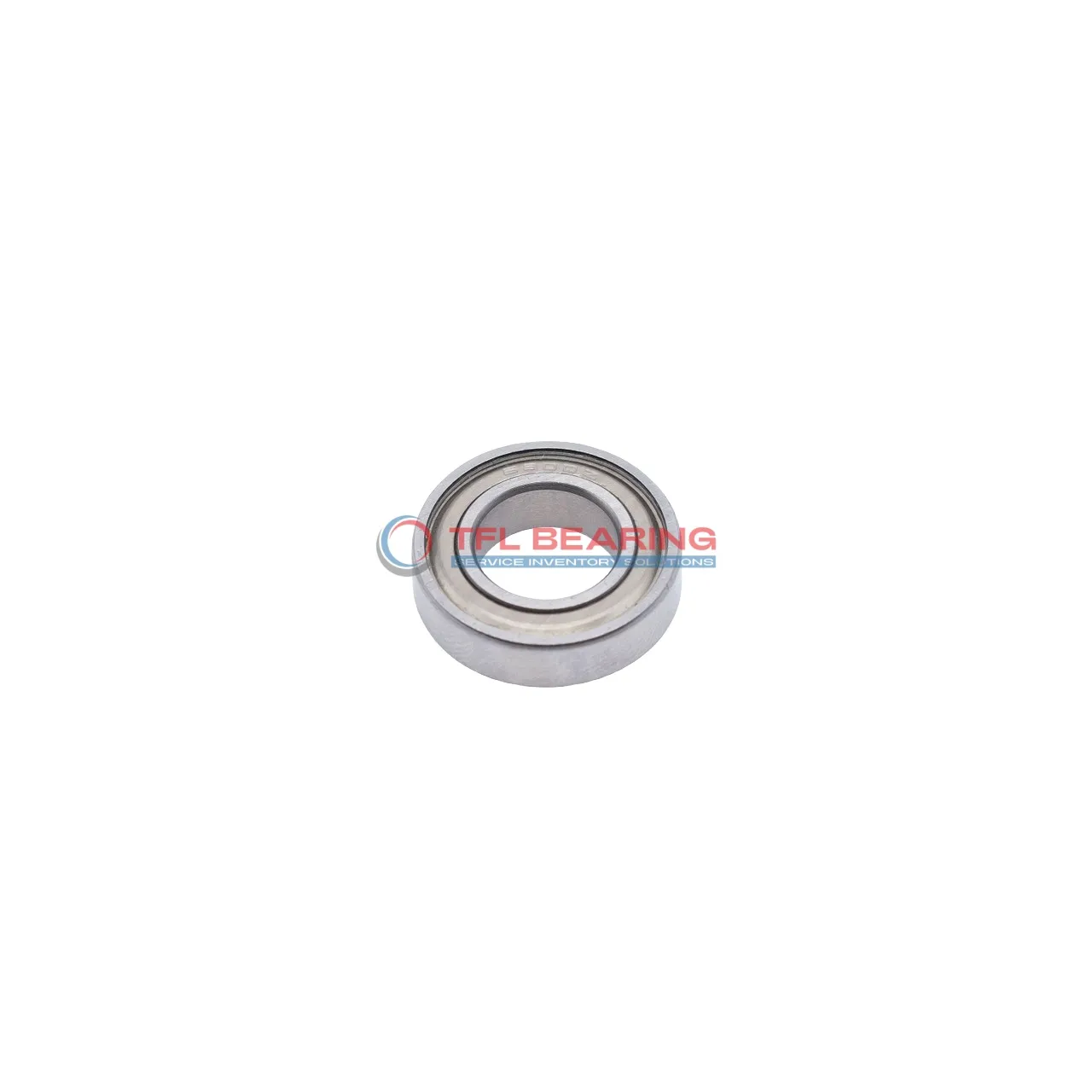

Single Row Deep Groove Ball Bearings 213SZZG

Single Row Deep Groove Ball Bearings 213SZZG

The 213SZZG is a single-row deep groove ball bearing, measuring 65mm by 120mm by 23mm, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 13601 lbf and operates smoothly at speeds up to 6000 RPM.

Its shielded design keeps dirt out while maintaining smooth rotation, and the chrome steel cage adds durability. The bearing works in temperatures from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a cost-effective alternative for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 213SZZG
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.15mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13601 lbf
  • Static Radial Load 13151 lbf
  • Max Speed 6000 rpm
  • Weight 1.05 kg
  • price（$） 26.982
Single Row Deep Groove Ball Bearings 213SZZG dimension drawing
Download DWG Download PDF

Features

Performance Features of 213SZZG Bearing

213SZZG Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 13601 lbf, ensuring reliable performance in various applications.
The shielded design protects against contaminants while maintaining smooth operation.
With a maximum speed of 6,000 rpm, it balances durability and efficiency for industrial use.

Application

Common Applications of 213SZZG Bearing
213SZZG Bearing is widely used in industrial machinery, such as pumps and electric motors, where its shielded design protects against contaminants. The chrome steel construction ensures durability in demanding environments.

What Makes 213SZZG Bearing a Preferred Choice?
In automotive applications, 213SZZG Bearing handles radial loads efficiently, making it suitable for wheel hubs and transmissions. Its ABEC 1 tolerance provides reliable performance without over-engineering.

Built for Heavy-Duty Use: 213SZZG Bearing
For automation systems, 213SZZG Bearing offers smooth operation in robotic arms and conveyor belts. The metric sizing ensures compatibility with standard European equipment.

Medical vs Industrial: Where 213SZZG Bearing Excels
In medical devices, 213SZZG Bearing’s shielded design prevents contamination in sensitive environments like imaging machines. Industrial settings benefit from its high load capacity and temperature resistance.
