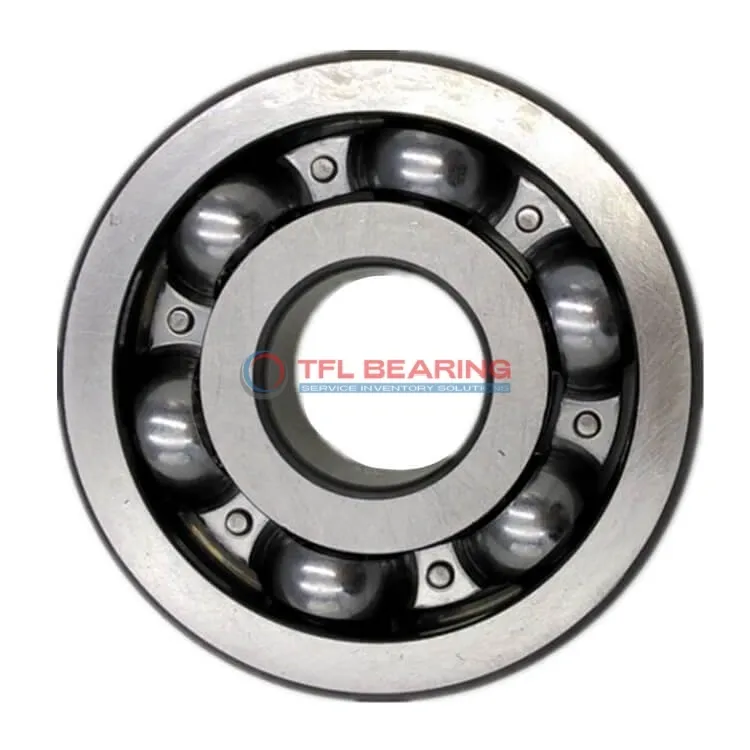

Single Row Deep Groove Ball Bearings 206SFFX

Single Row Deep Groove Ball Bearings 206SFFX

The 206SFFX is a single row deep groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 4699 lbf and can spin at speeds up to 12,000 RPM.

Its open design allows for easy lubrication, while the chrome steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing just 0.21kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 206SFFX
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 4699 lbf
  • Static Radial Load 3664 lbf
  • Max Speed 12000 rpm
  • Weight 0.21 kg
  • price（$） 18.09
Single Row Deep Groove Ball Bearings 206SFFX dimension drawing
Download DWG Download PDF

Features

Performance Features of 206SFFX Bearing

206SFFX Bearing is built with chrome steel rings and balls, offering reliable radial load support.
Its dynamic radial load capacity of 4699 lbf ensures steady performance in various applications.

The open design allows for easy lubrication, maintaining smooth operation over time.
With a maximum speed of 12,000 rpm, it balances speed and durability effectively.

206SFFX Bearing operates in temperatures from -30°C to 120°C, adapting to diverse environments.
The chrome steel cage enhances alignment, reducing wear and extending service life.

Application

Common Applications of 206SFFX Bearing
206SFFX Bearing is widely used in industrial machinery, such as electric motors and pumps, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 206SFFX Bearing can be found in components like alternators and water pumps, providing smooth rotation under varying loads. Its chrome steel construction offers durability in demanding environments.

For home appliances, 206SFFX Bearing works well in washing machines and fans, where its balanced design reduces noise and vibration. The ABEC 1 tolerance ensures consistent performance over time.

Where Is 206SFFX Bearing Used?
206SFFX Bearing is commonly seen in conveyor systems, handling radial loads with ease. Its metric sizing makes it compatible with a variety of European and Asian equipment.

The bearing also fits well in small machinery like power tools, where its compact size and robust build are advantageous. The temperature range allows it to perform reliably in both hot and cold conditions.
