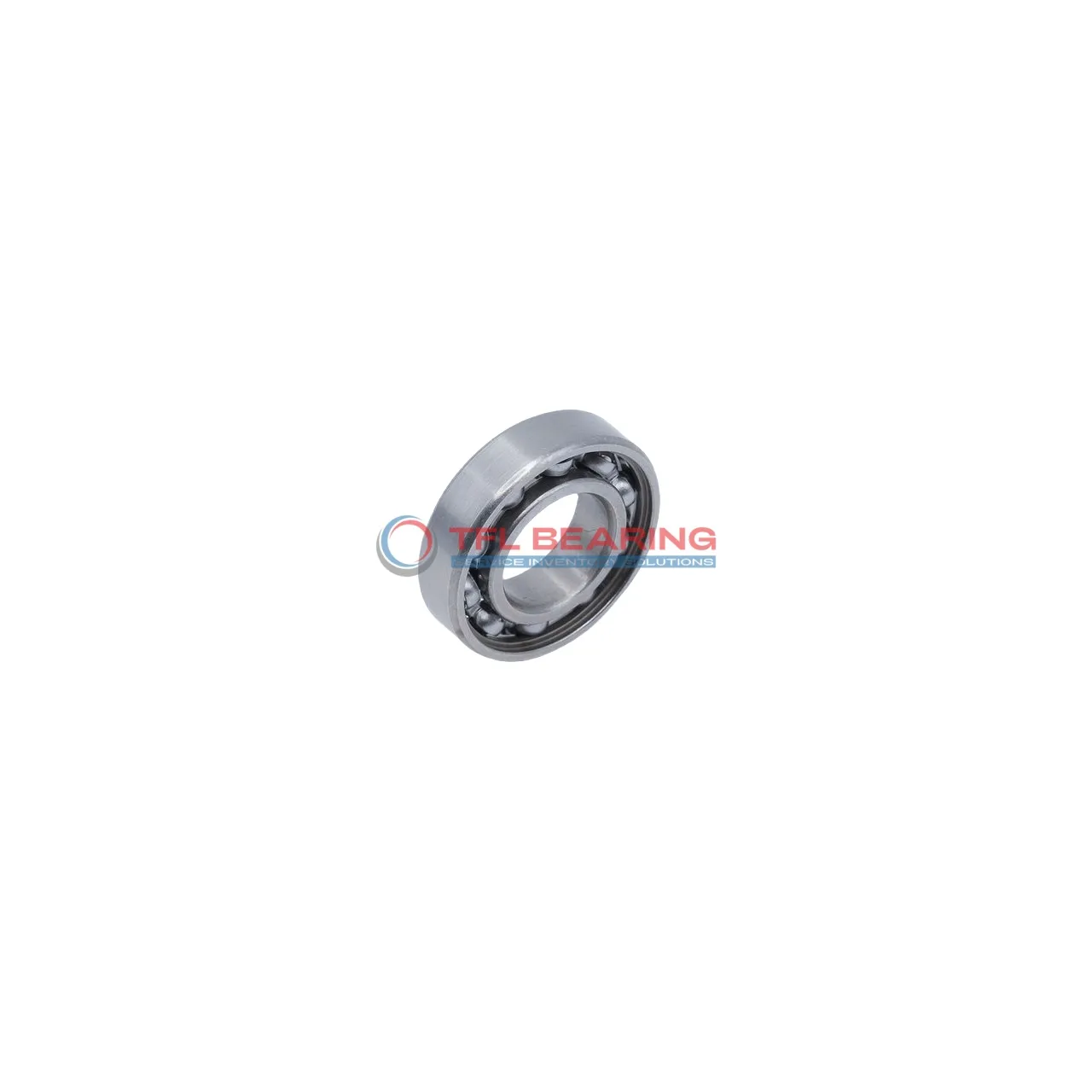

Single Row Deep Groove Ball Bearings 16100

The 16100 is a compact single-row deep groove ball bearing, measuring 10mm in bore and 28mm in outer diameter, with a width of just 8mm. Made from chrome steel, it’s built to handle radial loads up to 1034 lbf and can spin at speeds up to 25,000 RPM.
Its open design makes lubrication straightforward, while the stainless steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a reliable replacement option. It’s well-suited for small machinery or appliances where space is limited.
Weighing only 22g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards, it’s safe for various applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 16100
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC-1
Radial Clearance Trade No CN
Bore Dia 10 mm
Bore Dia Tolerance -0.008mm to 0
Outer Dia 28 mm
Outer Dia Tolerance -0.009mm to 0
Width 8 mm
Width Tolerance -0.120mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Lubrication Required
REACH Compliant
Temperature Range -30° to 110 °C
Dynamic Radial Load 1034 lbf
Static Radial Load 45 lbf
Max Speed 25000 rpm
Weight 22 g
price（$） 3.681

Single Row Deep Groove Ball Bearings 16100 dimension drawing

Download DWG Download PDF

Features

How Does 16100 Bearing Reduce Friction?

16100 Bearing features a single-row deep groove design, optimised for smooth radial load distribution.
The chrome steel construction ensures durability while reducing friction during operation.
With a maximum speed of 25,000 rpm, it delivers efficient performance in various applications.
Its stainless steel cage maintains ball alignment, further minimising wear and extending service life.

Application

Common Applications of 16100 Bearing
The 16100 Bearing is widely used in small electric motors, thanks to its compact 10mm bore and reliable radial load capacity. Its open design simplifies lubrication, making it a favourite for DIY projects and light industrial tools.

In household appliances like washing machines, 16100 Bearing ensures smooth rotation for drum assemblies. The chrome steel construction offers durability even with frequent use, while the ABEC-1 tolerance provides consistent performance.

For office equipment such as printers, 16100 Bearing’s low-noise operation and high-speed capability (up to 25,000 rpm) make it ideal. The stainless steel cage adds corrosion resistance, extending its lifespan in humid environments.

Automotive applications like alternators benefit from 16100 Bearing’s balanced radial load handling. Its metric sizing ensures easy compatibility with European and Asian vehicle components.

In fitness equipment, 16100 Bearing supports smooth movement in treadmills and exercise bikes. The lightweight design (22g) minimises energy loss, enhancing overall efficiency.
