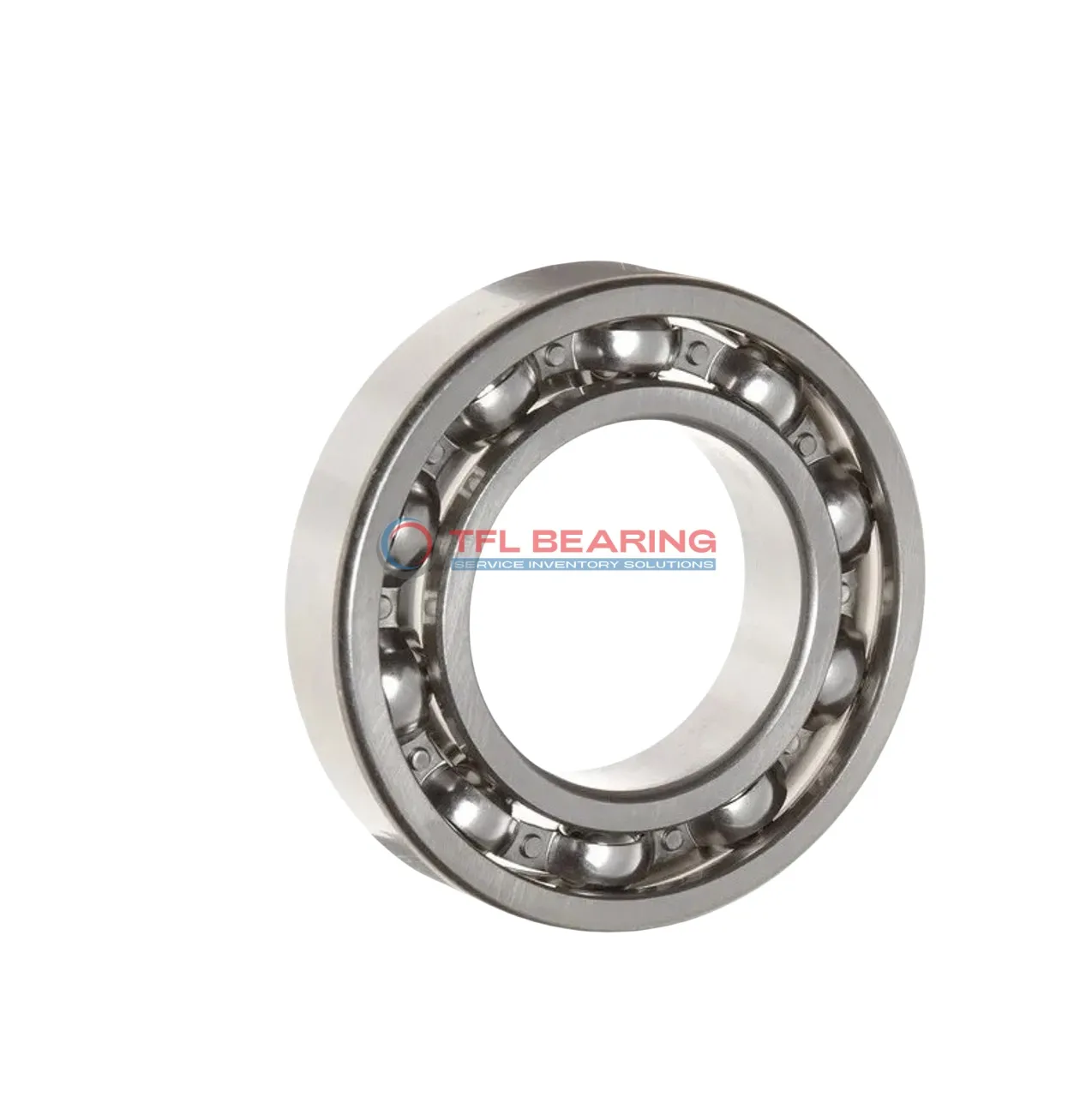

Single Row Deep Groove Ball Bearings 16068 MA

Single Row Deep Groove Ball Bearings 16068 MA

The 16068 MA is a single-row deep groove ball bearing with a 340mm bore and 520mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 77559 lbf and operates smoothly at speeds up to 1500 RPM.

Its open design simplifies maintenance, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 48kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16068 MA
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 340 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 520 mm
  • Outer Dia Tolerance -0.038mm to 0
  • Width 57 mm
  • Width Tolerance -0.4mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 77559 lbf
  • Static Radial Load 116901 lbf
  • Max Speed 1500 rpm
  • Weight 48000 g
Single Row Deep Groove Ball Bearings 16068 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of 16068 MA Bearing

16068 MA Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 77,559 lbf, making it suitable for heavy-duty applications.

The stainless steel cage ensures proper ball alignment, reducing friction and wear.
With a maximum speed of 1,500 rpm, it delivers reliable performance in various conditions.

16068 MA Bearing operates efficiently in temperatures ranging from -30° to 120°C.
Its open design allows for easy maintenance and lubrication, extending its service life.

The P6 tolerance class ensures high precision, making it ideal for demanding industrial uses.
Its robust construction and materials provide durability, even under continuous operation.

Application

Industrial Uses of 16068 MA Bearing
16068 MA Bearing is commonly used in large industrial machinery, such as heavy-duty pumps and compressors, where its radial load capacity ensures reliable performance. The open design allows for easy lubrication, extending its service life in demanding environments.

What Makes 16068 MA Bearing a Preferred Choice?
In conveyor systems, 16068 MA Bearing handles high radial loads with ease, making it ideal for mining and material handling applications. Its chrome steel construction provides excellent durability, even under continuous operation.

Built for Heavy-Duty Use: 16068 MA Bearing
For wind turbine applications, 16068 MA Bearing’s robust design supports the main shaft, ensuring smooth rotation under varying wind conditions. The stainless steel cage adds extra resistance to corrosion in outdoor settings.

Automotive vs Aerospace: Applications of 16068 MA Bearing
In automotive wheel hubs, 16068 MA Bearing offers stable performance under radial loads, while in aerospace, its precision tolerances make it suitable for auxiliary equipment. The metric sizing ensures compatibility across different industries.

Where Is 16068 MA Bearing Used?
You’ll often find 16068 MA Bearing in agricultural machinery, such as tractors and harvesters, where its ability to handle heavy loads is crucial. The wide temperature range also makes it adaptable to various working conditions.
