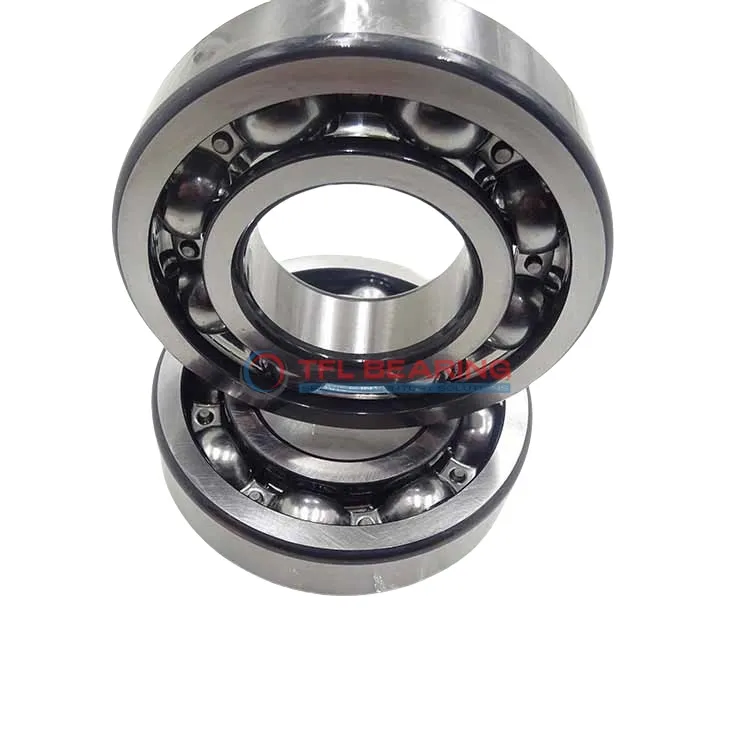

Single Row Deep Groove Ball Bearings 16044

Single Row Deep Groove Ball Bearings 16044

The 16044 is a single-row deep groove ball bearing with a 220mm bore and 340mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 39117 lbf and operates smoothly at speeds up to 2400 RPM.

Its open design simplifies maintenance, while the precision P6 tolerance ensures reliable performance. The bearing functions well in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial machinery or large equipment where radial loads are prevalent.

Weighing 11.5kg, it’s built for durability and long service life. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16044
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Bore Dia 220 mm
  • Bore Dia Tolerance -0.022mm to 0
  • Outer Dia 340 mm
  • Outer Dia Tolerance -0.028mm to 0
  • Width 37 mm
  • Width Tolerance -0.3mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • REACH Compliant
  • Temperature Range -30° to 120 °C
  • Dynamic Radial Load 39117 lbf
  • Static Radial Load 45861 lbf
  • Max Speed 2400 rpm
  • Weight 11500 g
Single Row Deep Groove Ball Bearings 16044 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16044 Bearing

16044 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 39117 lbf, making it suitable for demanding industrial applications.

The single row deep groove design ensures smooth operation and efficient load distribution.
With a maximum speed of 2,400 rpm, it balances performance and durability in various conditions.

16044 Bearing operates within a temperature range of -30° to 120°C, adapting to different environments.
Its P6 tolerance class provides precise performance for applications requiring high accuracy.

The open seal type allows for easy maintenance and inspection.
16044 Bearing’s robust construction ensures long service life, reducing replacement frequency.

Application

Industrial Uses of 16044 Bearing
The 16044 Bearing is commonly used in heavy machinery like industrial pumps and large electric motors, where its radial load capacity ensures reliable performance.
Its open design allows for easy lubrication, making it suitable for high-temperature environments up to 120°C.

What Makes 16044 Bearing a Preferred Choice?
In conveyor systems, 16044 Bearing’s chrome steel construction provides durability under continuous operation.
The P6 tolerance class ensures precision, which is vital for maintaining alignment in long-running equipment.

Built for Heavy-Duty Use: 16044 Bearing
For wind turbine applications, 16044 Bearing handles radial loads efficiently while withstanding harsh weather conditions.
Its metric sizing makes it interchangeable with major brands like SKF, simplifying maintenance.

Automotive vs Industrial: Applications of 16044 Bearing
In automotive wheel hubs, 16044 Bearing offers smooth rotation under heavy loads.
Meanwhile, in industrial gearboxes, its static radial load capacity of 45861 lbf ensures long service life.

Perfect Fit for Large Equipment: 16044 Bearing
The 16044 Bearing is ideal for paper mill machinery, where its 340 mm outer diameter provides stability.
Its temperature range from -30° to 120°C makes it adaptable to various operating conditions.
