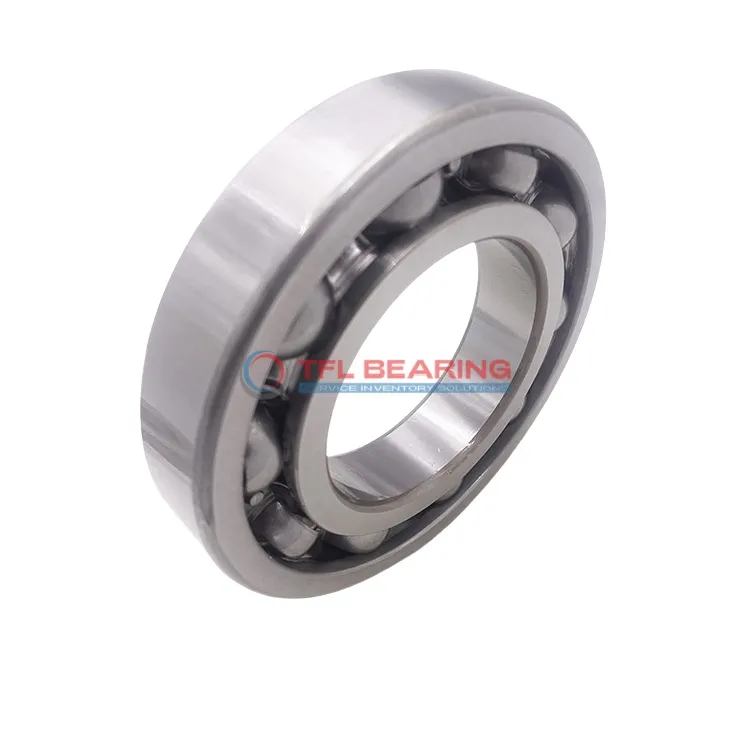

Single Row Deep Groove Ball Bearings 16032

The 16032 is a single-row deep groove ball bearing with a 160mm bore and 240mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 22368 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for radial load applications like electric motors or industrial machinery.

Weighing 4200g, it’s a robust choice for heavy-duty use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 16032
Brand TFL
Interchangeable SKF
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Tolerance Class ABEC-1
Radial Clearance Trade No CN
Bore Dia 160 mm
Bore Dia Tolerance -0.025mm to 0
Outer Dia 240 mm
Outer Dia Tolerance -0.03mm to 0
Width 25 mm
Width Tolerance -0.250mm to 0
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Lubrication Required
REACH Compliant
Temperature Range -30° to 110 °C
Dynamic Radial Load 22368 lbf
Static Radial Load 24279 lbf
Max Speed 2800 rpm
Weight 4200 g
price（$） 114.3

Single Row Deep Groove Ball Bearings 16032 dimension drawing

Download DWG Download PDF

Features

Performance Features of 16032 Bearing

16032 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 22368 lbf.
Its stainless steel cage ensures smooth operation, reducing friction and wear.

The ABEC-1 tolerance class of 16032 Bearing provides reliable precision for various applications.
With a maximum speed of 2,800 rpm, it balances performance and durability.

16032 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design simplifies maintenance, though lubrication is required for optimal performance.

The 16032 Bearing’s dimensions (160 mm×240 mm×25 mm) make it suitable for space-constrained installations.
Its static radial load capacity of 24279 lbf ensures stability under heavy loads.

Application

Industrial Uses of 16032 Bearing
16032 Bearing is commonly used in heavy machinery like industrial pumps and gearboxes, where its deep groove design handles radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

Where Is 16032 Bearing Used?
You’ll often find 16032 Bearing in conveyor systems and agricultural equipment, thanks to its robust chrome steel construction. Its ABEC-1 tolerance ensures reliable performance without unnecessary complexity.

Built for Heavy-Duty Use: 16032 Bearing
16032 Bearing excels in applications like electric motors and fans, where its static radial load capacity of 24279 lbf provides stability. The stainless steel cage adds durability, making it suitable for continuous operation.

Automotive vs Industrial: Applications of 16032 Bearing
In automotive systems, 16032 Bearing supports components like alternators, while in industrial settings, it’s ideal for machinery requiring consistent radial load handling. Its metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: 16032 Bearing
16032 Bearing works well in automated production lines, where its smooth operation reduces downtime. The temperature range of -30° to 110°C makes it adaptable to different working environments.
