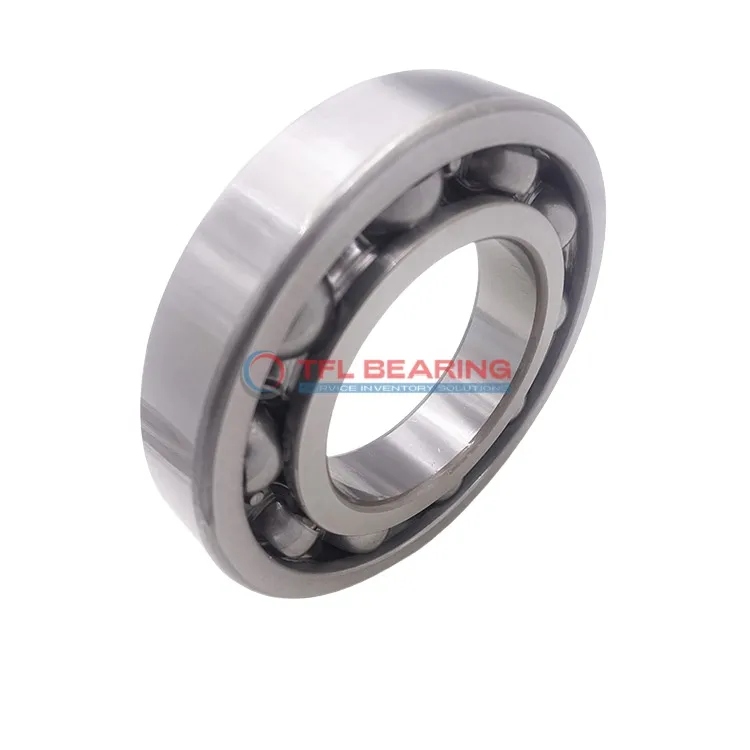

Single Row Deep Groove Ball Bearings 16032/W64

Single Row Deep Groove Ball Bearings 16032/W64

The 16032/W64 is a single-row deep groove ball bearing with a 160mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 22368 lbf and operates smoothly at speeds up to 2800 RPM.

Its open design and solid oil lubrication ensure low maintenance, while the chrome steel cage offers durability. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 4200g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16032/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.03mm to 0
  • Width 25 mm
  • Width Tolerance -0.250mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 22368 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 2800 rpm
  • Weight 4200 g
Single Row Deep Groove Ball Bearings 16032/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16032/W64 Bearing

16032/W64 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 22368 lbf, making it suitable for demanding industrial applications.

The solid oil lubrication ensures consistent performance, reducing the need for frequent maintenance.
With a maximum speed of 2,800 rpm, it balances durability and efficiency in operation.

16032/W64 Bearing operates smoothly in temperatures ranging from -30°C to 120°C.
Its open design allows for easy inspection and maintenance, saving time and effort.

Application

Common Applications of 16032/W64 Bearing
16032/W64 Bearing is widely used in industrial machinery, such as large pumps and gearboxes, where its deep groove design handles radial loads efficiently. The solid oil lubrication ensures long service life even in demanding conditions.

In automotive applications, 16032/W64 Bearing fits well in heavy-duty transmissions and axle systems, providing reliable performance under high radial loads. Its chrome steel construction offers durability and resistance to wear.

For automation equipment, 16032/W64 Bearing supports smooth operation in robotic arms and conveyor systems. The open seal design allows for easy maintenance, making it a practical choice for continuous operation.

In household appliances like washing machines, 16032/W64 Bearing ensures quiet and efficient performance. Its metric dimensions make it compatible with a variety of European and Asian appliance models.
