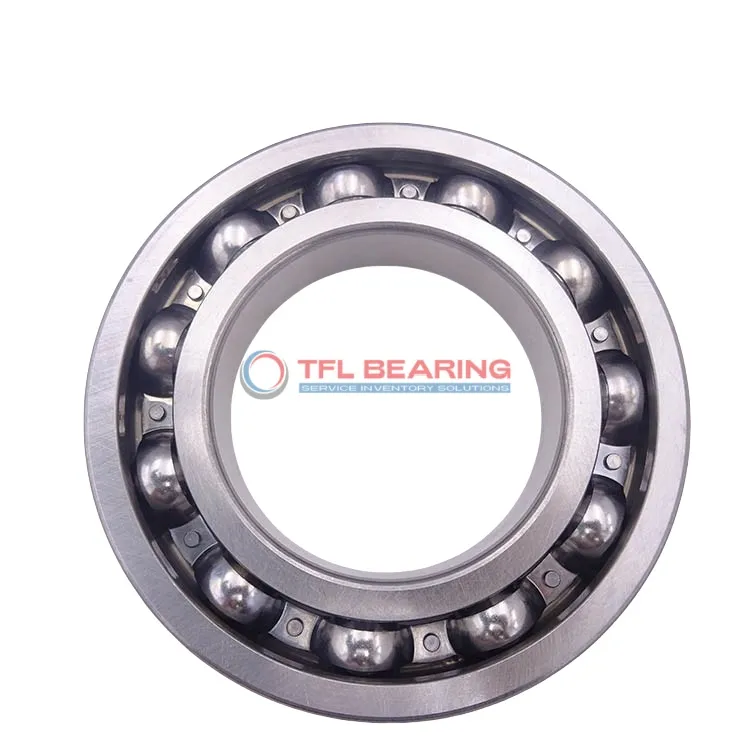

Single Row Deep Groove Ball Bearings 16022/W64

Single Row Deep Groove Ball Bearings 16022/W64

The 16022/W64 is a single-row deep groove ball bearing with a 110mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13601 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design and solid oil lubrication ensure easy maintenance and consistent performance. The bearing is built to work in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for applications like electric motors or pumps where radial loads are common.

Weighing 1300g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16022/W64
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Bore Dia 110 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 19 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Lubrication Soild Oil
  • ROHS Compliant
  • REACH Compliant
  • Temperature Range -30°to 120 °C
  • Dynamic Radial Load 13601 lbf
  • Static Radial Load 12814 lbf
  • Max Speed 3600 rpm
  • Weight 1300 g
  • price（$） 94.509
Single Row Deep Groove Ball Bearings 16022/W64 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16022/W64 Bearing

16022/W64 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 13601 lbf.
Its solid oil lubrication ensures smooth operation, reducing the need for frequent maintenance.

The single-row deep groove design enhances stability, making it suitable for various radial load applications.
With a maximum speed of 3,600 rpm, it provides reliable performance in different conditions.

16022/W64 Bearing operates efficiently within a temperature range of -30°C to 120°C.
Its chrome steel cage maintains ball alignment, contributing to extended service life.

The open seal type allows for easy inspection and maintenance when required.
This bearing is interchangeable with SKF models, offering flexibility in replacements.

Application

Common Applications of 16022/W64 Bearing
16022/W64 Bearing is widely used in industrial machinery, such as pumps and electric motors, where its radial load capacity ensures reliable performance. The solid oil lubrication reduces maintenance needs, making it suitable for continuous operation.

In automotive applications, 16022/W64 Bearing fits well in wheel hubs and transmission systems, thanks to its durable chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.

For automation equipment, 16022/W64 Bearing provides smooth operation in robotic arms and conveyor belts. The open seal design allows for easy inspection and lubrication, enhancing longevity.

In household appliances like washing machines, 16022/W64 Bearing offers quiet and efficient performance. Its temperature range makes it adaptable to both hot and cold environments.
