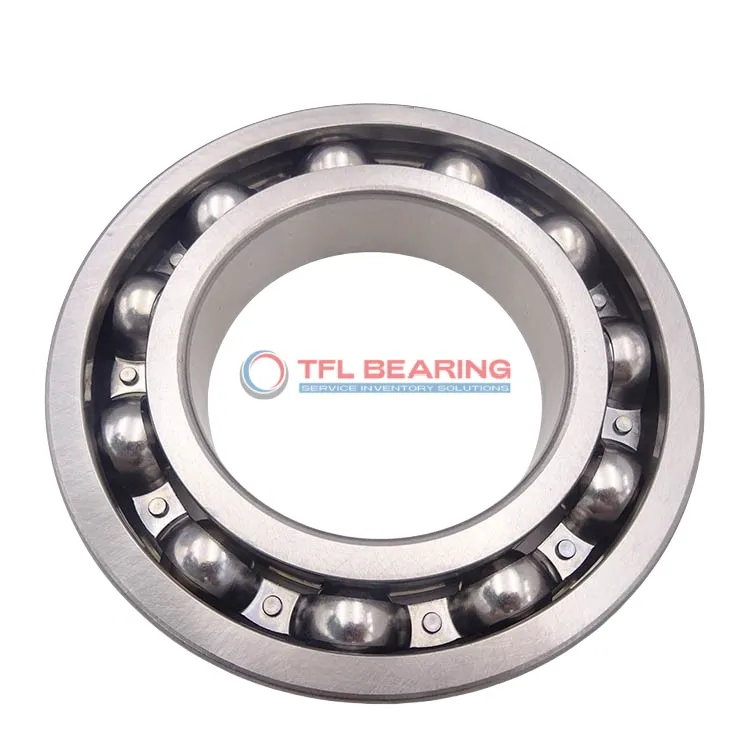

Single Row Deep Groove Ball Bearings 16021

Single Row Deep Groove Ball Bearings 16021

The 16021 is a single-row deep groove ball bearing with a 105mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11645 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design simplifies lubrication, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical option for replacements. Suitable for machinery and equipment where radial loads are common, such as motors or pumps.

Weighing 1000g, it balances strength and manageability. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 16021
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Tolerance Class ABEC-1
  • Radial Clearance Trade No CN
  • Bore Dia 105 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 160 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 18 mm
  • Width Tolerance -0.200mm to 0
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Lubrication Required
  • REACH Compliant
  • Temperature Range -30° to 110 °C
  • Dynamic Radial Load 11645 lbf
  • Static Radial Load 11375 lbf
  • Max Speed 3800 rpm
  • Weight 1000 g
  • price（$） 51.075
Single Row Deep Groove Ball Bearings 16021 dimension drawing
Download DWG Download PDF

Features

Performance Features of 16021 Bearing

16021 Bearing is crafted with chrome steel rings and balls, offering strong radial load capacity up to 11645 lbf.
Its stainless steel cage ensures smooth operation, reducing friction and wear.

The open design of 16021 Bearing allows for easy lubrication, maintaining performance in various conditions.
With a maximum speed of 3,800 rpm, it balances efficiency and durability.

16021 Bearing operates reliably within a temperature range of -30° to 110°C.
Its precision construction meets ABEC-1 tolerance standards, ensuring consistent performance.

The 16021 Bearing’s dimensions (105 mm×160 mm×18 mm) make it suitable for compact applications.
Its static radial load capacity of 11375 lbf ensures stability under heavy loads.

Application

Industrial Uses of 16021 Bearing
The 16021 Bearing is commonly used in industrial machinery like pumps and electric motors, where its deep groove design handles radial loads efficiently. Its open seal type simplifies lubrication, making maintenance straightforward in dusty environments.

In automotive applications, 16021 Bearing fits well in wheel hubs and alternators, providing reliable performance under constant rotation. The chrome steel construction ensures durability, even in demanding driving conditions.

For automation systems, 16021 Bearing supports conveyor rollers and robotic arms with smooth operation. The ABEC-1 tolerance class offers a balance of precision and affordability for general-purpose use.

Where Is 16021 Bearing Used?
You’ll often find 16021 Bearing in household appliances like washing machines, where its radial load capacity handles spinning drums effortlessly. The stainless steel cage resists corrosion from frequent exposure to water and detergents.

In light industrial settings, 16021 Bearing works well in gearboxes and small machinery. Its metric sizing makes it a versatile choice for equipment manufactured to international standards.

Built for Heavy-Duty Use: 16021 Bearing
The 16021 Bearing excels in agricultural equipment, such as tractors and harvesters, thanks to its high static radial load rating. Its wide temperature range ensures performance in both hot and cold operating conditions.

For construction tools like compactors, 16021 Bearing provides steady rotation under heavy vibrations. The chrome steel balls and rings maintain integrity even with prolonged use.

Automotive vs Aerospace: Applications of 16021 Bearing
In automotive systems, 16021 Bearing is ideal for transmissions, where its radial load capacity supports smooth gear shifts. The metric bore diameter fits standard shaft sizes in most vehicles.

For aerospace ground equipment, 16021 Bearing is used in maintenance tools and trolleys. Its lightweight design and compliance with RoHS standards make it suitable for sensitive environments.
