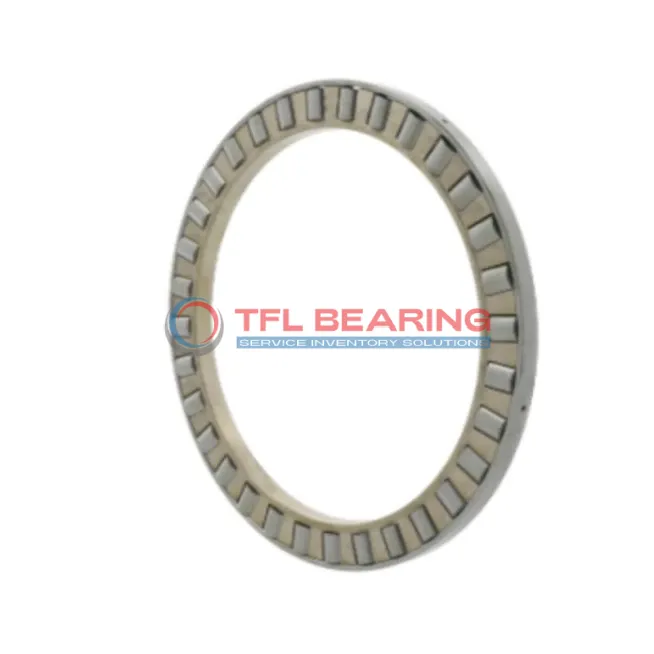

Single Row Cylindrical Roller Thrust Bearings assembly K 81236 M

Single Row Cylindrical Roller Thrust Bearings assembly K 81236 M

The K 81236 M is a single-row cylindrical roller thrust bearing, measuring 180mm by 250mm by 22mm. Made from chrome steel, it handles heavy thrust loads up to 123,750 lbf and operates smoothly at speeds up to 1100 RPM.

Its machined brass cage enhances durability and reduces friction, ensuring reliable performance. The bearing works in temperatures from -30°C to 110°C, making it suitable for various industrial environments.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for heavy machinery or equipment where high thrust loads are common, such as presses or gearboxes.

Weighing 3.67kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81236 M
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 180 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.82mm to -1.54mm
  • Diameter Roller 22 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 194 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 243 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 123750 lbf
  • Static Radial Load 540000 lbf
  • Max Speed 1100 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.67 kg
  • Shaft Washer WS 81236
  • Housing Washer GS 81236

Features

Performance Features of K 81236 M Bearing

K 81236 M Bearing is built with chrome steel rollers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 123,750 lbf, making it suitable for heavy-duty applications.

The machined brass cage ensures smooth operation and reduces wear over time.
With a maximum speed of 1,100 rpm, it maintains efficiency under demanding conditions.

K 81236 M Bearing operates in temperatures from -30° to 110°C, ensuring reliability in various environments.
Its precise dimensions (180 mm x 250 mm x 22 mm) allow for easy integration into existing systems.

Application

Industrial Uses of K 81236 M Bearing
K 81236 M Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The machined brass cage ensures smooth operation even under demanding conditions.

Where Is K 81236 M Bearing Used?
You’ll find K 81236 M Bearing in applications like wind turbine gearboxes, where its robust construction and high load capacity are essential. Its metric sizing makes it a reliable choice for European and Asian equipment manufacturers.

Built for Heavy-Duty Use: K 81236 M Bearing
K 81236 M Bearing excels in mining equipment, such as conveyor systems, thanks to its chrome steel rollers and durable brass cage. The wide temperature range also makes it suitable for harsh environments.

Automotive vs Aerospace: Applications of K 81236 M Bearing
In automotive systems, K 81236 M Bearing supports components like heavy-duty transmissions, while in aerospace, it’s used in landing gear mechanisms. Its high static load capacity ensures reliability in both sectors.

Perfect Fit for Automation: K 81236 M Bearing
K 81236 M Bearing is ideal for automated production lines, where precision and durability are key. The open design allows for easy lubrication, reducing maintenance downtime.
