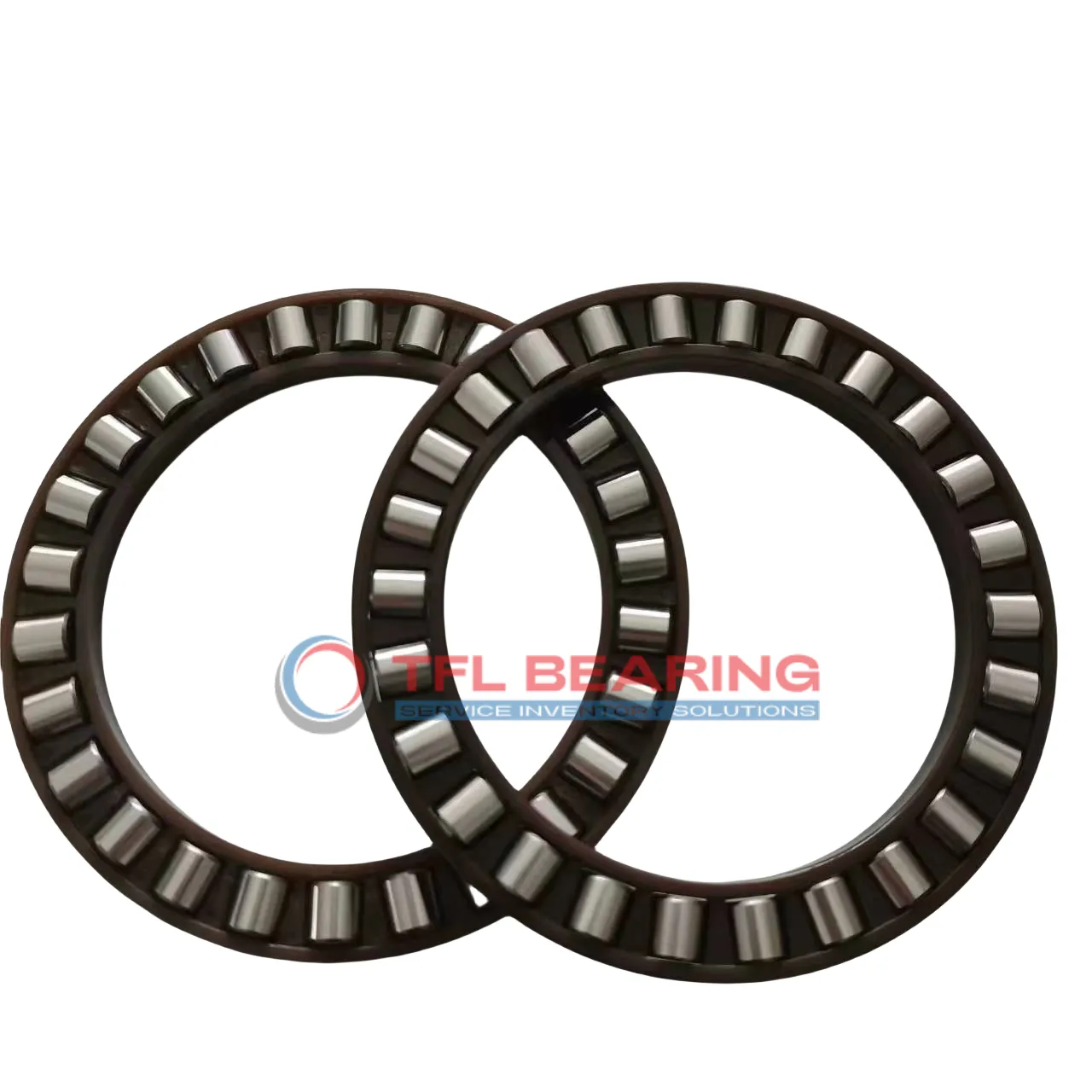

Single Row Cylindrical Roller Thrust Bearings assembly K 81214 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81214 TN

The K 81214 TN is a single-row cylindrical roller thrust bearing with a 70mm bore and 105mm outer diameter, built to handle heavy loads. It measures 11mm in width and weighs just 0.21kg, making it compact yet robust.

With a dynamic radial load capacity of 32850 lbf, it’s designed for demanding thrust applications. The bearing operates smoothly at speeds up to 2600 RPM and works in temperatures from -30°C to 110°C.

Its glass fibre reinforced PA66 cage ensures durability, while the chrome steel rollers provide reliable performance. The bearing is interchangeable with SKF models, offering a practical replacement option.

Ideal for industrial machinery or heavy equipment where high thrust loads are common, this bearing is both efficient and long-lasting. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81214 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 70 mm
  • Bore Dia Tolerance +0.06mm to +0.25mm
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.41mm to -0.95mm
  • Diameter Roller 11 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 74 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 102 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 32850 lbf
  • Static Radial Load 119250 lbf
  • Max Speed 2600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.21 kg
  • Shaft Washer WS 81214
  • Housing Washer GS 81214

Features

Why Choose K 81214 TN Bearing for Precision Tasks?

K 81214 TN Bearing features a single-row cylindrical roller design, ideal for handling high thrust loads with precision.
Its chrome steel rollers and glass fibre reinforced PA66 cage ensure durability and smooth operation under stress.

With a dynamic radial load capacity of 32,850 lbf, K 81214 TN Bearing excels in demanding applications.
The bearing maintains performance within a temperature range of -30° to 110°C, suitable for various environments.

K 81214 TN Bearing’s optimised design reduces friction, enhancing efficiency and extending service life.
Its compact size (70 mm x 105 mm x 11 mm) makes it easy to integrate into different machinery setups.

Application

Industrial Uses of K 81214 TN Bearing
K 81214 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures smooth operation even under demanding conditions.

What Makes K 81214 TN Bearing a Preferred Choice?
In automotive applications, K 81214 TN Bearing is ideal for transmissions and steering systems, thanks to its robust construction and high load capacity. Its metric sizing makes it a versatile option for various vehicle designs.

Built for Heavy-Duty Use: K 81214 TN Bearing
For industrial automation, K 81214 TN Bearing provides reliable performance in conveyor systems and robotic arms. The chrome steel rollers and reinforced cage offer durability in continuous operation environments.

Medical vs Industrial: Where K 81214 TN Bearing Excels
While K 81214 TN Bearing is not typically used in medical devices, it shines in industrial settings like machine tools and compressors. Its high static radial load capacity makes it suitable for heavy equipment.

Perfect Fit for Automation: K 81214 TN Bearing
In automated production lines, K 81214 TN Bearing ensures precise movement in components like linear actuators. The temperature range of -30° to 110 °C allows it to perform reliably in various climates.
