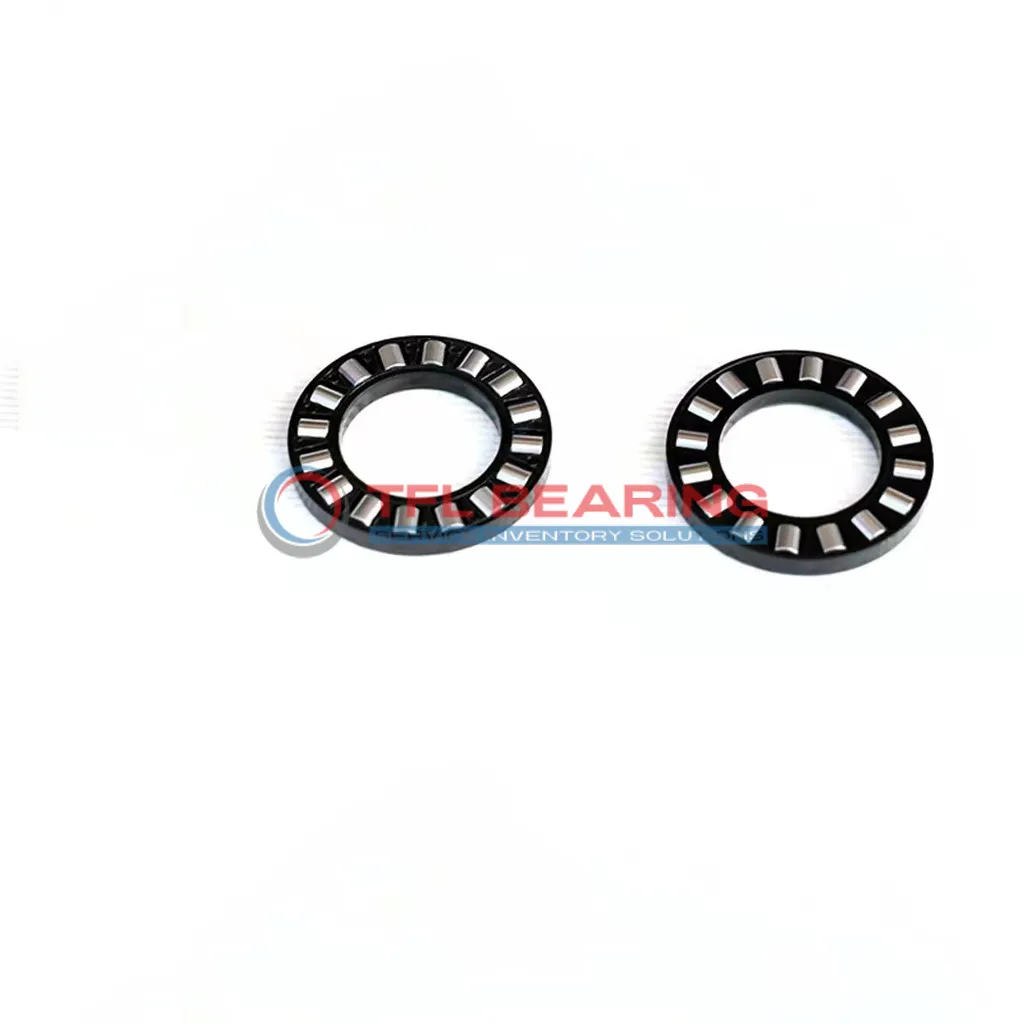

Single Row Cylindrical Roller Thrust Bearings assembly K 81212 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81212 TN

The K 81212 TN is a single-row cylindrical roller thrust bearing measuring 60mm by 95mm by 11mm, built from sturdy chrome steel for reliable performance. It handles heavy thrust loads up to 30825 lbf and spins smoothly at speeds up to 2800 RPM.

Its glass fibre reinforced PA66 cage ensures durability while reducing friction, making it efficient for high-load applications. The bearing operates well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for industrial machinery or heavy equipment where robust thrust load support is needed.

Weighing just 0.18kg, it’s lightweight yet strong, and complies with RoHS and REACH standards for safe use. The design includes separate shaft and housing washers for easy installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81212 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 60 mm
  • Bore Dia Tolerance +0.06mm to +0.25mm
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.38mm to -0.92mm
  • Diameter Roller 11 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 64 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 91 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 30825 lbf
  • Static Radial Load 104625 lbf
  • Max Speed 2800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.18 kg
  • Shaft Washer WS 81212
  • Housing Washer GS 81212

Features

How Does K 81212 TN Bearing Handle Heavy Thrust Loads?

K 81212 TN Bearing is built with chrome steel rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 30825 lbf, ensuring reliable performance in demanding applications.
The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 2800 rpm, it balances durability and efficiency in various conditions.

Application

Industrial Uses of K 81212 TN Bearing
K 81212 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and gearboxes, where high thrust loads are present. Its cylindrical roller design ensures efficient load distribution, reducing wear over time.

Where Is K 81212 TN Bearing Used?
In automotive applications, K 81212 TN Bearing supports components like steering systems and transmissions, handling axial loads with ease. The glass fibre reinforced cage adds durability, making it suitable for long-term use.

Built for Heavy-Duty Use: K 81212 TN Bearing
For automation equipment, K 81212 TN Bearing provides reliable performance in robotic arms and conveyor systems. Its metric sizing ensures compatibility with a variety of industrial machinery.

Automotive vs Aerospace: Applications of K 81212 TN Bearing
In automotive settings, K 81212 TN Bearing excels in clutch assemblies, while in aerospace, it’s used in auxiliary systems. The chrome steel rollers offer strength and resilience in both environments.

Essential Roles of K 81212 TN Bearing
K 81212 TN Bearing is vital in medical imaging devices, where precision and reliability are key. The PA66 cage material ensures smooth operation, even under continuous use.
