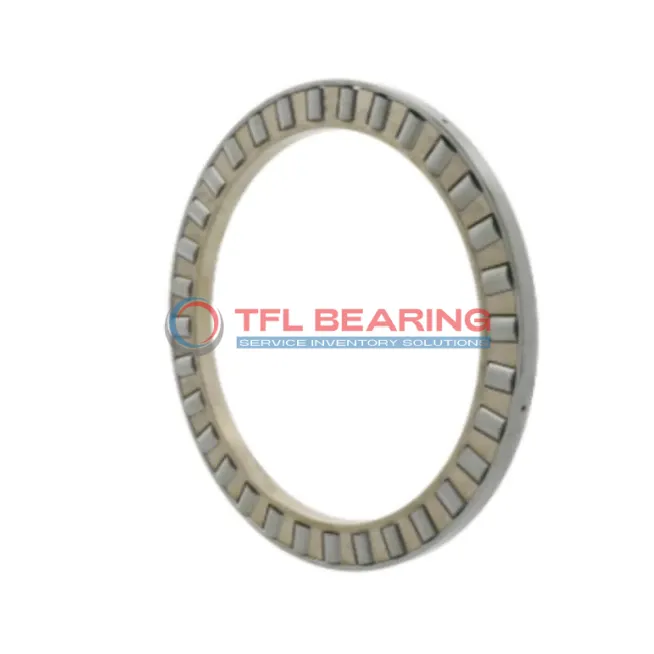

Single Row Cylindrical Roller Thrust Bearings assembly K 81152 M

Single Row Cylindrical Roller Thrust Bearings assembly K 81152 M

The K 81152 M is a single-row cylindrical roller thrust bearing with a 260mm bore and 320mm outer diameter, crafted from robust chrome steel. It handles heavy thrust loads up to 110250 lbf and operates smoothly at speeds up to 1100 RPM.

Its machined brass cage ensures durability and reduces friction, while the precise tolerances provide reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or construction equipment where high thrust loads are common.

Weighing 3.55kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The bearing includes shaft washer WS 81152 and housing washer GS 81152 for easy installation. Its cylindrical rollers offer excellent load distribution, ensuring long service life.

Perfect for scenarios requiring reliable thrust support, such as gearboxes or large rotating equipment. The open design allows for straightforward maintenance and inspection.

With a raceway diameter ranging from 268mm to 316mm, it provides consistent performance under varying loads. The chrome steel rollers and brass cage combination ensures smooth operation even under stress.

Suitable for both new installations and replacements, this bearing is a dependable choice for engineers and maintenance teams. Its robust construction makes it a go-to solution for demanding industrial environments.

The K 81152 M is designed to withstand harsh conditions while maintaining efficiency. Its compatibility with SKF parts adds to its versatility and ease of sourcing.

A reliable option for applications needing high load capacity and durability. The bearing’s design ensures minimal wear and tear over time, reducing downtime and maintenance costs.

Engineers will appreciate its precision and performance, while maintenance teams will find it easy to install and service. A solid choice for any heavy-load thrust application.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81152 M
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 260 mm
  • Bore Dia Tolerance +0.11mm to +0.43mm
  • Outer Dia 320 mm
  • Outer Dia Tolerance -1.20mm to -2.09mm
  • Diameter Roller 18 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 268 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 316 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 110250 lbf
  • Static Radial Load 585000 lbf
  • Max Speed 1100 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.55 kg
  • Shaft Washer WS 81152
  • Housing Washer GS 81152

Features

How Does K 81152 M Bearing Handle Heavy Thrust Loads?

K 81152 M Bearing is built with chrome steel rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 110250 lbf, ensuring reliable performance in demanding applications.
The machined brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 1100 rpm, it balances durability and efficiency in industrial settings.

Application

Industrial Uses of K 81152 M Bearing
K 81152 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The machined brass cage ensures smooth operation even under demanding conditions.

Where Is K 81152 M Bearing Used?
In construction equipment, K 81152 M Bearing supports components like crane slewing rings, providing reliable performance in rugged environments. Its metric sizing makes it a versatile choice for various industrial applications.

Built for Heavy-Duty Use: K 81152 M Bearing
K 81152 M Bearing excels in applications like wind turbine pitch systems, where its chrome steel rollers and brass cage withstand extreme loads. The wide temperature range also makes it suitable for diverse climates.

Automotive vs Aerospace: Applications of K 81152 M Bearing
In automotive systems, K 81152 M Bearing is found in heavy-duty transmissions, ensuring durability under high thrust. For aerospace, its precision and load capacity make it ideal for landing gear mechanisms.

Perfect Fit for Automation: K 81152 M Bearing
K 81152 M Bearing is a reliable choice for automated production lines, where its consistent performance reduces downtime. The open design allows for easy lubrication, extending its service life.
