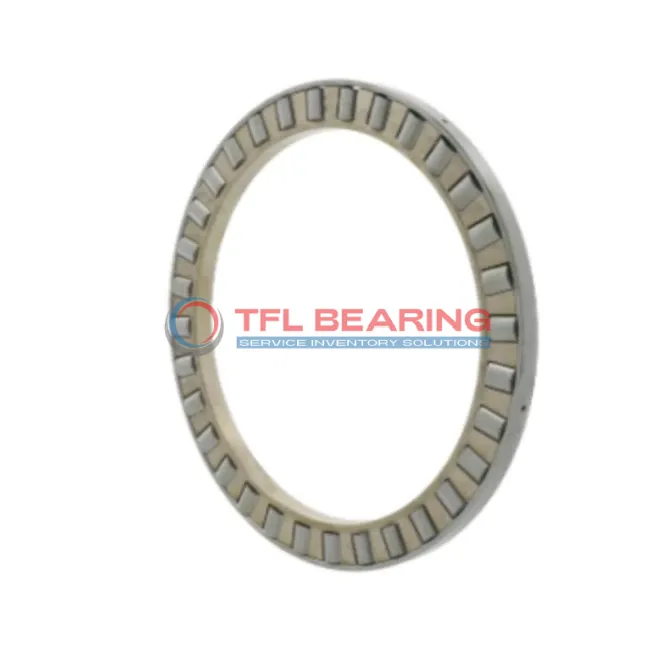

Single Row Cylindrical Roller Thrust Bearings assembly K 81136 M

Single Row Cylindrical Roller Thrust Bearings assembly K 81136 M

The K 81136 M is a single-row cylindrical roller thrust bearing with a 180mm bore and 225mm outer diameter, crafted from sturdy chrome steel. It handles heavy thrust loads up to 60750 lbf and operates smoothly at speeds up to 1500 RPM.

Its machined brass cage ensures durability and reduces friction, while the precise tolerances provide reliable performance. The bearing works in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gear systems where high thrust loads are common.

Weighing 1.46kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81136 M
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 180 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.74mm to -1.46mm
  • Diameter Roller 14 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 185 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 219 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 60750 lbf
  • Static Radial Load 285750 lbf
  • Max Speed 1500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.46 kg
  • Shaft Washer WS 81136
  • Housing Washer GS 81136

Features

Performance Features of K 81136 M Bearing

K 81136 M Bearing is built with chrome steel rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 60,750 lbf, ensuring reliable performance in demanding applications.

The machined brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 1,500 rpm, it balances durability and efficiency in various conditions.

K 81136 M Bearing operates smoothly within a temperature range of -30° to 110°C.
Its precise dimensions and tolerances ensure easy installation and consistent performance.

Application

Industrial Uses of K 81136 M Bearing
K 81136 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The machined brass cage ensures smooth operation even under demanding conditions.

What Makes K 81136 M Bearing a Preferred Choice?
In automotive applications, K 81136 M Bearing is ideal for transmissions and differential systems, thanks to its robust construction and precise load distribution. Its metric sizing makes it a reliable fit for various vehicle designs.

Built for Heavy-Duty Use: K 81136 M Bearing
For industrial automation, K 81136 M Bearing supports robotic arms and conveyor systems, where its durability and high-speed capability are essential. The chrome steel rollers provide long-lasting performance in continuous operation.

Medical vs Industrial: Where K 81136 M Bearing Excels
While K 81136 M Bearing isn’t typically used in medical devices, it shines in industrial settings like mining equipment and construction machinery. Its high static radial load capacity makes it suitable for extreme environments.
