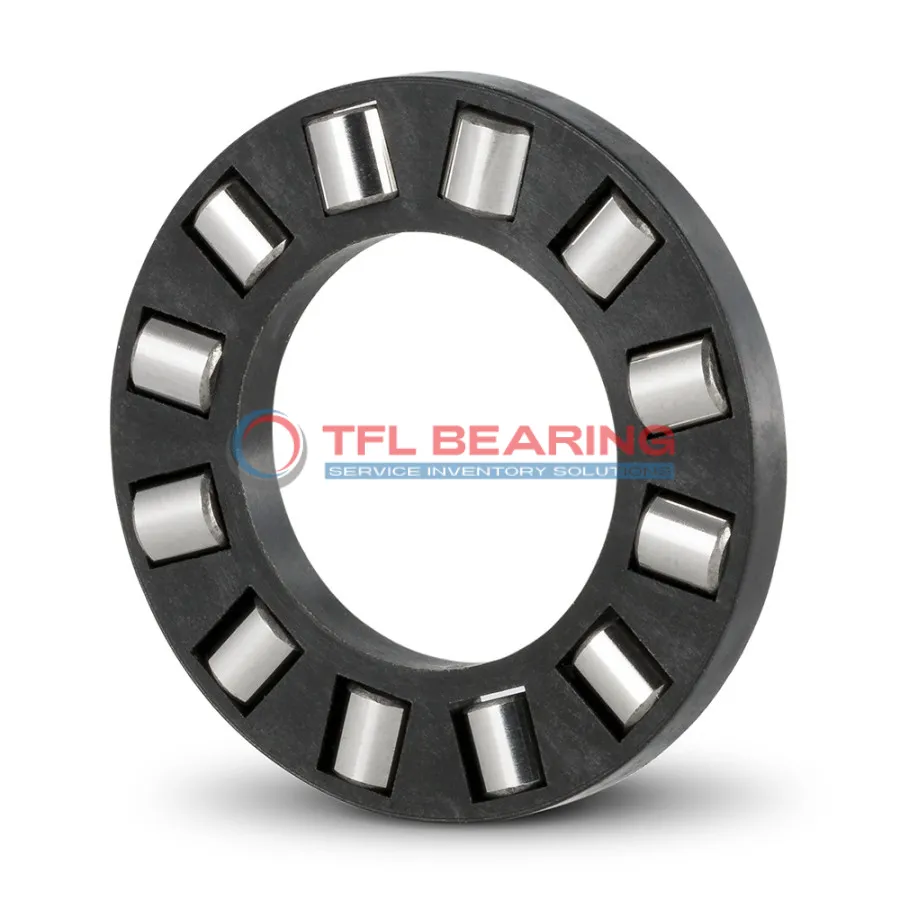

Single Row Cylindrical Roller Thrust Bearings assembly K 81132 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81132 TN

The K 81132 TN is a single-row cylindrical roller thrust bearing with a 160mm bore and 200mm outer diameter, designed for heavy thrust loads. Its compact 12mm width makes it suitable for tight spaces while maintaining strength.

Made from chrome steel rollers and a glass fibre reinforced PA66 cage, it handles dynamic radial loads up to 48600 lbf and static loads of 229500 lbf. It operates smoothly at speeds up to 1700 RPM.

The bearing’s robust design includes universal washers (LS 160200) for easy installation. It performs reliably in temperatures from -30°C to 110°C and complies with RoHS and REACH standards.

Ideal for industrial machinery like presses or gearboxes, where high thrust loads are common. Weighing 0.44kg, it’s a durable yet lightweight solution for demanding applications. Interchangeable with SKF bearings for convenient replacements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81132 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 160 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.66mm to -1.38mm
  • Diameter Roller 12 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 165 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 195 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 229500 lbf
  • Max Speed 1700 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.44 kg
  • Shaft Washer WS 81132
  • Housing Washer GS 81132
  • Universal Washer LS 160200

Features

Performance Features of K 81132 TN Bearing

K 81132 TN Bearing is built with chrome steel rollers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 48,600 lbf, making it suitable for heavy-duty applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces wear.
With a maximum speed of 1,700 rpm, it balances performance and durability.

K 81132 TN Bearing operates in temperatures from -30° to 110°C, adapting to various environments.
Its precise dimensions (160 mm x 200 mm x 12 mm) ensure compatibility with standard systems.

Application

Industrial Uses of K 81132 TN Bearing
K 81132 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures durability even in demanding environments.

Where Is K 81132 TN Bearing Used?
In automotive applications, K 81132 TN Bearing supports components like clutch assemblies and transmission systems, providing reliable performance under high stress. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81132 TN Bearing
For automation systems, K 81132 TN Bearing is ideal for robotic arms and conveyor belts, thanks to its ability to manage axial loads with precision. The chrome steel rollers enhance its longevity in continuous operation.

Medical vs Industrial: Where K 81132 TN Bearing Excels
While K 81132 TN Bearing is robust enough for industrial presses, its precision also suits medical imaging devices requiring stable, low-friction movement. The temperature range ensures performance in diverse conditions.

Practical Applications of K 81132 TN Bearing
In consumer electronics, K 81132 TN Bearing can be found in high-performance printers and industrial fans, where its thrust load capacity and smooth operation are key. The lightweight design adds to its versatility.
