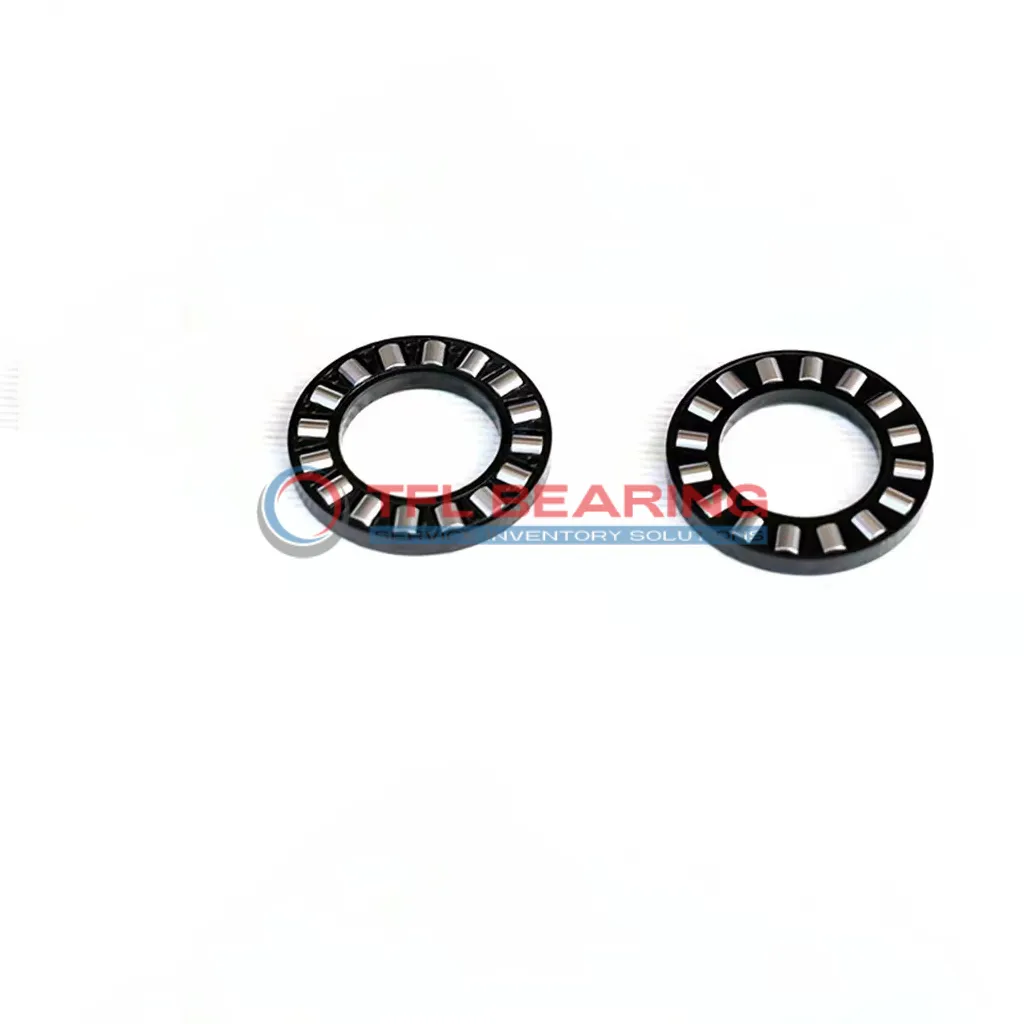

Single Row Cylindrical Roller Thrust Bearings assembly K 81117 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81117 TN

The K 81117 TN is a single-row cylindrical roller thrust bearing measuring 85mm by 110mm by 7.5mm, built from sturdy chrome steel for reliable performance. It handles heavy thrust loads up to 19800 lbf and runs smoothly at speeds up to 3000 RPM.

Its glass fibre reinforced PA66 cage ensures durability while keeping the bearing lightweight at just 0.12kg. The design includes separate shaft and housing washers for easy installation and maintenance.

This bearing works well in temperatures from -30°C to 110°C, making it suitable for various industrial environments. It’s interchangeable with SKF bearings, offering a practical replacement option.

Ideal for applications like heavy machinery or gear systems where high thrust loads are common. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81117 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 85 mm
  • Bore Dia Tolerance +0.072mm to +0.292mm
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.41mm to -0.95mm
  • Diameter Roller 7.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 87 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 108 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 19800 lbf
  • Static Radial Load 82125 lbf
  • Max Speed 3000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.12 kg
  • Shaft Washer WS 81117
  • Housing Washer GS 81117
  • Universal Washer LS 85110

Features

Performance Features of K 81117 TN Bearing

K 81117 TN Bearing is built with chrome steel rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 19,800 lbf, ensuring reliable performance in demanding conditions.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in various applications.

K 81117 TN Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its precise dimensions (85 mm x 110 mm x 7.5 mm) ensure easy integration into existing systems.

The bearing’s robust design minimises maintenance needs, reducing operational costs.
Its interchangeable nature with SKF bearings makes it a versatile choice for many users.

Application

Industrial Uses of K 81117 TN Bearing
K 81117 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures smooth operation even at speeds up to 3000 rpm.

Where Is K 81117 TN Bearing Used?
In automotive applications, K 81117 TN Bearing supports components like clutch assemblies and transmission systems, thanks to its durable chrome steel rollers. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81117 TN Bearing
K 81117 TN Bearing excels in industrial settings, such as conveyor systems, where its high static radial load capacity of 82125 lbf ensures reliability. The temperature range of -30° to 110 °C makes it suitable for diverse environments.

Automotive vs Aerospace: Applications of K 81117 TN Bearing
While K 81117 TN Bearing is popular in automotive transmissions, its precision also makes it useful in aerospace landing gear systems. The bearing’s lightweight design and high dynamic radial load capacity of 19800 lbf are key advantages.

Perfect Fit for Automation: K 81117 TN Bearing
K 81117 TN Bearing is ideal for robotic arms and automated assembly lines, where its low friction and high-speed capabilities enhance performance. The reinforced PA66 cage adds durability in continuous operation scenarios.
