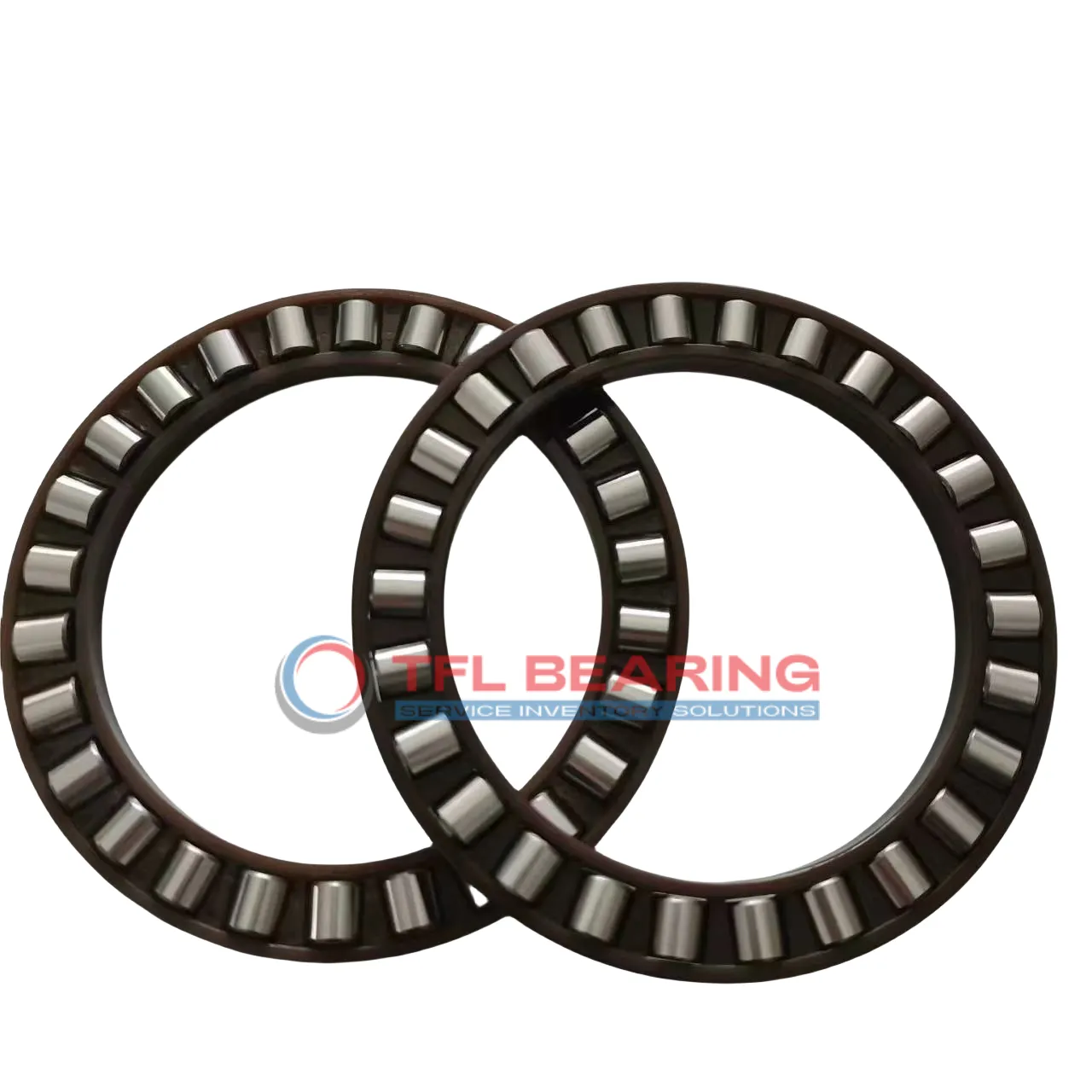

Single Row Cylindrical Roller Thrust Bearings assembly K 81116 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81116 TN

The K 81116 TN is a single row cylindrical roller thrust bearing with an 80mm bore and 105mm outer diameter, designed for handling heavy thrust loads. Its compact 7.5mm width makes it suitable for tight spaces.

Built with chrome steel rollers and a durable PA66 cage, it offers reliable performance under dynamic loads up to 18338 lbf. It operates smoothly at speeds up to 3000 RPM.

The bearing’s reinforced cage ensures stability, while its universal washer design simplifies installation. It works in temperatures from -30°C to 110°C.

Ideal for industrial machinery or gear systems where high thrust loads are common. Compliant with RoHS and REACH standards, it’s a practical choice for replacements, especially as it’s interchangeable with SKF models. Weighing just 0.095kg, it’s lightweight yet robust.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81116 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 80 mm
  • Bore Dia Tolerance +0.06mm to +0.25mm
  • Outer Dia 105 mm
  • Outer Dia Tolerance -0.41mm to -0.95mm
  • Diameter Roller 7.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 83 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 102 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 18338 lbf
  • Static Radial Load 75375 lbf
  • Max Speed 3000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.095 kg
  • Shaft Washer WS 81116
  • Housing Washer GS 81116
  • Universal Washer LS 80105

Features

Performance Features of K 81116 TN Bearing

K 81116 TN Bearing is built with chrome steel rollers, offering strong resistance to high thrust loads.
Its dynamic radial load capacity reaches 18338 lbf, ensuring reliable performance in demanding conditions.

The glass fibre reinforced PA66 cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 3000 rpm, it balances durability and efficiency for various applications.

K 81116 TN Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its precise tolerances and robust design make it suitable for heavy-duty machinery.

The bearing’s compact size (80 mm x 105 mm x 7.5 mm) allows for easy integration into existing systems.
Its interchangeable design with SKF bearings ensures compatibility and convenience.

Application

Industrial Uses of K 81116 TN Bearing
K 81116 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and industrial gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced PA66 cage ensures durability even in demanding conditions.

Where Is K 81116 TN Bearing Used?
In automotive applications, K 81116 TN Bearing supports components like clutch assemblies and transmission systems, providing reliable performance under high-speed conditions. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 81116 TN Bearing
K 81116 TN Bearing excels in construction equipment, such as cranes and excavators, where its robust design withstands extreme loads. The chrome steel rollers enhance longevity, making it a dependable option for tough environments.

Automotive vs Aerospace: Applications of K 81116 TN Bearing
While K 81116 TN Bearing is popular in automotive transmissions, it also finds use in aerospace landing gear systems, where precision and reliability are critical. Its temperature range and load capacity make it suitable for both industries.

Practical Applications of K 81116 TN Bearing
In automation systems, K 81116 TN Bearing is ideal for robotic arms and conveyor belts, offering smooth operation under repetitive motion. The lightweight design and high-speed capability further enhance its suitability for automated processes.
