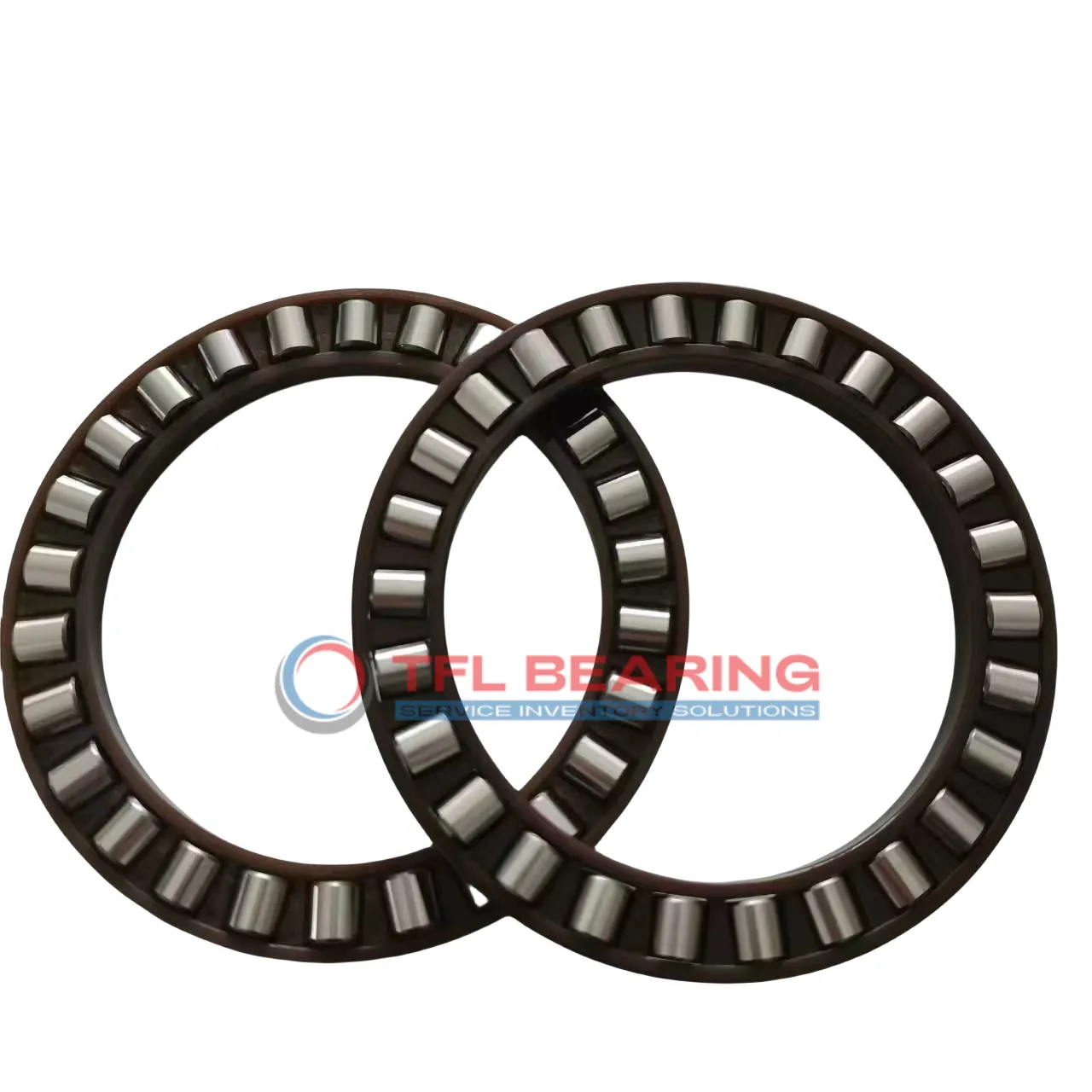

Single Row Cylindrical Roller Thrust Bearings assembly K 81115 TN

Single Row Cylindrical Roller Thrust Bearings assembly K 81115 TN

The K 81115 TN is a single-row cylindrical roller thrust bearing with a compact size of 75mm x 100mm x 7.5mm, designed for handling thrust loads. Made from chrome steel rollers and a durable glass fibre reinforced PA66 cage, it offers reliable performance.

It can handle dynamic radial loads up to 18675 lbf and static radial loads up to 75375 lbf, with a maximum speed of 3200 RPM. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

Its design includes a shaft washer (WS 81115) and housing washer (GS 81115), ensuring stable operation under heavy loads. The universal washer (LS 75100) adds versatility for various mounting setups.

Ideal for applications like industrial machinery or automotive systems where high thrust loads are common. Weighing just 0.096kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 81115 TN
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 75 mm
  • Bore Dia Tolerance +0.06mm to +0.25mm
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.38mm to -0.92mm
  • Diameter Roller 7.5 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 78 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 97 mm
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 18675 lbf
  • Static Radial Load 75375 lbf
  • Max Speed 3200 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.096 kg
  • Shaft Washer WS 81115
  • Housing Washer GS 81115
  • Universal Washer LS 75100

Features

Performance Features of K 81115 TN Bearing

K 81115 TN Bearing is built with chrome steel rollers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 18675 lbf, making it suitable for heavy-duty applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces wear.
With a maximum speed of 3200 rpm, it maintains performance under demanding conditions.

K 81115 TN Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its precise dimensions (75 mm x 100 mm x 7.5 mm) ensure compatibility with various machinery.

The bearing’s design includes a shaft washer (WS 81115) and housing washer (GS 81115) for easy installation.
This reduces maintenance needs and extends the service life of the bearing.

Application

Industrial Uses of K 81115 TN Bearing
K 81115 TN Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced PA66 cage ensures smooth operation even at high speeds.

What Makes K 81115 TN Bearing a Preferred Choice?
In automotive applications, K 81115 TN Bearing is ideal for clutch mechanisms and transmission systems, thanks to its durable chrome steel rollers. Its metric sizing makes it a versatile fit for various vehicle designs.

Built for Heavy-Duty Use: K 81115 TN Bearing
For automation equipment, K 81115 TN Bearing provides reliable performance in robotic arms and conveyor systems. The reinforced cage material offers excellent resistance to wear and tear in continuous operation.

Medical vs Industrial: Where K 81115 TN Bearing Excels
While K 81115 TN Bearing isn’t typically used in medical devices, it shines in industrial settings like pump systems and compressors. Its high static radial load capacity makes it suitable for demanding environments.

Where Is K 81115 TN Bearing Used?
In consumer electronics, K 81115 TN Bearing can be found in high-performance printers and industrial fans. Its temperature range and RoHS compliance ensure safe and efficient operation in various conditions.
