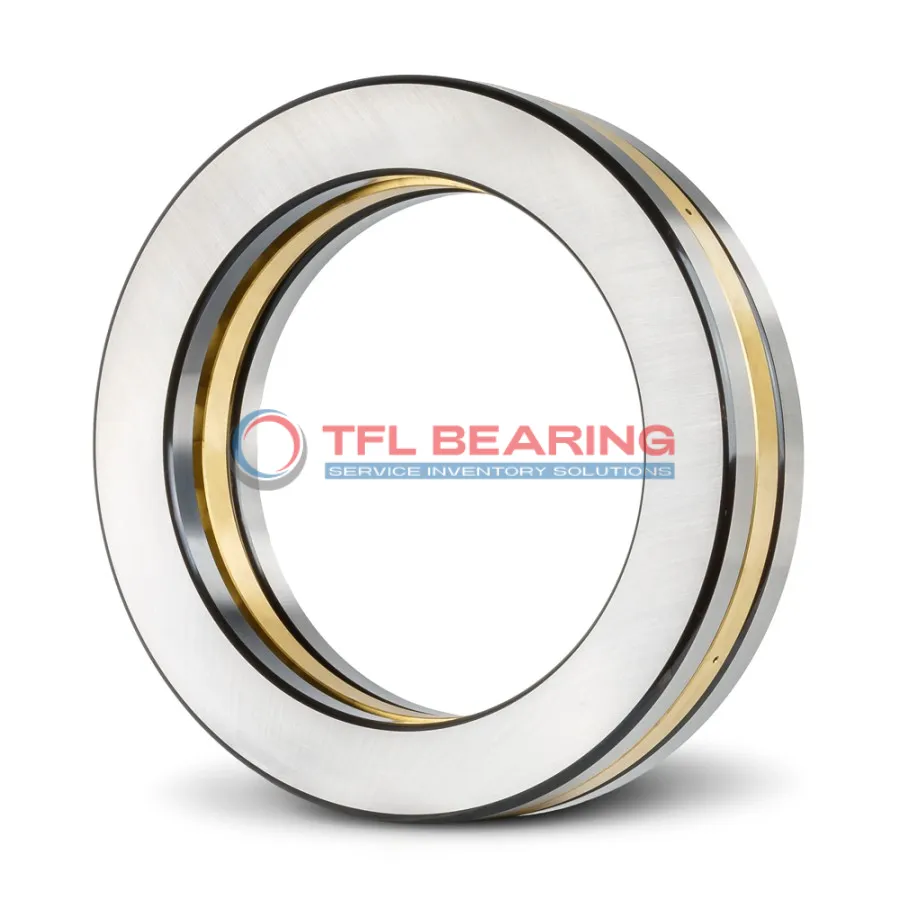

Single Row Cylindrical Roller Thrust Bearings 81276 M

Single Row Cylindrical Roller Thrust Bearings 81276 M

The 81276 M is a single-row cylindrical roller thrust bearing with a 380mm bore and 520mm outer diameter, built to handle heavy loads. Made from chrome steel, it supports dynamic radial loads up to 468000 lbf and operates smoothly at speeds up to 500 RPM.

Its machined brass cage ensures durability and reduces friction, while the precise tolerances (-0.040mm to 0 for bore) guarantee a secure fit. The bearing works reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery, industrial equipment, or applications where high thrust loads are common.

Weighing 75kg, it’s a robust component designed for long-term performance. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81276 M
  • size 380 mm x 520 mm x 112 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.040mm to 0
  • Outer Dia 520 mm
  • Outer Dia Tolerance -0.050mm to 0
  • Width 112 mm
  • Height Tolerance -0.50mm to +0.04mm
  • Outside Diameter Shaft Washer 515 mm
  • Bore Diameter Housing Washer 385 mm
  • Height Shaft Washer 33.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 4 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 468000 lbf
  • Static Radial Load 2250000 lbf
  • Max Speed 500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 75 kg
  • Shaft Washer IW-81276
  • Housing Washer OW-81276
Single Row Cylindrical Roller Thrust Bearings 81276 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 81276 M Bearing

81276 M Bearing is built with chrome steel washers and rollers, offering robust resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 468,000 lbf, making it suitable for demanding industrial applications.

The machined brass cage ensures precise roller alignment, enhancing durability and reducing friction.
With a maximum speed of 500 rpm, it delivers reliable performance under high-stress conditions.

81276 M Bearing operates efficiently in temperatures ranging from -30° to 110°C, adapting to various environments.
Its large bore diameter of 380 mm accommodates heavy-duty machinery, ensuring stability and longevity.

Application

Industrial Uses of 81276 M Bearing
81276 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its cylindrical roller design handles high thrust loads efficiently. The machined brass cage ensures smooth operation even under demanding conditions.

What Makes 81276 M Bearing a Preferred Choice?
In wind turbine applications, 81276 M Bearing’s robust construction and high load capacity make it ideal for supporting rotor shafts. Its chrome steel rollers provide durability in harsh outdoor environments.

Built for Heavy-Duty Use: 81276 M Bearing
81276 M Bearing excels in mining equipment, where its large bore diameter and width accommodate substantial axial forces. The precise tolerances ensure reliable performance in critical operations.

Automotive vs Aerospace: Applications of 81276 M Bearing
While 81276 M Bearing is too large for most automotive uses, it finds niche applications in aerospace landing gear systems. Its high static load capacity makes it suitable for supporting heavy structures during landing.

Practical Applications of 81276 M Bearing
In steel mills, 81276 M Bearing’s ability to withstand extreme loads and temperatures keeps rolling mills running smoothly. The metric sizing simplifies integration with European and Asian machinery standards.
