Single Row Cylindrical Roller Thrust Bearings 81236 M

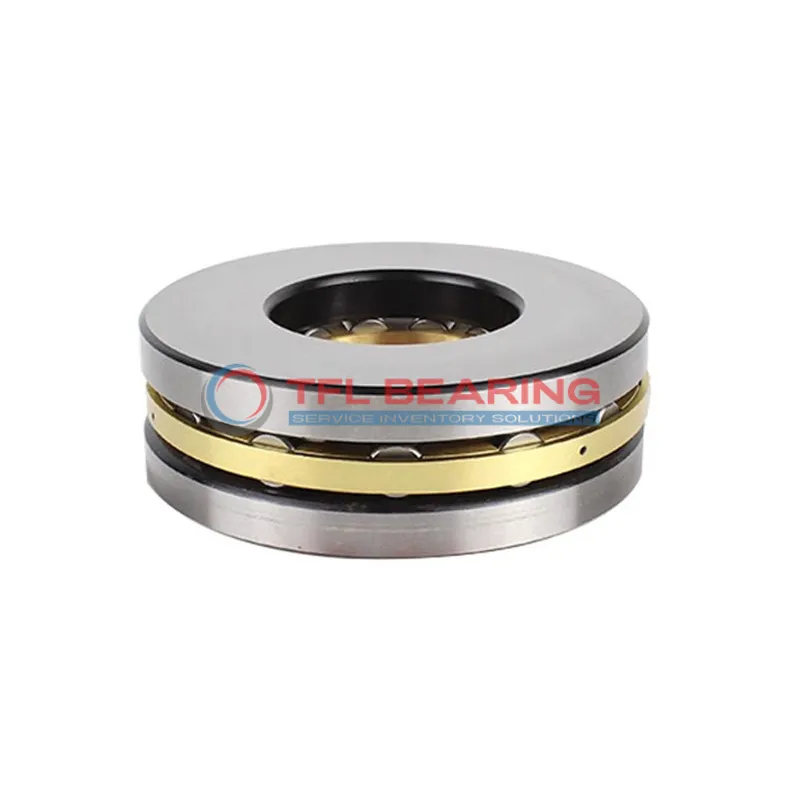

Single Row Cylindrical Roller Thrust Bearings 81236 M

The 81236 M is a single-row cylindrical roller thrust bearing, measuring 180mm by 250mm by 56mm, crafted from sturdy chrome steel. It handles heavy thrust loads up to 123,750 lbf and operates smoothly at speeds up to 1100 RPM.

Its machined brass cage enhances durability, while the precise tolerances ensure reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high thrust loads are expected.

Weighing 9.93kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81236 M
  • size 180 mm x 250 mm x 56 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 250 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 56 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 247 mm
  • Bore Diameter Housing Washer 183 mm
  • Height Shaft Washer 17 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1.5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 123750 lbf
  • Static Radial Load 540000 lbf
  • Max Speed 1100 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.93 kg
  • Roller And Cage Thrust Assembly K 81236 M
  • Shaft Washer WS 81236
  • Housing Washer GS 81236
Single Row Cylindrical Roller Thrust Bearings 81236 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 81236 M Bearing

81236 M Bearing is built with chrome steel washers and rollers, offering strong resistance to heavy thrust loads.
Its dynamic radial load capacity reaches 123750 lbf, ensuring reliable performance in demanding industrial applications.

The machined brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 1100 rpm, it balances durability and efficiency in high-load scenarios.

81236 M Bearing operates smoothly in temperatures ranging from -30° to 110°C, suitable for various environments.
Its precise tolerances and robust construction make it a dependable choice for thrust applications.

Application

Industrial Uses of 81236 M Bearing
81236 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The machined brass cage ensures smooth operation even under demanding conditions.

What Makes 81236 M Bearing a Preferred Choice?
With a bore diameter of 180mm, 81236 M Bearing fits well in industrial applications like mining equipment and construction machinery. Its chrome steel construction offers durability, making it reliable for long-term use.

Built for Heavy-Duty Use: 81236 M Bearing
81236 M Bearing excels in applications like wind turbines and marine propulsion systems, where its high static radial load capacity is essential. The metric sizing ensures compatibility with a wide range of European machinery.

Automotive vs Aerospace: Applications of 81236 M Bearing
In automotive systems, 81236 M Bearing supports components like heavy-duty transmissions, while in aerospace, it’s used in landing gear mechanisms. Its temperature range of -30° to 110°C makes it versatile for various environments.

Where Is 81236 M Bearing Used?
You’ll find 81236 M Bearing in industrial fans and large pumps, where its high dynamic radial load capacity ensures consistent performance. The open design allows for easy lubrication and maintenance.
