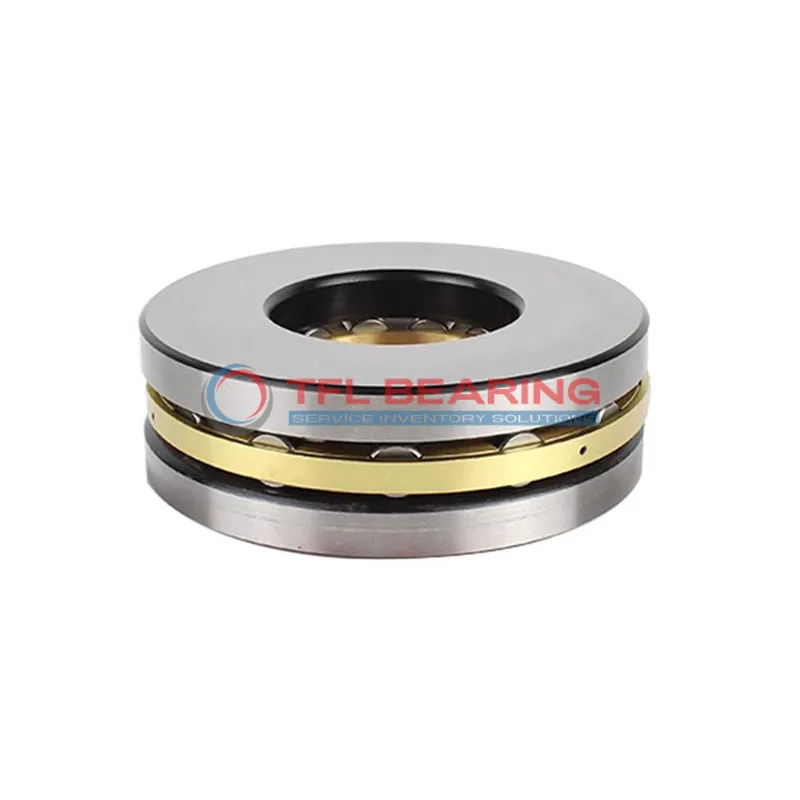

Single Row Cylindrical Roller Thrust Bearings 81232 M

Single Row Cylindrical Roller Thrust Bearings 81232 M

The 81232 M is a single-row cylindrical roller thrust bearing with a 160mm bore and 225mm outer diameter, built from sturdy chrome steel. It manages heavy thrust loads up to 108000 lbf and operates smoothly at speeds up to 1200 RPM.

Its machined brass cage enhances durability, while the precise tolerances ensure reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or large machinery where high thrust loads are expected.

Weighing 7.61kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81232 M
  • size 160 mm x 225 mm x 51 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 51 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 222 mm
  • Bore Diameter Housing Washer 163 mm
  • Height Shaft Washer 15 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1.5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 108000 lbf
  • Static Radial Load 450000 lbf
  • Max Speed 1200 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.61 kg
  • Roller And Cage Thrust Assembly K 81232 M
  • Shaft Washer WS 81232
  • Housing Washer GS 81232
Single Row Cylindrical Roller Thrust Bearings 81232 M dimension drawing
Download DWG Download PDF

Features

How Does 81232 M Bearing Handle Heavy Loads?

81232 M Bearing features chrome steel washers and rollers, offering robust resistance to high thrust loads.
Its dynamic radial load capacity reaches 108,000 lbf, making it suitable for heavy-duty applications.
The machined brass cage ensures precise roller alignment, enhancing durability and reducing wear.
With a maximum speed of 1,200 rpm, it delivers reliable performance under demanding conditions.

Structural Advantages of 81232 M Bearing

81232 M Bearing is designed with a single-row cylindrical roller configuration, optimised for thrust load handling.
The chrome steel construction provides excellent strength and resistance to wear.
Its precise tolerances ensure smooth operation, even under high radial loads.
The machined brass cage adds stability, prolonging the bearing’s service life.

Why Choose 81232 M Bearing for Precision Tasks?

81232 M Bearing’s chrome steel rollers and washers ensure accurate load distribution in thrust applications.
Its tight tolerances and machined brass cage contribute to smooth and precise operation.
The bearing’s high static radial load capacity of 450,000 lbf makes it ideal for demanding environments.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.

Application

Industrial Uses of 81232 M Bearing
81232 M Bearing is commonly used in heavy machinery like industrial presses and hydraulic systems, where its cylindrical roller design efficiently handles high thrust loads. The machined brass cage ensures smooth operation even under demanding conditions.

Where Is 81232 M Bearing Used?
In automotive applications, 81232 M Bearing supports components such as gearboxes and steering systems, thanks to its robust chrome steel construction. Its precise tolerances make it ideal for high-performance vehicles.

Built for Heavy-Duty Use: 81232 M Bearing
For construction equipment, 81232 M Bearing provides reliable performance in cranes and excavators, where durability is key. The wide temperature range allows it to function in various environmental conditions.

Automotive vs Aerospace: Applications of 81232 M Bearing
While 81232 M Bearing excels in automotive transmissions, it’s also found in aerospace landing gear systems due to its high static load capacity. The metric sizing ensures compatibility with international standards.

Key Fields for 81232 M Bearing
In renewable energy, 81232 M Bearing is used in wind turbine pitch control systems, where its dynamic load rating ensures long service life. The open design simplifies maintenance in remote locations.
