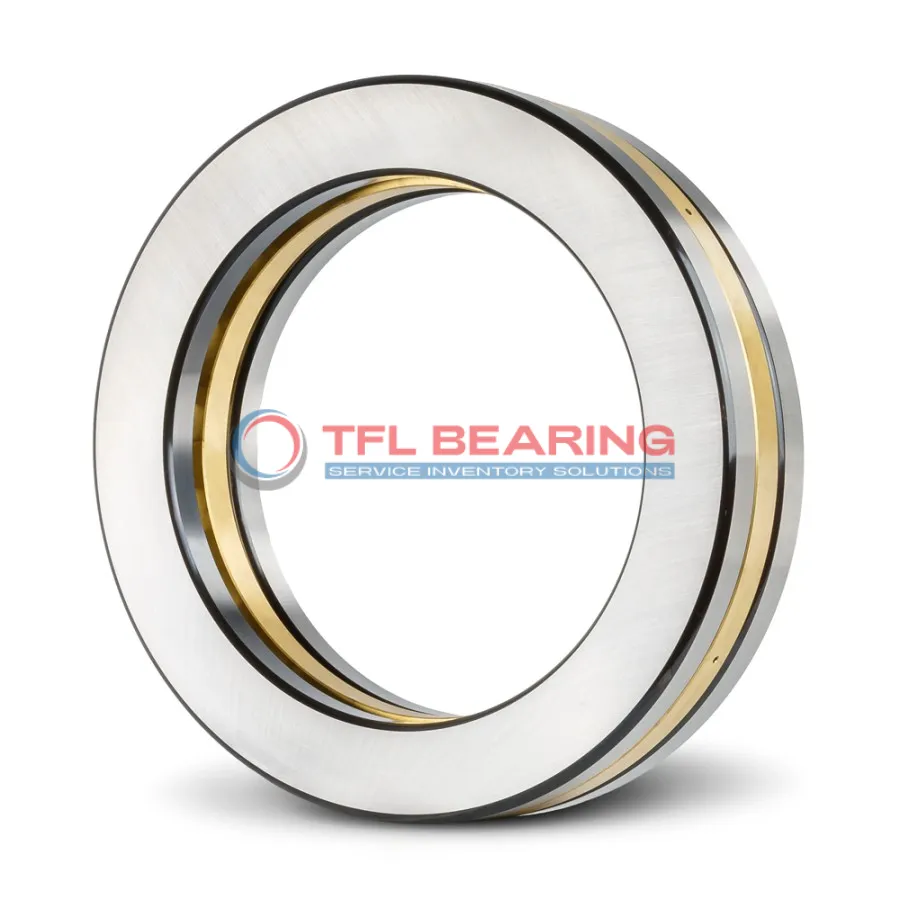

Single Row Cylindrical Roller Thrust Bearings 81230 M

Single Row Cylindrical Roller Thrust Bearings 81230 M

The 81230 M is a single-row cylindrical roller thrust bearing with a 150mm bore and 215mm outer diameter, built to handle heavy loads. It’s made from durable chrome steel and weighs 7.2kg, suitable for robust industrial use.

This bearing can manage dynamic radial loads up to 104625 lbf and operates smoothly at speeds up to 1300 RPM. Its machined brass cage ensures reliable performance and longevity under stress.

The design includes precise tolerances and a chamfered housing washer for easier installation. It works well in temperatures ranging from -30°C to 110°C, making it versatile for various environments.

Ideal for heavy machinery or equipment where high thrust loads are common, it’s interchangeable with SKF bearings for easy replacement. Compliant with RoHS and REACH standards for safety and environmental friendliness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81230 M
  • size 150 mm x 215 mm x 50 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 50 mm
  • Height Tolerance -0.40mm to +0.025mm
  • Outside Diameter Shaft Washer 212 mm
  • Bore Diameter Housing Washer 153 mm
  • Height Shaft Washer 14.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1.5 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 104625 lbf
  • Static Radial Load 427500 lbf
  • Max Speed 1300 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 7.2 kg
  • Roller And Cage Thrust Assembly K 81230 M
  • Shaft Washer WS 81230
  • Housing Washer GS 81230
Single Row Cylindrical Roller Thrust Bearings 81230 M dimension drawing
Download DWG Download PDF

Features

Why Choose 81230 M Bearing for Precision Tasks?

81230 M Bearing features a machined brass cage that ensures precise alignment of cylindrical rollers, enhancing load distribution.
Its chrome steel construction provides excellent durability, making it suitable for heavy thrust applications.

With a dynamic radial load capacity of 104625 lbf, 81230 M Bearing handles demanding conditions reliably.
The bearing operates smoothly within a temperature range of -30° to 110°C, ensuring consistent performance.

Designed for easy installation, 81230 M Bearing reduces maintenance efforts and operational downtime.
Its robust design and high load capacity make it a dependable choice for industrial applications.

Application

Industrial Uses of 81230 M Bearing
81230 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The machined brass cage ensures smooth operation even under demanding conditions.

What Makes 81230 M Bearing a Preferred Choice?
In automotive applications, 81230 M Bearing is ideal for components like heavy-duty transmissions, thanks to its robust chrome steel construction. Its precise tolerances make it a reliable choice for high-performance systems.

Built for Heavy-Duty Use: 81230 M Bearing
For industrial automation, 81230 M Bearing supports robotic arms and conveyor systems, where its durability and load capacity are key. The metric sizing ensures compatibility with a wide range of equipment.

Light-Duty vs Heavy-Duty: Best Uses for 81230 M Bearing
In light-duty scenarios, 81230 M Bearing can be found in smaller machinery like pumps, while its strength shines in heavy-duty applications like mining equipment. The temperature range makes it versatile for various environments.

Where Is 81230 M Bearing Used?
81230 M Bearing is often seen in wind turbines, where its ability to handle radial and thrust loads is crucial. The chrome steel rollers and brass cage provide long-lasting performance in these high-stress environments.
