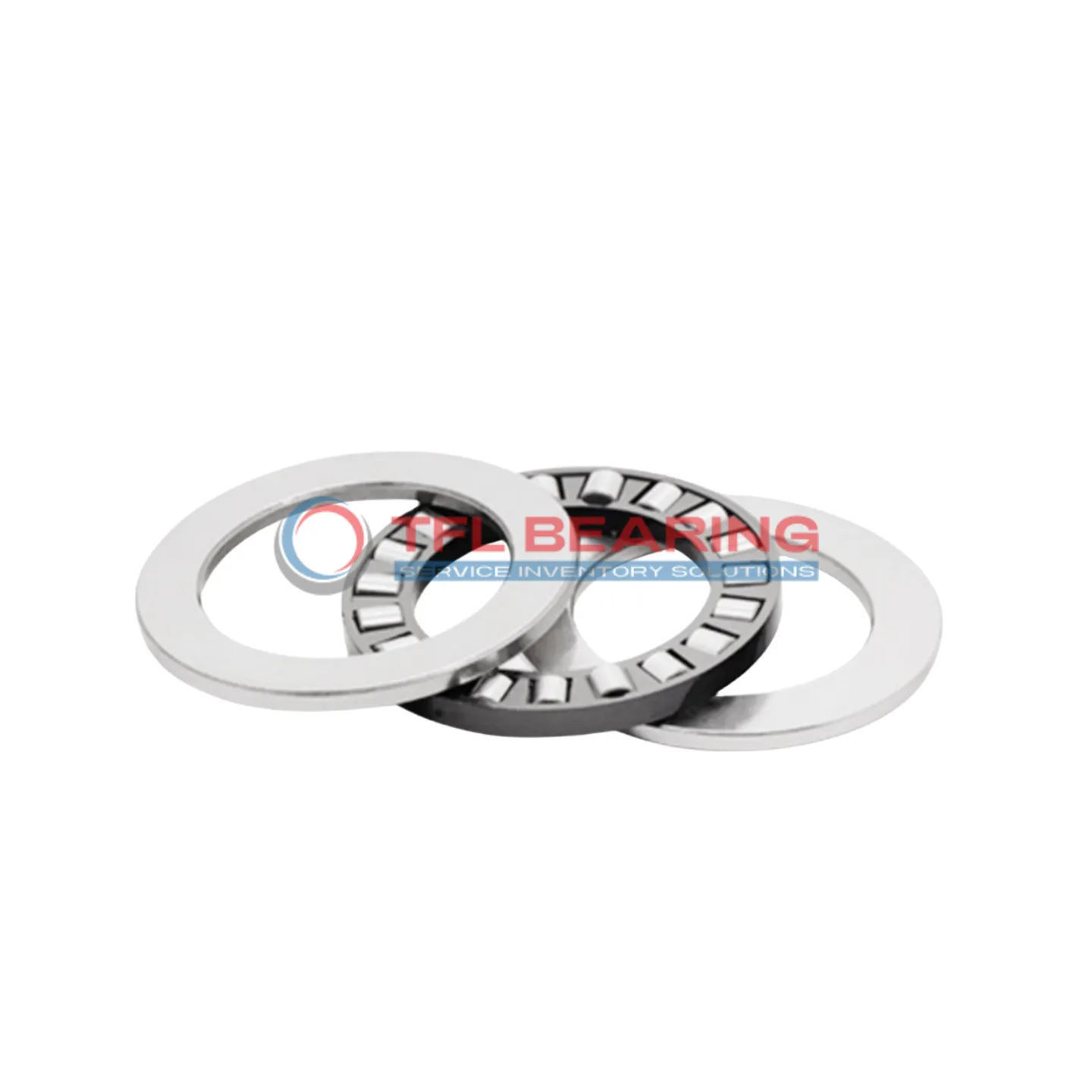

Single Row Cylindrical Roller Thrust Bearings 81215 TN

Single Row Cylindrical Roller Thrust Bearings 81215 TN

The 81215 TN is a single-row cylindrical roller thrust bearing measuring 75mm by 110mm by 27mm, crafted from sturdy chrome steel. It handles heavy thrust loads up to 30825 lbf and operates smoothly at speeds up to 2400 RPM.

Its glass fibre reinforced PA66 cage ensures durability and reduces friction during use. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for heavy-duty applications like industrial gearboxes or machinery with high thrust loads.

Weighing 0.8kg, it offers a robust yet manageable solution. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

The design includes separate shaft and housing washers for easy installation. Its cylindrical rollers provide stable performance under demanding conditions. Ideal for engineers needing a reliable thrust bearing solution.

Maintenance is straightforward thanks to its simple, open structure. The bearing’s precise tolerances ensure consistent operation over time. A solid pick for both new builds and repair projects.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81215 TN
  • size 75 mm x 110 mm x 27 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.022mm to 0
  • Width 27 mm
  • Height Tolerance -0.30mm to +0.02mm
  • Outside Diameter Shaft Washer 110 mm
  • Bore Diameter Housing Washer 77 mm
  • Height Shaft Washer 8 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 30825 lbf
  • Static Radial Load 110250 lbf
  • Max Speed 2400 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.8 kg
  • Roller And Cage Thrust Assembly K 81215 TN
  • Shaft Washer WS 81215
  • Housing Washer GS 81215
Single Row Cylindrical Roller Thrust Bearings 81215 TN dimension drawing
Download DWG Download PDF

Features

Performance Features of 81215 TN Bearing

81215 TN Bearing is built with chrome steel washers and rollers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 30825 lbf, making it suitable for heavy-duty applications.
The glass fibre reinforced PA66 cage ensures smooth operation and reduces wear.
With a maximum speed of 2400 rpm, it delivers reliable performance in various conditions.

How Does 81215 TN Bearing Resist Wear?

81215 TN Bearing uses chrome steel rollers and washers, enhancing durability under high loads.
The reinforced PA66 cage minimises friction, extending the bearing’s service life.
It operates efficiently within a temperature range of -30° to 110°C.
This makes it a dependable choice for demanding industrial environments.

Engineered for Precision: 81215 TN Bearing

81215 TN Bearing features precise dimensions with tight tolerances, ensuring accurate performance.
Its chrome steel construction provides excellent resistance to wear and corrosion.
The bearing can handle static radial loads up to 110250 lbf.
This combination of features makes it ideal for high-precision applications.

Why Choose 81215 TN Bearing for Thrust Loads?

81215 TN Bearing is designed to manage heavy thrust loads with its robust cylindrical roller design.
The chrome steel components ensure long-lasting performance even under stress.
It maintains efficiency at speeds up to 2400 rpm.
This makes it a reliable option for machinery requiring consistent thrust load handling.

Application

Industrial Uses of 81215 TN Bearing
81215 TN Bearing is commonly used in heavy machinery like hydraulic presses and industrial gearboxes, where its cylindrical roller design handles high thrust loads efficiently.
The glass fibre reinforced PA66 cage ensures smooth operation even at speeds up to 2400 rpm, making it suitable for demanding environments.

Where Is 81215 TN Bearing Used?
In automotive applications, 81215 TN Bearing supports clutch mechanisms and transmission systems, thanks to its robust chrome steel construction.
Its metric sizing and compatibility with SKF models make it a versatile choice for both European and Asian vehicle designs.

Built for Heavy-Duty Use: 81215 TN Bearing
For automation equipment, 81215 TN Bearing provides reliable performance in robotic arms and conveyor systems, where precision and durability are key.
The temperature range of -30° to 110°C ensures consistent operation in various industrial settings.

Automotive vs Aerospace: Applications of 81215 TN Bearing
In automotive systems, 81215 TN Bearing excels in gearboxes and drivetrains, handling high thrust loads with ease.
For aerospace applications, its lightweight yet durable design makes it suitable for auxiliary systems requiring reliable thrust support.

Key Fields for 81215 TN Bearing
Medical imaging devices benefit from 81215 TN Bearing’s smooth operation and resistance to wear, ensuring long-term reliability.
The chrome steel rollers and washers provide excellent load capacity, making it ideal for high-precision equipment.
