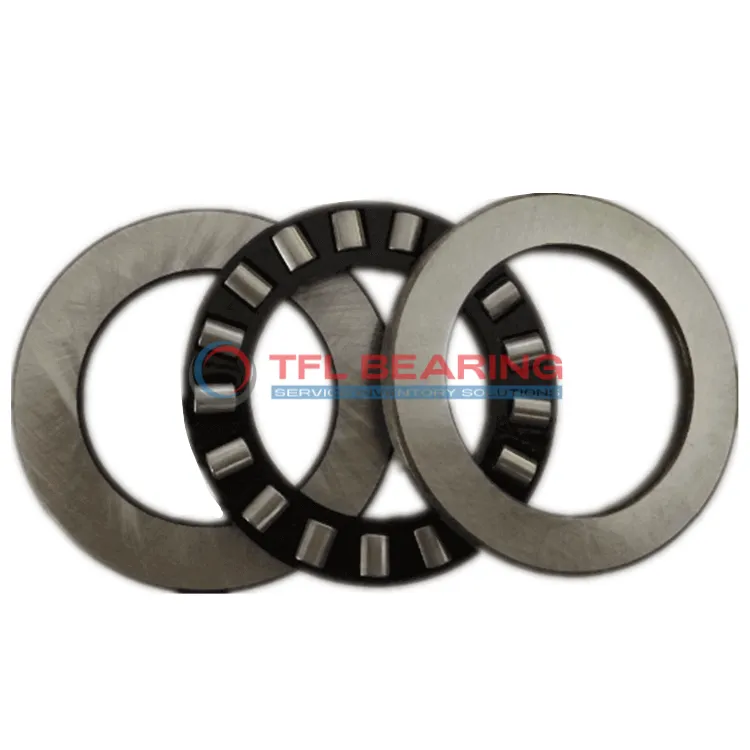

Single Row Cylindrical Roller Thrust Bearings 81213 TN

Single Row Cylindrical Roller Thrust Bearings 81213 TN

The 81213 TN is a single-row cylindrical roller thrust bearing, measuring 65mm by 100mm by 27mm, crafted from sturdy chrome steel. It handles thrust loads up to 31500 lbf and operates smoothly at speeds up to 2600 RPM.

Its glass fibre reinforced PA66 cage ensures durability and reduces friction, while the chrome steel rollers provide reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial machinery or gear systems where high thrust loads are expected.

Weighing 0.72kg, it offers a robust yet manageable solution. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81213 TN
  • size 65 mm x 100 mm x 27 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.022mm to 0
  • Width 27 mm
  • Height Tolerance -0.30mm to +0.02mm
  • Outside Diameter Shaft Washer 100 mm
  • Bore Diameter Housing Washer 67 mm
  • Height Shaft Washer 8 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 31500 lbf
  • Static Radial Load 110250 lbf
  • Max Speed 2600 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.72 kg
  • Roller And Cage Thrust Assembly K 81213 TN
  • Shaft Washer WS 81213
  • Housing Washer GS 81213
Single Row Cylindrical Roller Thrust Bearings 81213 TN dimension drawing
Download DWG Download PDF

Features

How Does 81213 TN Bearing Handle Heavy Loads?

81213 TN Bearing features chrome steel washers and rollers, offering robust resistance to high thrust loads.
Its dynamic radial load capacity reaches 31500 lbf, making it suitable for demanding industrial applications.
The glass fibre reinforced PA66 cage ensures smooth operation and reduces friction under heavy loads.
With a maximum speed of 2600 rpm, it maintains performance while handling substantial forces.

Why Choose 81213 TN Bearing for Precision Tasks?

81213 TN Bearing’s precise dimensions (65 mm x 100 mm x 27 mm) ensure accurate fit and alignment in machinery.
The chrome steel rollers and washers provide consistent performance, even under high static loads of 110250 lbf.
Its temperature range of -30° to 110 °C allows reliable operation in varying environmental conditions.
The reinforced PA66 cage enhances durability while maintaining low friction.

Engineered for Reliability: 81213 TN Bearing

81213 TN Bearing is built with chrome steel components, ensuring long-term durability and resistance to wear.
The tight tolerances on bore and outer diameters (-0.015mm to 0 and -0.022mm to 0) guarantee precise operation.
Its design supports high static radial loads up to 110250 lbf without compromising performance.
The reinforced cage material contributes to smooth rotation and extended service life.

Steel vs Ceramic Bearings: Strengths of 81213 TN Bearing

81213 TN Bearing uses chrome steel rollers and washers, providing excellent load-bearing capacity and durability.
Compared to ceramic options, it offers better cost-efficiency for high-load applications.
The glass fibre reinforced PA66 cage ensures stability and reduces maintenance needs.
With a wide temperature range, it performs reliably in diverse industrial environments.

Performance Features of 81213 TN Bearing

81213 TN Bearing’s cylindrical roller design ensures efficient load distribution and reduced friction.
The chrome steel construction enhances its ability to handle dynamic radial loads up to 31500 lbf.
Its compact dimensions (65 mm x 100 mm x 27 mm) make it suitable for space-constrained applications.
The reinforced cage material improves longevity and operational smoothness.

Application

Industrial Uses of 81213 TN Bearing
81213 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and gearboxes, where its cylindrical roller design efficiently handles high thrust loads. The glass fibre reinforced cage offers durability in demanding industrial environments.

Where Is 81213 TN Bearing Used?
You’ll often find 81213 TN Bearing in automotive applications like clutch assemblies, where its precise tolerances ensure smooth operation. Its metric sizing makes it a reliable choice for European and Asian vehicle models.

Built for Heavy-Duty Use: 81213 TN Bearing
81213 TN Bearing excels in construction equipment, such as cranes and excavators, thanks to its robust chrome steel construction. The reinforced PA66 cage adds extra resilience in high-load scenarios.

Automotive vs Aerospace: Applications of 81213 TN Bearing
In automotive systems, 81213 TN Bearing supports gearboxes and transmissions, while in aerospace, it’s used in landing gear mechanisms. Its high dynamic load capacity makes it versatile across industries.

Perfect Fit for Automation: 81213 TN Bearing
81213 TN Bearing is ideal for robotic arms and automated assembly lines, where its precision and reliability are key. The temperature range ensures consistent performance in varied operating conditions.
