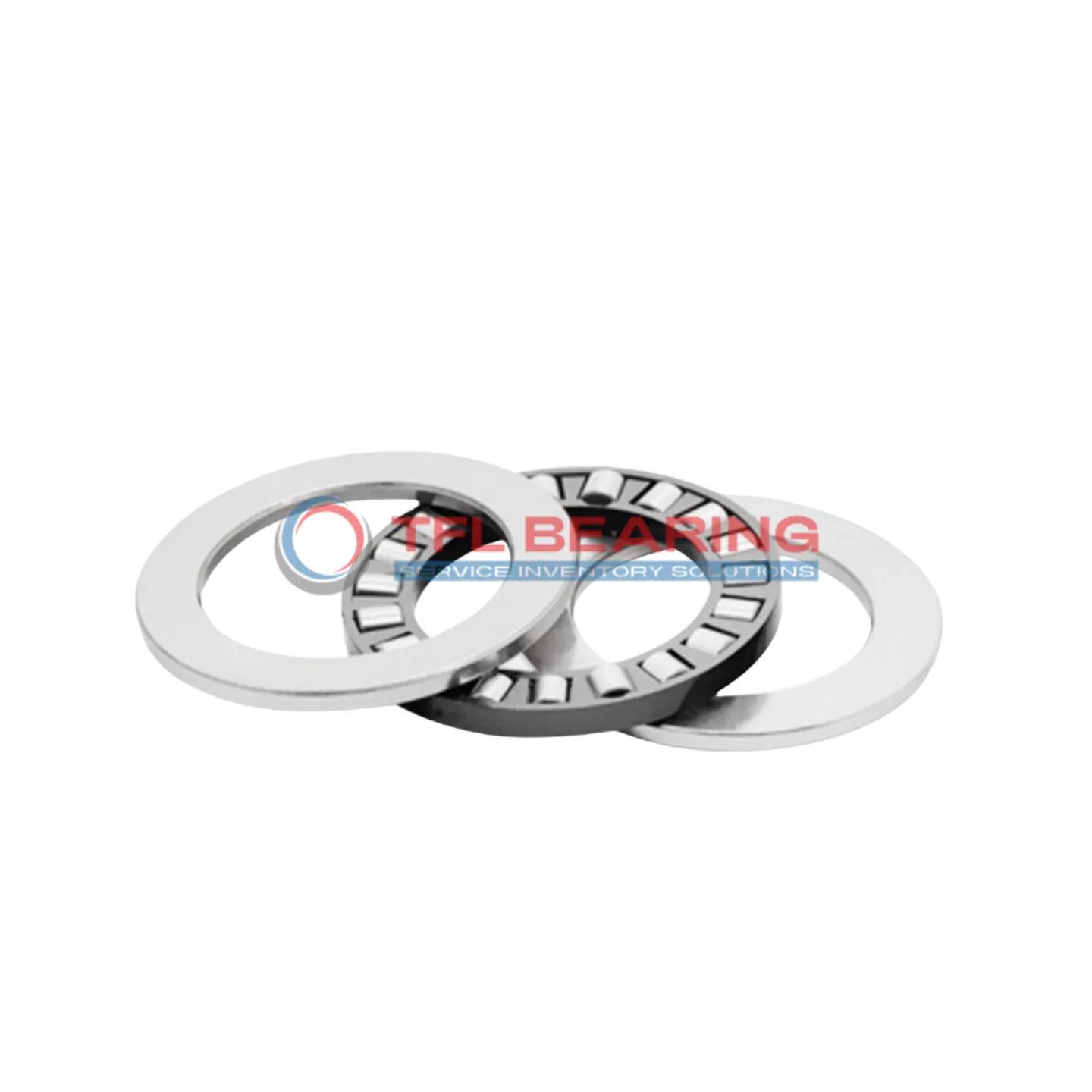

Single Row Cylindrical Roller Thrust Bearings 81212 TN

Single Row Cylindrical Roller Thrust Bearings 81212 TN

The 81212 TN is a single-row cylindrical roller thrust bearing measuring 60mm by 95mm by 26mm, crafted from robust chrome steel. It handles heavy thrust loads up to 30825 lbf and operates smoothly at speeds up to 2800 RPM.

Its glass fibre reinforced PA66 cage ensures durability and reduces friction, while the precise tolerances guarantee reliable performance. The bearing works efficiently in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. It’s well-suited for industrial machinery, gearboxes, or heavy equipment where high thrust loads are common.

Weighing 0.65kg, it’s a sturdy yet manageable component. Compliant with RoHS and REACH standards, it’s safe for various applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81212 TN
  • size 60 mm x 95 mm x 26 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 95 mm
  • Outer Dia Tolerance -0.022mm to 0
  • Width 26 mm
  • Height Tolerance -0.30mm to +0.02mm
  • Outside Diameter Shaft Washer 95 mm
  • Bore Diameter Housing Washer 62 mm
  • Height Shaft Washer 7.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 1 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Glass fibre reinforced PA66 cage
  • Dynamic Radial Load 30825 lbf
  • Static Radial Load 104625 lbf
  • Max Speed 2800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.65 kg
  • Roller And Cage Thrust Assembly K 81212 TN
  • Shaft Washer WS 81212
  • Housing Washer GS 81212
Single Row Cylindrical Roller Thrust Bearings 81212 TN dimension drawing
Download DWG Download PDF

Features

Performance Features of 81212 TN Bearing

81212 TN Bearing is designed with chrome steel rollers and washers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 30825 lbf, making it suitable for heavy-duty applications.

The glass fibre reinforced PA66 cage ensures smooth operation and reduces friction.
This design enhances durability while maintaining performance at speeds up to 2800 rpm.

81212 TN Bearing operates efficiently in temperatures ranging from -30° to 110 °C.
Its robust construction ensures reliability in various industrial environments.

With precise tolerances and high load capacity, 81212 TN Bearing is a dependable choice.
The interchangeable design with SKF bearings adds to its versatility and ease of replacement.

Application

Industrial Uses of 81212 TN Bearing
81212 TN Bearing is commonly used in heavy machinery, such as hydraulic presses and gearboxes, where its cylindrical roller design handles high thrust loads efficiently. The glass fibre reinforced cage adds durability in demanding industrial environments.

What Makes 81212 TN Bearing a Preferred Choice?
In automotive applications, 81212 TN Bearing works well in clutch mechanisms and transmission systems, thanks to its precise metric sizing and robust chrome steel construction. It ensures smooth operation even under constant thrust forces.

Built for Heavy-Duty Use: 81212 TN Bearing
For automation equipment, 81212 TN Bearing supports robotic arms and conveyor systems, offering reliable performance with its high dynamic load capacity. The temperature range makes it suitable for varied operating conditions.

Medical vs Industrial: Where 81212 TN Bearing Excels
While 81212 TN Bearing isn’t typically used in medical devices, it shines in industrial settings like pumps and compressors. Its static load capacity ensures stability in high-pressure scenarios.

Practical Applications of 81212 TN Bearing
In consumer electronics, 81212 TN Bearing can be found in heavy-duty printers and industrial fans, where its wear-resistant materials extend service life. The compact design fits well in space-constrained setups.
