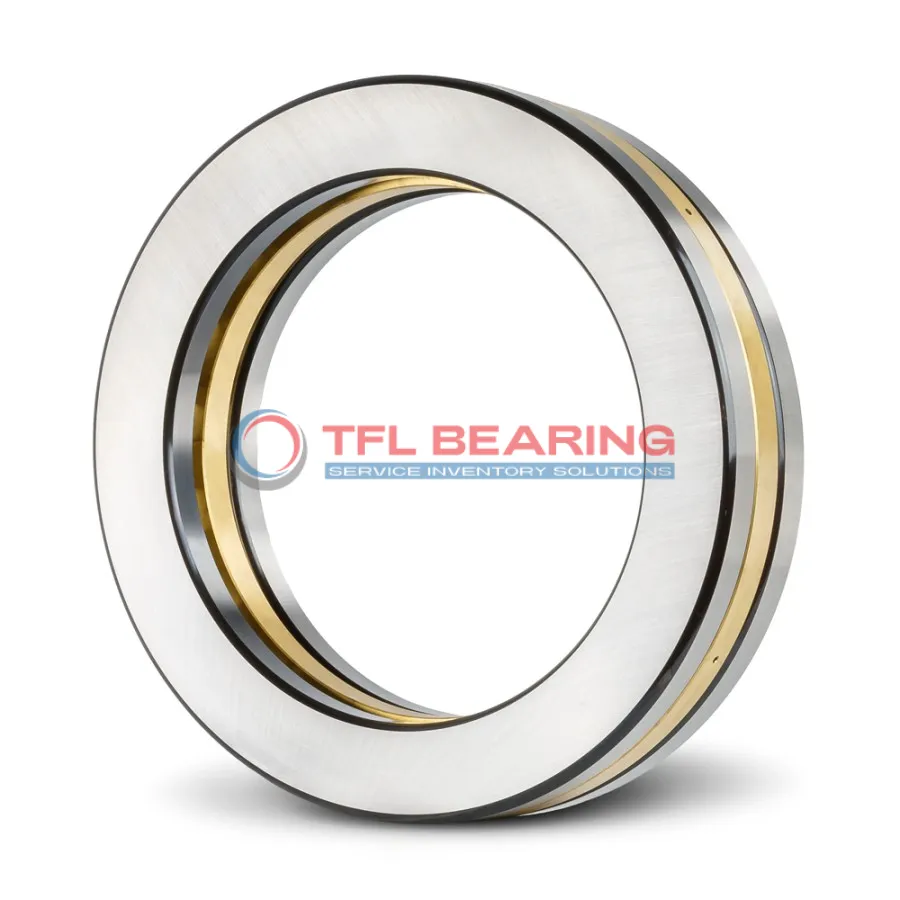

Single Row Cylindrical Roller Thrust Bearings 81176 M

Single Row Cylindrical Roller Thrust Bearings 81176 M

The 81176 M is a single-row cylindrical roller thrust bearing with a 380mm bore and 460mm outer diameter, built from sturdy chrome steel. It manages heavy thrust loads up to 202500 lbf and operates smoothly at speeds up to 800 RPM.

Its machined brass cage adds durability, while the precise tolerances ensure reliable performance. The bearing works in temperatures from -30°C to 110°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for heavy machinery or industrial equipment where high thrust loads are expected.

Weighing 22kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 81176 M
  • size 380 mm x 460 mm x 65 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.040mm to 0
  • Outer Dia 460 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 65 mm
  • Height Tolerance -0.50mm to +0.04mm
  • Outside Diameter Shaft Washer 456 mm
  • Bore Diameter Housing Washer 384 mm
  • Height Shaft Washer 20 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 2 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 202500 lbf
  • Static Radial Load 1125000 lbf
  • Max Speed 800 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 22 kg
  • Shaft Washer IW-81176
  • Housing Washer OW-81176
Single Row Cylindrical Roller Thrust Bearings 81176 M dimension drawing
Download DWG Download PDF

Features

Why Choose 81176 M Bearing for Precision Tasks?

81176 M Bearing features a single row cylindrical roller design, optimised for high thrust load applications.
Its chrome steel rollers and washers provide excellent durability under heavy loads up to 202500 lbf dynamic capacity.

The machined brass cage ensures smooth roller alignment, reducing friction and wear during operation.
With a maximum speed of 800 rpm, it maintains reliable performance in demanding industrial environments.

81176 M Bearing operates efficiently within a temperature range of -30° to 110°C, suitable for varied conditions.
Its precise dimensions (380 mm x 460 mm x 65 mm) ensure compatibility with standard industrial equipment.

Application

Industrial Uses of 81176 M Bearing
The 81176 M Bearing is commonly used in heavy machinery, such as large presses and industrial gearboxes, where its cylindrical roller design handles significant thrust loads. Its chrome steel construction ensures durability in demanding environments.

Where Is 81176 M Bearing Used?
You’ll often find the 81176 M Bearing in wind turbine systems, where its high load capacity and stability are essential for smooth operation. The machined brass cage adds extra reliability in high-speed applications.

Built for Heavy-Duty Use: 81176 M Bearing
In mining equipment, the 81176 M Bearing excels due to its robust design and ability to withstand extreme loads. The precise tolerances make it a dependable choice for critical applications.

Automotive vs Aerospace: Applications of 81176 M Bearing
While the 81176 M Bearing isn’t typically used in aerospace, it’s a staple in heavy automotive systems like large truck transmissions. Its metric sizing and high static load capacity make it versatile for industrial vehicles.

Practical Applications of 81176 M Bearing
For conveyor systems in manufacturing plants, the 81176 M Bearing provides reliable performance under continuous thrust loads. The open design allows for easy inspection and maintenance, reducing downtime.
