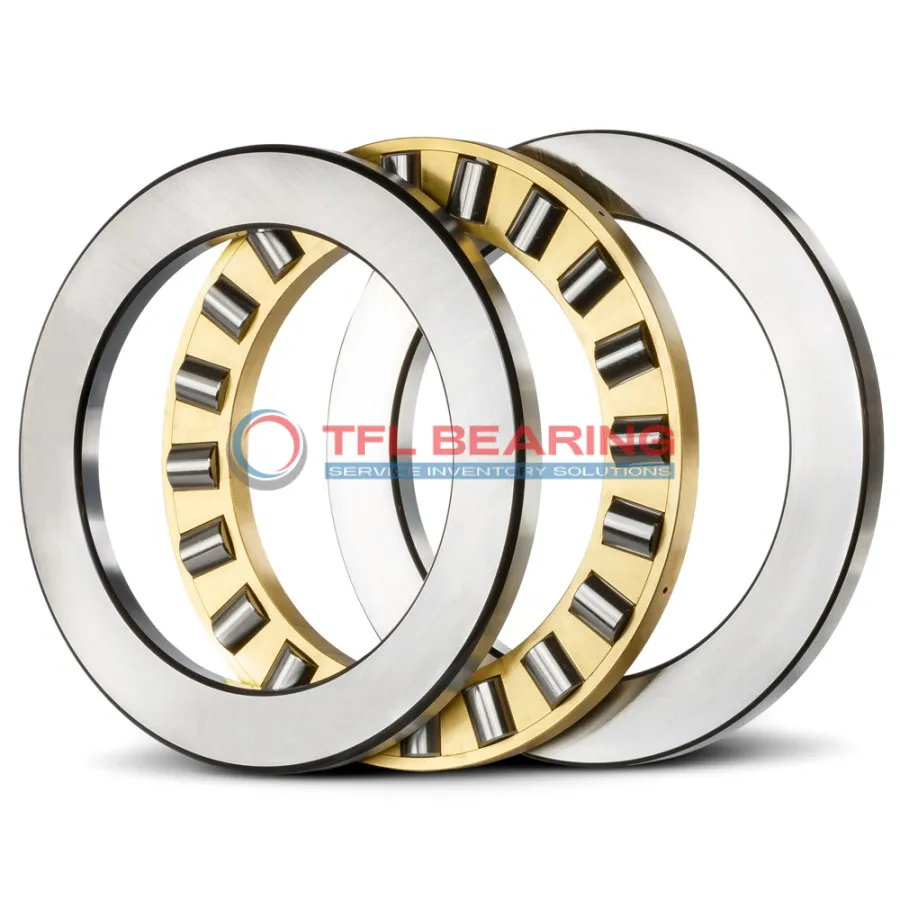

Single Row Cylindrical Roller Thrust Bearings 811/530 M

Single Row Cylindrical Roller Thrust Bearings 811/530 M

The 811/530 M is a single-row cylindrical roller thrust bearing with a large 530mm bore and 640mm outer diameter, built to handle heavy loads. Made from chrome steel, it supports dynamic radial loads up to 389,250 lbf and static loads up to 2,385,000 lbf.

Its machined brass cage ensures smooth operation at speeds up to 500 RPM, even in temperatures ranging from -30°C to 110°C. The robust design includes precise tolerances for reliable performance in demanding conditions.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy machinery, industrial gearboxes, or applications with significant thrust loads.

Weighing 55.5kg, it’s a sturdy option for large-scale equipment. Compliant with RoHS and REACH standards for safe and environmentally friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 811/530 M
  • size 530 mm x 640 mm x 85 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 1
  • Bore Dia 530 mm
  • Bore Dia Tolerance -0.050mm to 0
  • Outer Dia 640 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 85 mm
  • Height Tolerance -0.60mm to +0.06mm
  • Outside Diameter Shaft Washer 635 mm
  • Bore Diameter Housing Washer 535 mm
  • Height Shaft Washer 25.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 3 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 389250 lbf
  • Static Radial Load 2385000 lbf
  • Max Speed 500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 55.5 kg
  • Shaft Washer IW-811/530
  • Housing Washer OW-811/530
Single Row Cylindrical Roller Thrust Bearings 811/530 M dimension drawing
Download DWG Download PDF

Features

Performance Features of 811/530 M Bearing

811/530 M Bearing is built with chrome steel washers and rollers, offering robust resistance to high thrust loads.
Its dynamic radial load capacity reaches 389,250 lbf, making it suitable for heavy-duty industrial applications.

The machined brass cage ensures precise roller alignment, enhancing durability and reducing friction.
With a maximum speed of 500 rpm, it delivers reliable performance under demanding conditions.

811/530 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its corrosion-resistant materials and sturdy design make it ideal for harsh environments.

Application

Industrial Uses of 811/530 M Bearing
811/530 M Bearing is commonly used in heavy machinery, such as large presses and rolling mills, where its cylindrical roller design handles high thrust loads efficiently. The machined brass cage ensures smooth operation even under demanding conditions.

What Makes 811/530 M Bearing a Preferred Choice?
In wind turbine applications, 811/530 M Bearing’s robust construction and high load capacity make it ideal for supporting the main shaft. Its chrome steel rollers provide durability, reducing maintenance needs in harsh environments.

Built for Heavy-Duty Use: 811/530 M Bearing
For mining equipment, 811/530 M Bearing excels in conveyor systems and crushers, where its large bore diameter and static load capacity are crucial. The precise tolerances ensure reliable performance over long periods.

Automotive vs Aerospace: Applications of 811/530 M Bearing
In automotive testing rigs, 811/530 M Bearing handles extreme thrust loads during durability tests. Meanwhile, in aerospace ground support equipment, its temperature stability ensures consistent operation in varying conditions.

Key Fields for 811/530 M Bearing
811/530 M Bearing is often found in marine applications, such as ship propulsion systems, where its corrosion-resistant materials and high load ratings are essential. The metric sizing also simplifies integration with international designs.
