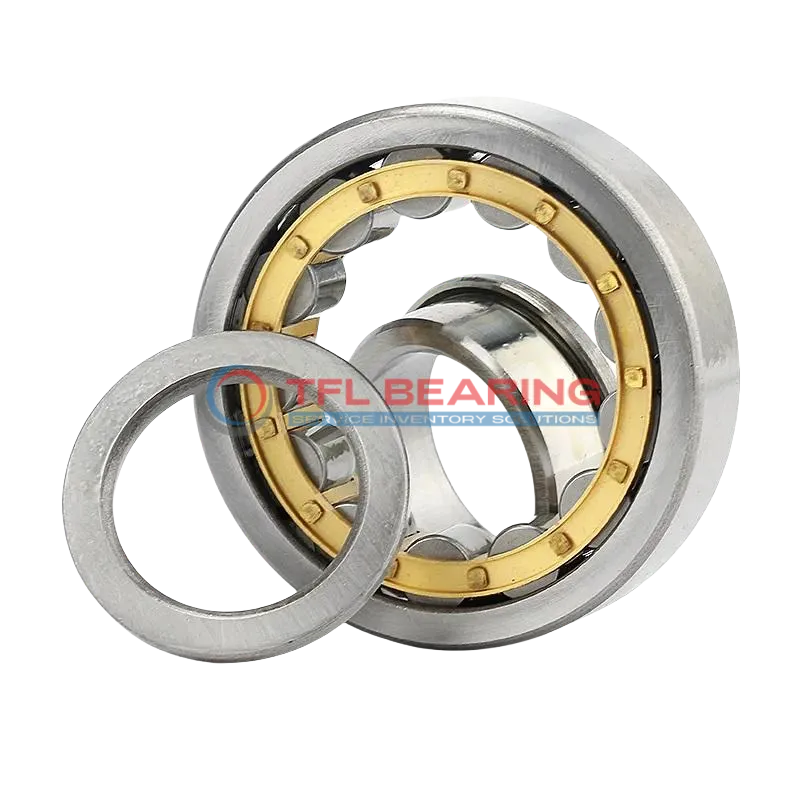

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2310 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2310 ECML

The NUP 2310 ECML is a single row cylindrical roller bearing with a 50mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 41850 lbf and operates smoothly at speeds up to 12000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures reliable performance. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where combined loads are common.

Weighing 2kg, it offers a robust yet manageable size. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 2310 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 71.2 mm
  • Chamfer Dimension r1,2(min.) 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 41850 lbf
  • Static Radial Load 41850 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 2 kg
  • Shoulder Dia Of Outer Ring 92.05 mm
  • Raceway Diameter Of Inner Ring 65 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 2 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 2310 ECML dimension drawing
Download DWG Download PDF

Features

Performance Features of NUP 2310 ECML Bearing

NUP 2310 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 41,850 lbf, ensuring reliable performance in demanding conditions.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 12,000 rpm, it balances durability and efficiency for various applications.

NUP 2310 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise dimensions and tolerances ensure a perfect fit, enhancing overall performance.
This makes NUP 2310 ECML Bearing a dependable choice for industrial machinery.

Application

Key Fields for NUP 2310 ECML Bearing
NUP 2310 ECML Bearing is commonly used in industrial machinery, especially in gearboxes and electric motors where combined loads are present. Its cylindrical roller design ensures efficient load distribution, making it suitable for high-speed operations.

In automotive applications, NUP 2310 ECML Bearing can be found in transmission systems and wheel hubs, providing reliable performance under varying loads. The chrome steel construction enhances durability, even in demanding conditions.

For automation equipment, NUP 2310 ECML Bearing supports precise movements in robotic arms and conveyor systems. The open seal type allows for easy lubrication, ensuring smooth operation over extended periods.

NUP 2310 ECML Bearing also fits well in heavy-duty machinery like compressors and pumps, where its high dynamic radial load capacity is essential. The PA66 cage material helps reduce friction, improving overall efficiency.
