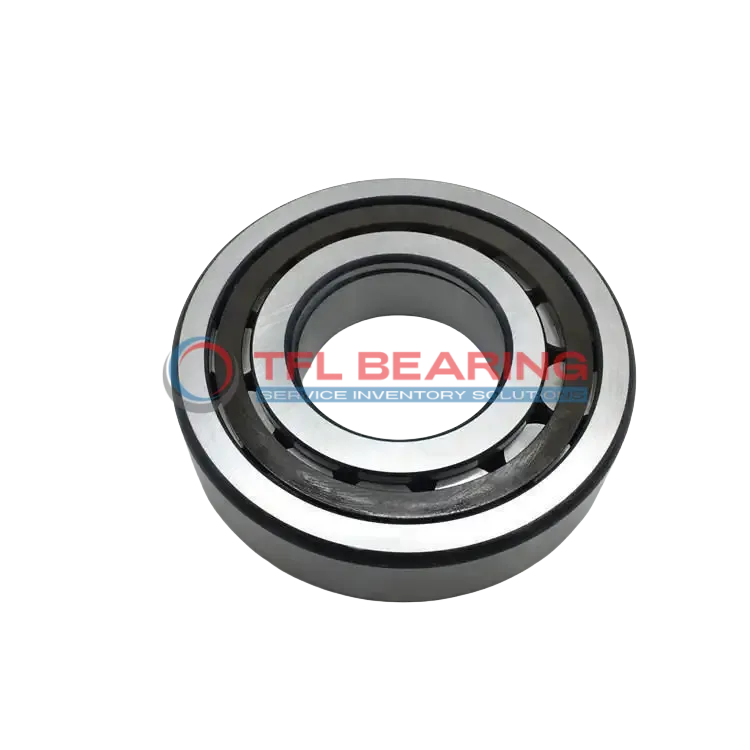

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2212 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2212 ECP

The NUP 2212 ECP is a single-row cylindrical roller bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 32850 lbf and runs smoothly at speeds up to 8000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage keeps rollers centred for reliable performance. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery like pumps or gearboxes where combined loads are common.

Weighing 1.09kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

The inner ring design ensures stability, while the chamfered edges simplify installation. Suitable for industrial applications requiring durability and precision.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 2212 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 77.5 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 32850 lbf
  • Static Radial Load 34425 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.09 kg
  • Shoulder Dia Of Outer Ring 95.1 mm
  • Raceway Diameter Of Inner Ring 72 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 1.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 2212 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NUP 2212 ECP Bearing

NUP 2212 ECP Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 32850 lbf, ensuring reliable performance in demanding applications.

The PA66 cage keeps the rollers centred, reducing wear and extending service life.
With a maximum speed of 8000 rpm, it balances durability and efficiency.

NUP 2212 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil.

The precise dimensions and tolerances ensure a perfect fit in various machinery.
This makes NUP 2212 ECP Bearing a versatile choice for industrial applications.

Application

Industrial Uses of NUP 2212 ECP Bearing
NUP 2212 ECP Bearing is commonly used in heavy machinery like gearboxes and electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The chrome steel construction ensures durability in demanding industrial environments.

Where Is NUP 2212 ECP Bearing Used?
You’ll find NUP 2212 ECP Bearing in conveyor systems and pumps, thanks to its ability to manage high-speed rotations up to 8000 rpm. The PA66 cage keeps the rollers centred, reducing friction and wear over time.

Built for Heavy-Duty Use: NUP 2212 ECP Bearing
NUP 2212 ECP Bearing excels in applications like printing presses and compressors, where combined loads are frequent. Its open design allows for easy lubrication, extending the bearing’s service life.

Automotive vs Industrial: Applications of NUP 2212 ECP Bearing
In automotive settings, NUP 2212 ECP Bearing supports transmissions and differentials, while in industrial gear, it’s ideal for crushers and mixers. The metric sizing ensures compatibility across various equipment types.

Perfect Fit for Automation: NUP 2212 ECP Bearing
NUP 2212 ECP Bearing works well in robotic arms and automated assembly lines, where precision and reliability are key. The temperature range of -30° to 110°C makes it suitable for diverse operating conditions.
