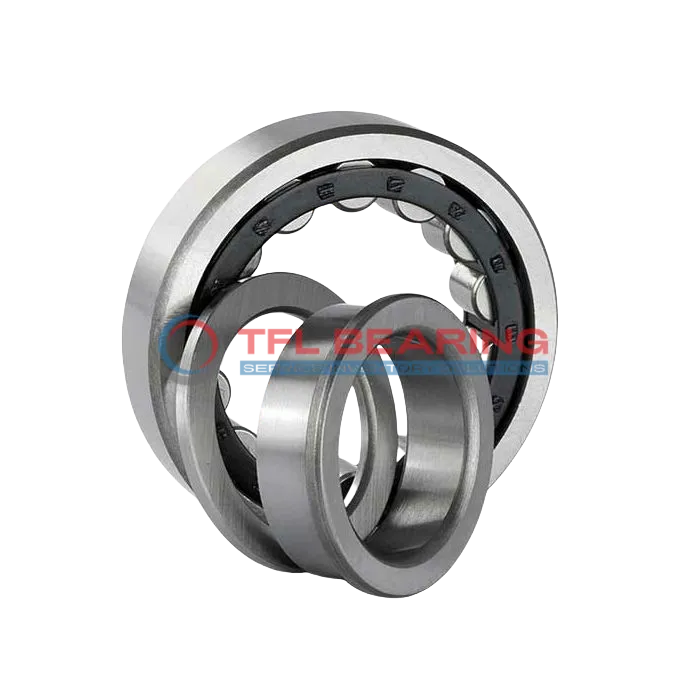

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2206 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 2206 ECP

The NUP 2206 ECP is a single row cylindrical roller bearing with a 30mm bore and 62mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 12375 lbf and reaches speeds of 14000 RPM.

Its PA66 cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for machinery with combined radial and axial loads, such as gearboxes or pumps.

Weighing 0.27kg, it’s lightweight yet robust. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 2206 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 41.2 mm
  • Chamfer Dimension r1,2(min.) 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 12375 lbf
  • Static Radial Load 11025 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 14000 rpm
  • Weight 0.27 kg
  • Shoulder Dia Of Outer Ring 51.95 mm
  • Raceway Diameter Of Inner Ring 37.5 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 0.6 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 2206 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NUP 2206 ECP Bearing

NUP 2206 ECP Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12375 lbf, ensuring reliable performance in various applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 14,000 rpm, it balances durability and efficiency for demanding tasks.

NUP 2206 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, simplifying maintenance.

Application

Industrial Uses of NUP 2206 ECP Bearing
NUP 2206 ECP Bearing is commonly used in industrial machinery like gearboxes and pumps, where its cylindrical roller design handles combined loads efficiently. The chrome steel construction ensures durability even in demanding environments.

Where Is NUP 2206 ECP Bearing Used?
You’ll often find NUP 2206 ECP Bearing in automotive applications such as transmissions, where its high-speed capability and grease lubrication keep things running smoothly. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: NUP 2206 ECP Bearing
NUP 2206 ECP Bearing excels in heavy machinery like conveyor systems, thanks to its robust PA66 cage and chrome steel rollers. The open design allows for easy lubrication, extending its service life.

Automotive vs Industrial: Applications of NUP 2206 ECP Bearing
In automotive settings, NUP 2206 ECP Bearing supports high-speed components like drivetrains, while in industrial gear, it handles radial and axial loads with ease. Its temperature range suits both environments well.

Perfect Fit for Automation: NUP 2206 ECP Bearing
NUP 2206 ECP Bearing is ideal for robotic arms and automated systems, where precision and reliability are key. The single-row design ensures smooth operation even at high speeds.
