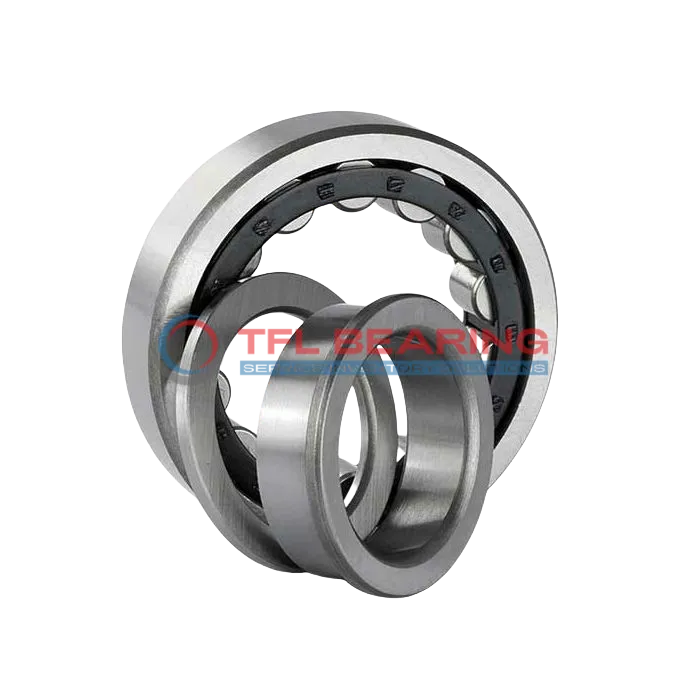

Single Row Cylindrical Roller Bearings With Inner Ring NUP 207 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NUP 207 ECP

The NUP 207 ECP is a single-row cylindrical roller bearing with a 35mm bore and 72mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 12600 lbf and spins smoothly at speeds up to 12000 RPM.

Its open design allows easy lubrication with grease or oil, while the PA66 cage ensures durability and smooth operation. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for machinery requiring high radial and axial load capacity, such as gearboxes or pumps.

Weighing just 0.31kg, it’s lightweight yet robust for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NUP 207 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 48.1 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 12600 lbf
  • Static Radial Load 10800 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.31 kg
  • Shoulder Dia Of Outer Ring 60.33 mm
  • Raceway Diameter Of Inner Ring 44 mm
  • Chamfer Dimension Of Loose Flange Ring(r3,4)(min.) 0.6 mm
Single Row Cylindrical Roller Bearings With Inner Ring NUP 207 ECP dimension drawing
Download DWG Download PDF

Features

Performance Features of NUP 207 ECP Bearing

NUP 207 ECP Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12600 lbf, ensuring reliable performance in various applications.

The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 12,000 rpm, it balances durability and efficiency in demanding conditions.

NUP 207 ECP Bearing operates smoothly within a temperature range of -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NUP 207 ECP Bearing
NUP 207 ECP Bearing is commonly used in industrial machinery like conveyor systems and gearboxes, where its cylindrical roller design handles combined loads efficiently. The open seal type allows for easy lubrication, making it suitable for high-speed operations up to 12000 rpm.

Where Is NUP 207 ECP Bearing Used?
In automotive applications, NUP 207 ECP Bearing supports components such as transmissions and differentials, thanks to its durable chrome steel construction. The PA66 cage ensures smooth rotation even under heavy radial loads.

Built for Heavy-Duty Use: NUP 207 ECP Bearing
For automation equipment, NUP 207 ECP Bearing provides reliable performance in robotic arms and precision machinery. Its metric sizing and grease lubrication make it adaptable to various industrial environments.

Medical vs Industrial: Where NUP 207 ECP Bearing Excels
In medical devices, NUP 207 ECP Bearing offers precision in imaging equipment, while in industrial settings, it excels in pumps and compressors. The temperature range of -30° to 110°C ensures consistent performance across different conditions.
