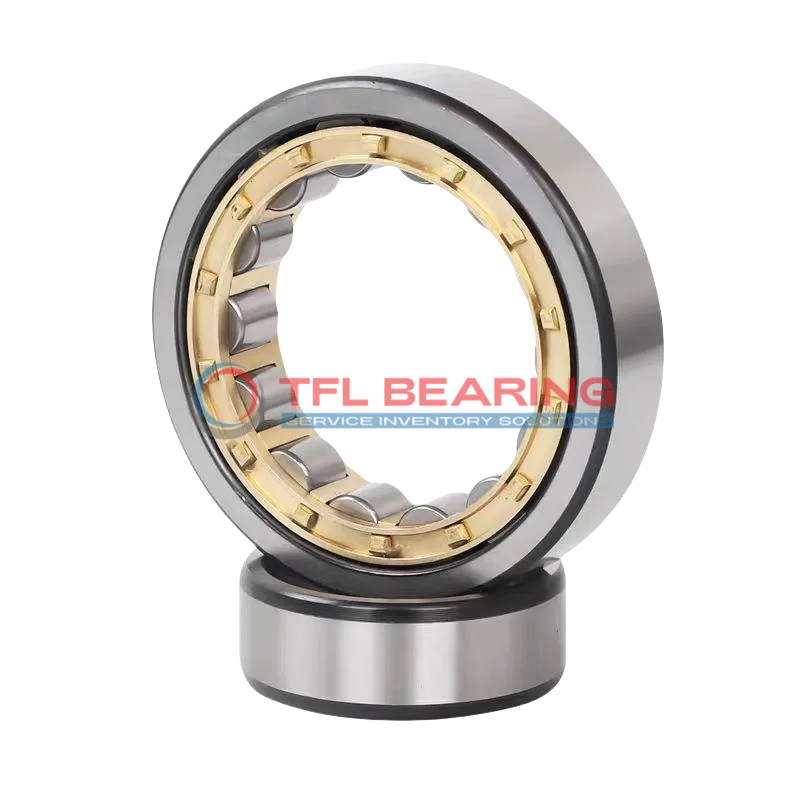

Single Row Cylindrical Roller Bearings With Inner Ring NU 3196 ECMA/HB1

The NU 3196 ECMA/HB1 is a single row cylindrical roller bearing with a large 480mm bore and 790mm outer diameter, built from tough chrome steel for durability. It handles heavy combined loads, with a dynamic radial load capacity of 1,336,500 lbf and a static radial load of 2,430,000 lbf.

Its brass cage, centred on the outer ring, ensures smooth operation at speeds up to 1000 RPM. The open design allows for easy lubrication with grease or oil, and it performs well in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a reliable choice for replacements. Ideal for heavy machinery, industrial equipment, or applications requiring high load capacity and stability.

Weighing 507kg, it’s a robust option for demanding environments. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number NU 3196 ECMA/HB1
Brand TFL
Interchangeable SKF
Bore Dia 480 mm
Bore Dia Tolerance -0.045mm to 0
Outer Dia 790 mm
Outer Dia Tolerance -0.075mm to 0
Width 248 mm
Width Tolerance -0.45mm to 0
Chamfer Dimension r1,2(min.) 7.5 mm
Permissible Axial Displacement(max.) 16 mm
System of Measurement Metric
Roller Bearing Type Cylindrical
For Load Direction Combined
Construction Single Row
Inner Ring Type With Inner Ring
Seal Type Open
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Brass cage, outer ring centred
Dynamic Radial Load 1336500 lbf
Static Radial Load 2430000 lbf
Lubrication Grease, Oil
Temperature Range -30° to 110 °C
RoHS Compliant
REACH Compliant
Max Speed 1000 rpm
Weight 507 kg
Shoulder Dia Of Outer Ring 699 mm
Raceway Diameter Of Inner Ring 547 mm

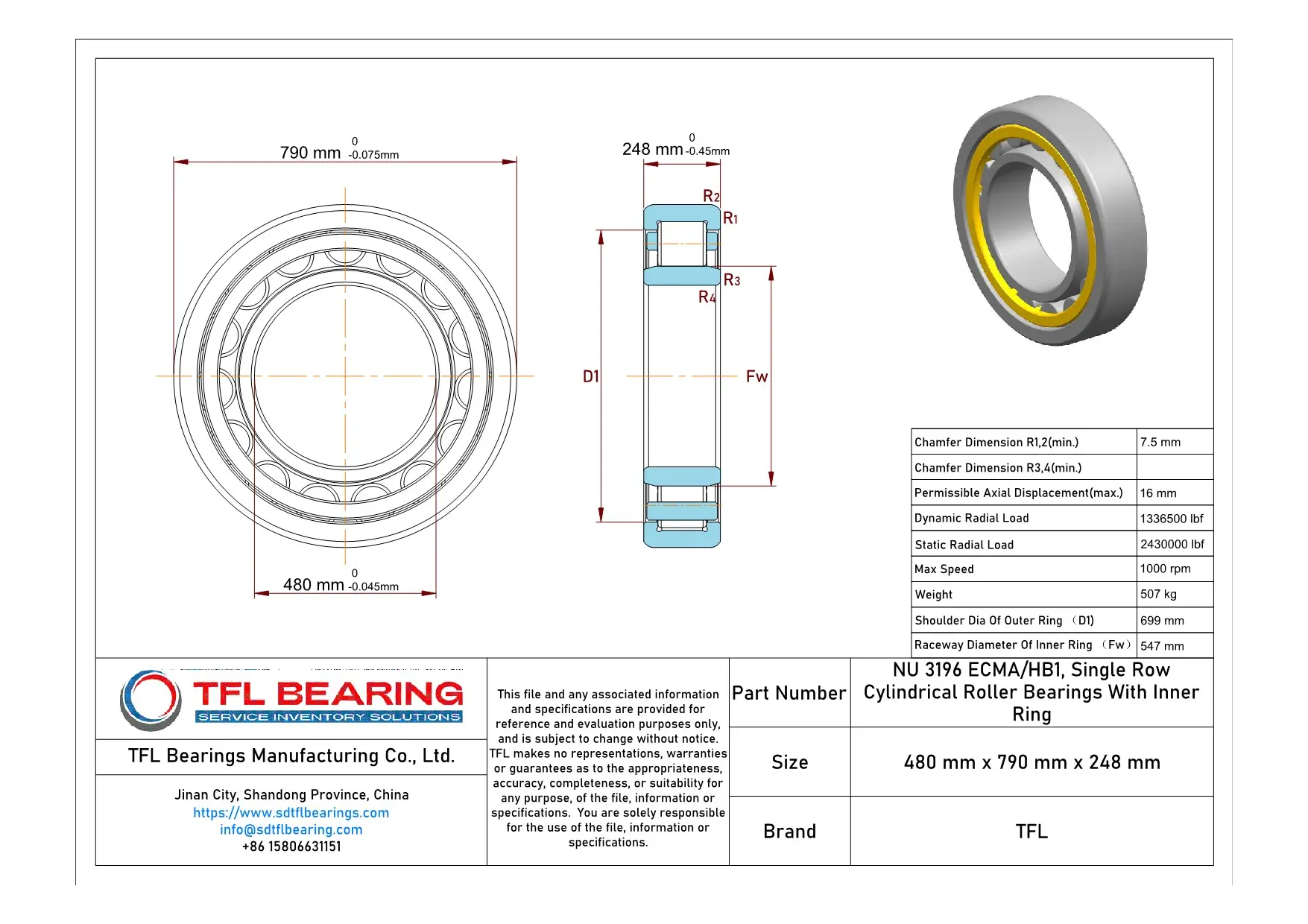

Single Row Cylindrical Roller Bearings With Inner Ring NU 3196 ECMA/HB1 dimension drawing
