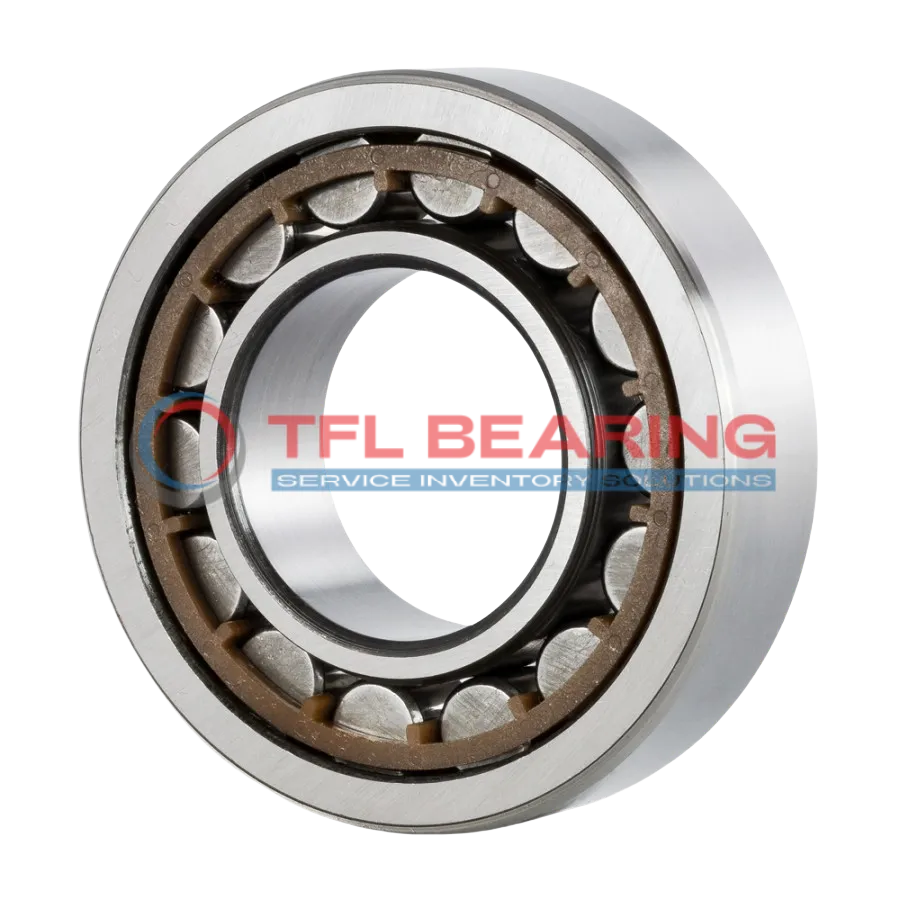

Single Row Cylindrical Roller Bearings With Inner Ring NU 316 ECPH

Single Row Cylindrical Roller Bearings With Inner Ring NU 316 ECPH

The NU 316 ECPH is a single row cylindrical roller bearing with an 80mm bore and 170mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 67500 lbf and operates smoothly at speeds up to 5000 RPM.

Its PEEK cage keeps rollers centred for steady performance, while the open design allows easy lubrication with grease or oil. The bearing works reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.

Weighing 3.94kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and versatile use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 316 ECPH
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 39 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PEEK cage, roller centred
  • Dynamic Radial Load 67500 lbf
  • Static Radial Load 65250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 3.94 kg
  • Shoulder Dia Of Outer Ring 142.7 mm
  • Raceway Diameter Of Inner Ring 101 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 316 ECPH dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 316 ECPH Bearing

NU 316 ECPH Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 67,500 lbf, ensuring reliable performance in heavy-duty applications.

The PEEK cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various industrial uses.

NU 316 ECPH Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

Application

Industrial Uses of NU 316 ECPH Bearing
NU 316 ECPH Bearing is commonly used in heavy machinery like industrial gearboxes and large pumps, where its cylindrical roller design handles high radial loads efficiently. The PEEK cage ensures smooth operation even at higher speeds, making it suitable for demanding environments.

Where Is NU 316 ECPH Bearing Used?
In automotive applications, NU 316 ECPH Bearing supports components such as drivetrains and axles, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, extending service life in high-mileage scenarios.

Built for Heavy-Duty Use: NU 316 ECPH Bearing
This bearing excels in conveyor systems and material handling equipment, where its combined load capacity ensures reliable performance. The precise tolerances and metric sizing make it a versatile choice for European and Asian machinery standards.

Automotive vs Aerospace: Applications of NU 316 ECPH Bearing
While NU 316 ECPH Bearing is popular in automotive drivetrains, it also finds use in aerospace auxiliary systems due to its high-speed capability. The temperature range and grease compatibility make it adaptable to various operating conditions.

Perfect Fit for Automation: NU 316 ECPH Bearing
In robotic arms and automated production lines, NU 316 ECPH Bearing provides stability and precision. Its single-row design and chrome steel rollers reduce friction, ensuring consistent performance in repetitive tasks.
