Single Row Cylindrical Roller Bearings With Inner Ring NU 29/950 ECMA

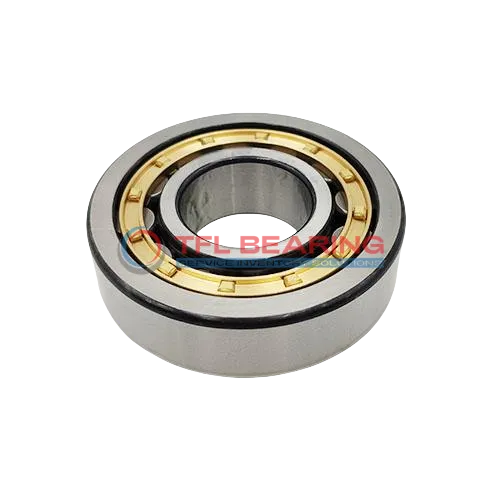

Single Row Cylindrical Roller Bearings With Inner Ring NU 29/950 ECMA

The NU 29/950 ECMA is a single-row cylindrical roller bearing with a large 950mm bore and 1250mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 1311750 lbf and works well in temperatures from -30°C to 110°C.

Its brass cage ensures smooth operation, while the open design allows easy lubrication with grease or oil. The bearing permits axial displacement up to 7.2mm, offering flexibility in demanding setups.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery like industrial gearboxes or large rotating equipment where robust performance is needed.

Weighing 690kg, it’s a substantial unit designed for durability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 29/950 ECMA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 950 mm
  • Bore Dia Tolerance -0.10mm to 0
  • Outer Dia 1250 mm
  • Outer Dia Tolerance -0.125mm to 0
  • Width 175 mm
  • Width Tolerance -1.00mm to 0
  • Chamfer Dimension r1,2(min.) 7.5 mm
  • Permissible Axial Displacement(max.) 7.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 1311750 lbf
  • Static Radial Load 3150000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 690 kg
  • Shoulder Dia Of Outer Ring 1152 mm
  • Raceway Diameter Of Inner Ring 1024 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 29/950 ECMA dimension drawing
Download DWG Download PDF

Features

How Does NU 29/950 ECMA Bearing Handle Combined Loads?

NU 29/950 ECMA Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 1,311,750 lbf, making it suitable for heavy-duty industrial applications.
The brass cage, centred on the outer ring, ensures smooth operation and reduces wear.
With a temperature range of -30° to 110°C, it performs reliably in various environmental conditions.

Application

Industrial Uses of NU 29/950 ECMA Bearing
NU 29/950 ECMA Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its high radial load capacity is essential. The brass cage design helps reduce friction, ensuring smoother operation in demanding conditions.

Where Is NU 29/950 ECMA Bearing Used?
You’ll often find NU 29/950 ECMA Bearing in wind turbine systems, where its ability to handle combined loads makes it a reliable choice. The chrome steel construction also provides excellent durability in harsh outdoor environments.

Built for Heavy-Duty Use: NU 29/950 ECMA Bearing
NU 29/950 ECMA Bearing excels in mining equipment, supporting massive loads in crushers and conveyors. Its open design allows for easy lubrication, extending service life even under constant stress.

Automotive vs Aerospace: Applications of NU 29/950 ECMA Bearing
In automotive applications, NU 29/950 ECMA Bearing is suited for large commercial vehicle transmissions, while in aerospace, it’s used in ground support equipment. The metric sizing ensures compatibility with a wide range of machinery.

Perfect Fit for Automation: NU 29/950 ECMA Bearing
NU 29/950 ECMA Bearing is ideal for automated production lines, particularly in steel manufacturing, where precision and reliability are key. The brass cage adds stability, reducing maintenance needs over time.
