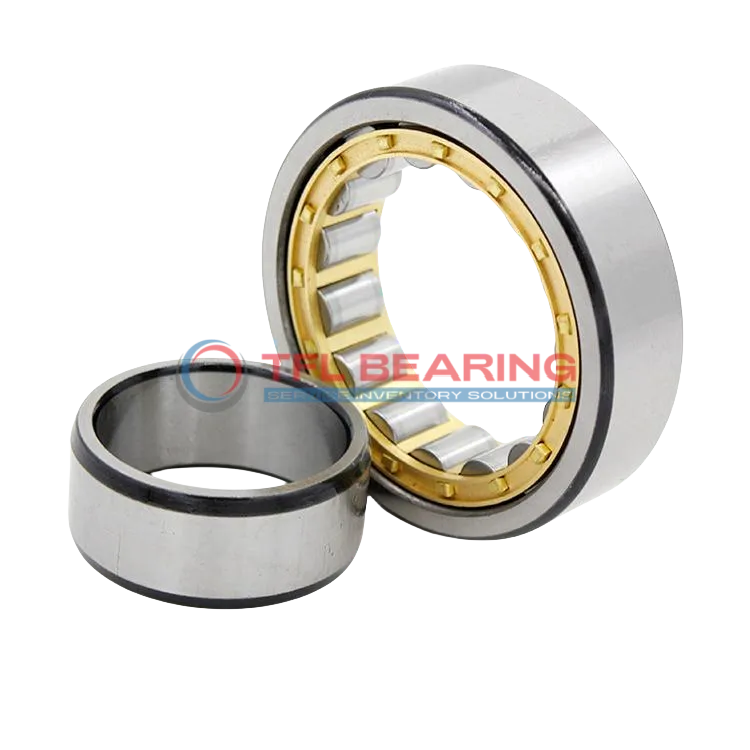

Single Row Cylindrical Roller Bearings With Inner Ring NU 2309 ECML

Brand: TFL Bearing Interchangeable: SKF NU 2309 ECML 45 mm × 100 mm × 36 mm Metric Open
Part number: NU 2309 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NU 2309 ECML
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia45 mm
Bore Dia Tolerance-0.012mm to 0
Outer Dia100 mm
Outer Dia Tolerance-0.015mm to 0
Width36 mm
Width Tolerance-0.12mm to 0
Chamfer Dimension r1,2(min.)1.5 mm
Chamfer Dimension r3,4(min.)1.5 mm
Shoulder Dia Of Outer Ring83.75 mm
Raceway Diameter Of Inner Ring58.5 mm
Performance
Dynamic Radial Load36,000 lbf
Static Radial Load34,425 lbf
Temperature Range-30° to 110 °C
Max Speed13,000 rpm
Characteristics
Permissible Axial Displacement(max.)3.2 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight1.46 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, inner or outer ring centred
Compliance
RoHSCompliant
REACHCompliant

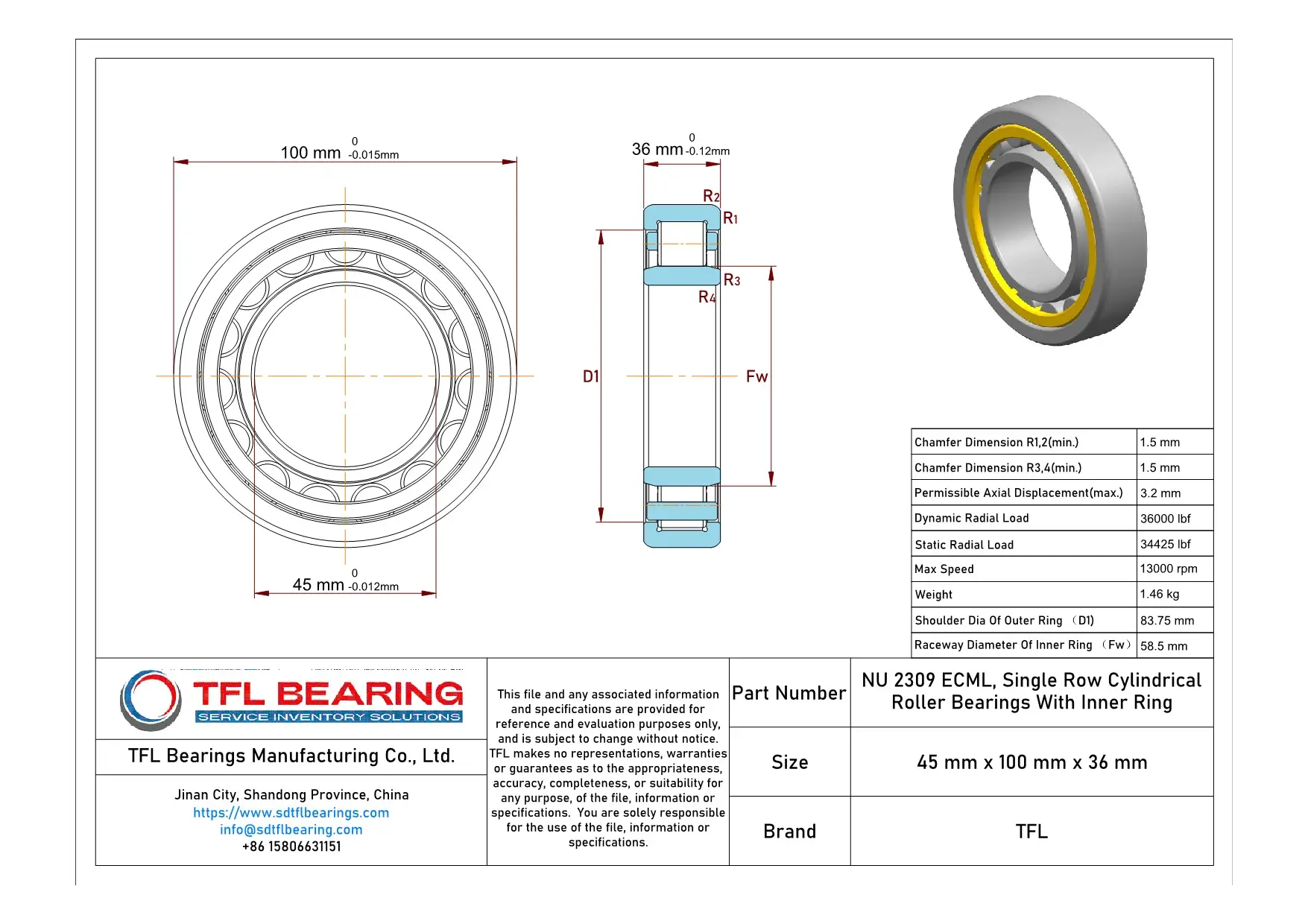

Dimension drawing · click to enlarge

Description

The NU 2309 ECML is a single-row cylindrical roller bearing with a 45mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 36000 lbf and reaches speeds of 13000 RPM.

Its brass cage ensures smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

With a compact width of 36mm and a weight of 1.46kg, it’s a practical choice for heavy-duty applications. Ideal for machinery like pumps or gearboxes where radial and axial loads are present.

Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacements. The chamfered edges (1.5mm) simplify installation in tight spaces.
