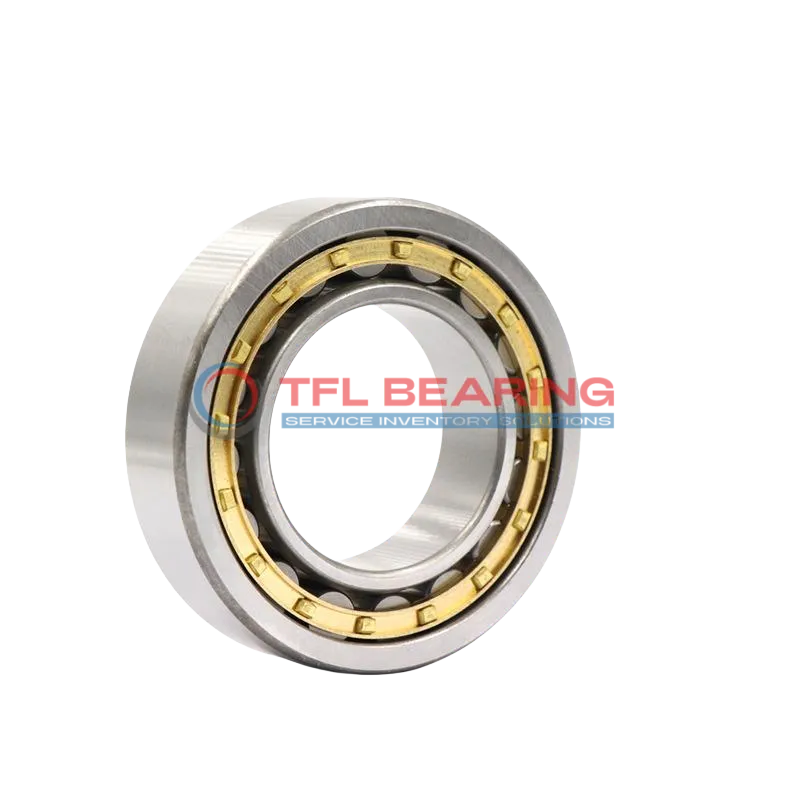

Single Row Cylindrical Roller Bearings With Inner Ring NU 2217 ECML

Brand: TFL Bearing Interchangeable: SKF NU 2217 ECML 85 mm × 150 mm × 36 mm Metric Open
Part number: NU 2217 ECML
Single Row Cylindrical Roller Bearings With Inner Ring NU 2217 ECML
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia85 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia150 mm
Outer Dia Tolerance-0.018mm to 0
Width36 mm
Width Tolerance-0.20mm to 0
Chamfer Dimension r1,2(min.)2 mm
Chamfer Dimension r3,4(min.)2 mm
Shoulder Dia Of Outer Ring131.05 mm
Raceway Diameter Of Inner Ring100.5 mm
Performance
Dynamic Radial Load56,250 lbf
Static Radial Load63,000 lbf
Temperature Range-30° to 110 °C
Max Speed8,000 rpm
Characteristics
Permissible Axial Displacement(max.)2 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight2.79 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, inner or outer ring centred
Compliance
RoHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The NU 2217 ECML is a single row cylindrical roller bearing with an 85mm bore and 150mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 56250 lbf and reaches speeds of 8000 RPM.

Its brass cage design ensures smooth operation, while the open seal allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or heavy equipment where radial and axial loads are present.

Weighing 2.79kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of NU 2217 ECML Bearing

NU 2217 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 56250 lbf, ensuring reliable performance in demanding conditions.

The brass cage design keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 8000 rpm, it balances durability and efficiency for various applications.

NU 2217 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 2 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NU 2217 ECML Bearing
NU 2217 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it a reliable choice for demanding environments.

Where Is NU 2217 ECML Bearing Used?
In automotive applications, NU 2217 ECML Bearing supports components such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric dimensions make it compatible with a variety of vehicle designs, ensuring versatility across different models.

Built for Heavy-Duty Use: NU 2217 ECML Bearing
NU 2217 ECML Bearing excels in conveyor systems and mining equipment, where its ability to handle combined loads is essential. The open design allows for easy lubrication, extending the bearing’s lifespan in harsh conditions.

Automotive vs Aerospace: Applications of NU 2217 ECML Bearing
While NU 2217 ECML Bearing is popular in automotive systems for its durability, it also finds use in aerospace applications like auxiliary power units. Its high-speed capability and temperature resistance make it suitable for both industries.

Perfect Fit for Automation: NU 2217 ECML Bearing
NU 2217 ECML Bearing is ideal for robotic arms and automated production lines, where precision and reliability are key. The brass cage reduces friction, ensuring smooth movement in repetitive tasks.
