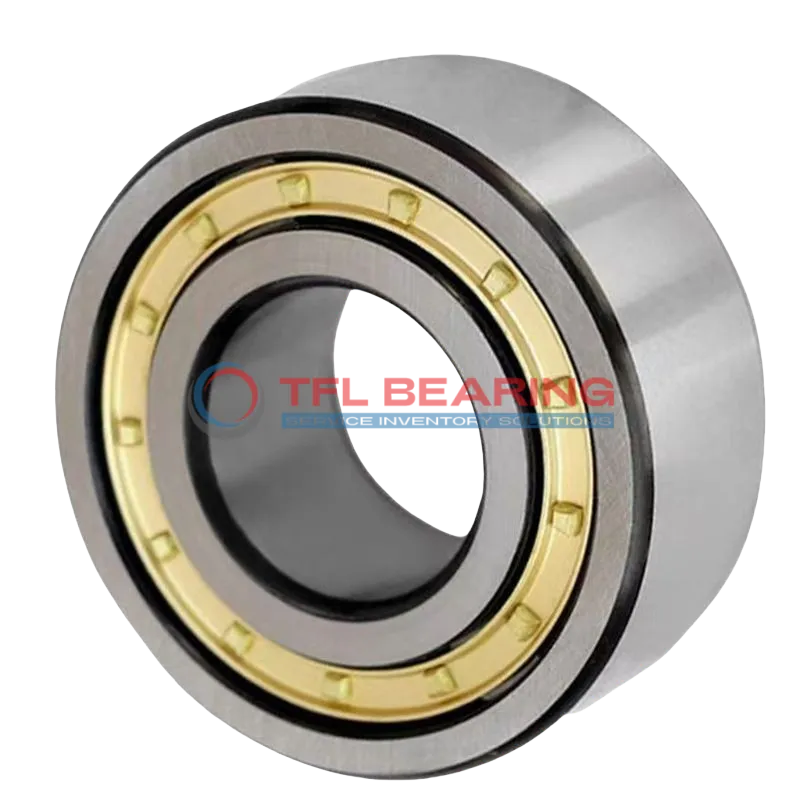

Single Row Cylindrical Roller Bearings With Inner Ring NU 211 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NU 211 ECM

The NU 211 ECM is a single-row cylindrical roller bearing with a 55mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 21712 lbf and reaches speeds of 8000 RPM.

Its brass cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

With a compact width of 21mm, it fits well in tight spaces. This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery or gearboxes where radial and axial loads are present.

Weighing 0.77kg, it offers a sturdy build without being overly heavy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 211 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 21 mm
  • Width Tolerance -0.15mm to 0
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 21712 lbf
  • Static Radial Load 21375 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 0.77 kg
  • Shoulder Dia Of Outer Ring 85.68 mm
  • Raceway Diameter Of Inner Ring 66 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 211 ECM dimension drawing
Download DWG Download PDF

Features

How Does NU 211 ECM Bearing Handle Combined Loads?

NU 211 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 21712 lbf, ensuring reliable performance in demanding conditions.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 8000 rpm, it delivers durability and efficiency in various applications.

Application

Industrial Uses of NU 211 ECM Bearing
NU 211 ECM Bearing is commonly used in industrial machinery like conveyor systems and gearboxes, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds.

Where Is NU 211 ECM Bearing Used?
You’ll often find NU 211 ECM Bearing in automotive applications, particularly in transmissions and wheel hubs. Its chrome steel construction provides durability under heavy radial loads.

Built for Heavy-Duty Use: NU 211 ECM Bearing
NU 211 ECM Bearing excels in heavy machinery such as crushers and presses, thanks to its robust design. The open seal type allows for easy lubrication, extending its service life.

Automotive vs Industrial: Applications of NU 211 ECM Bearing
In automotive settings, NU 211 ECM Bearing supports high-speed components like drivetrains. For industrial use, it’s ideal for pumps and compressors where reliability is key.

Perfect Fit for Automation: NU 211 ECM Bearing
NU 211 ECM Bearing works well in robotic arms and automated assembly lines. Its precise dimensions ensure consistent performance in repetitive motion tasks.
