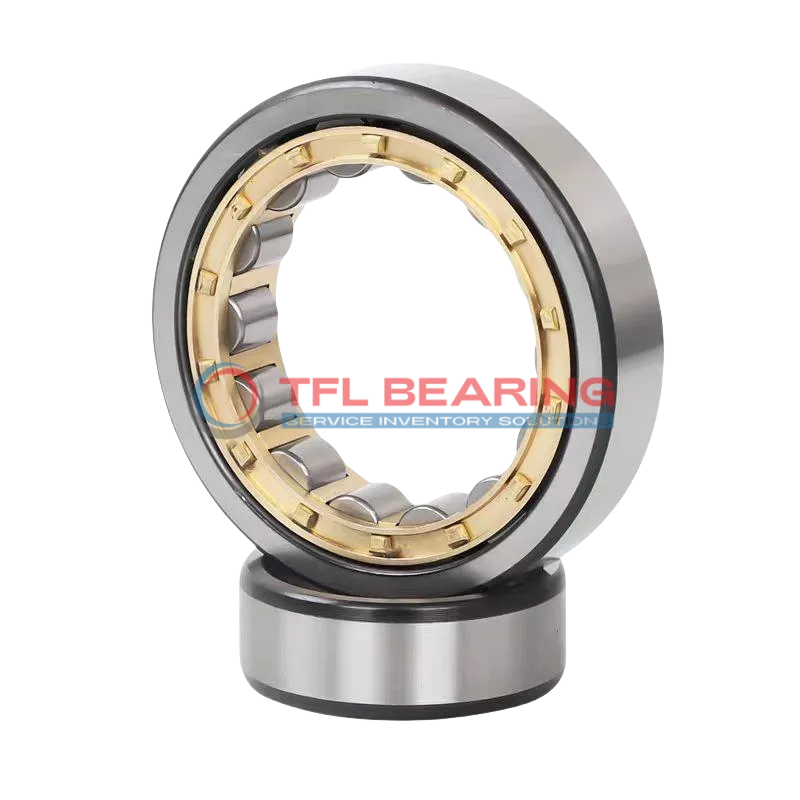

Single Row Cylindrical Roller Bearings With Inner Ring NU 2096 ECMA

Single Row Cylindrical Roller Bearings With Inner Ring NU 2096 ECMA

The NU 2096 ECMA is a single-row cylindrical roller bearing with a large 480mm bore and 700mm outer diameter, built from tough chrome steel. It handles combined loads up to 643500 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage design ensures durability, while the open seal allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where high radial loads are common.

Weighing 179kg, it’s a robust option for demanding applications. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 2096 ECMA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 700 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 128 mm
  • Width Tolerance -0.45mm to 0
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 12.7 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 643500 lbf
  • Static Radial Load 1260000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 179 kg
  • Shoulder Dia Of Outer Ring 629 mm
  • Raceway Diameter Of Inner Ring 533 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 2096 ECMA dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 2096 ECMA Bearing

NU 2096 ECMA Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 643,500 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth operation and reduces friction, enhancing longevity.
With a maximum speed of 1,000 rpm, it delivers reliable performance in various industrial settings.

Application

Key Fields for NU 2096 ECMA Bearing
NU 2096 ECMA Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its high radial load capacity is essential. The brass cage design helps reduce friction, making it suitable for continuous operation.

In wind turbine applications, NU 2096 ECMA Bearing handles the combined loads from rotor blades efficiently. Its chrome steel construction ensures durability even in harsh outdoor conditions.

For mining equipment, NU 2096 ECMA Bearing’s robust design supports crushers and conveyors under extreme loads. The wide temperature range allows it to perform reliably in varying environments.

NU 2096 ECMA Bearing also fits well in paper manufacturing machinery, where precision and longevity are critical. The open seal type simplifies lubrication maintenance during prolonged use.
