Single Row Cylindrical Roller Bearings With Inner Ring NU 208 ECM

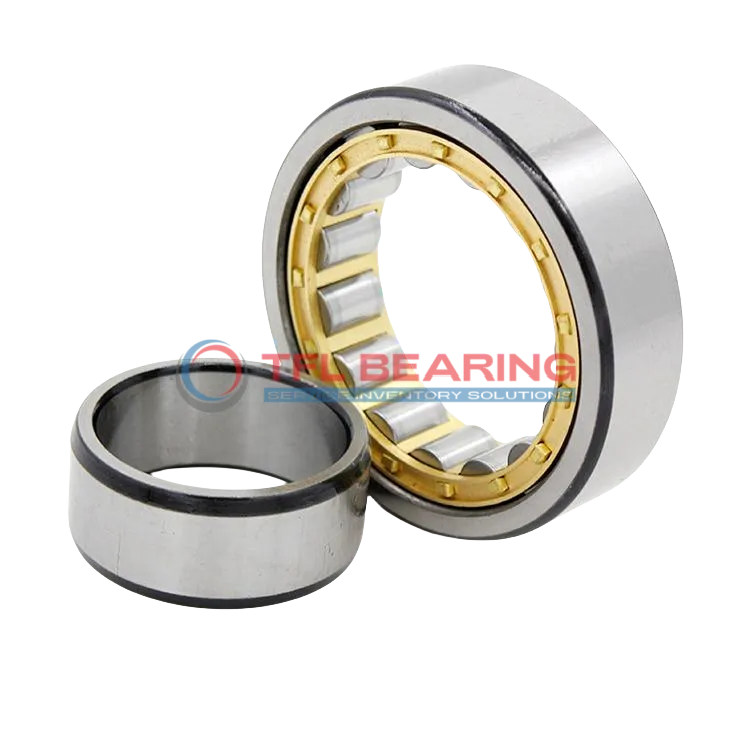

Single Row Cylindrical Roller Bearings With Inner Ring NU 208 ECM

The NU 208 ECM is a single row cylindrical roller bearing with a 40mm bore and 80mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 13950 lbf and spins smoothly at speeds up to 11000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates reliably in temperatures from -30°C to 110°C.

With a compact width of 18mm, it fits neatly into tight spaces. The chamfered edges (1.1mm) simplify installation. Compliant with RoHS and REACH standards, it’s a safe choice for various applications.

Ideal for machinery like pumps or gearboxes where radial and axial loads are present. Its interchangeability with SKF bearings makes it a practical replacement option. Weighing 0.43kg, it balances strength and portability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 208 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.4 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 13950 lbf
  • Static Radial Load 11925 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 0.43 kg
  • Shoulder Dia Of Outer Ring 67.4 mm
  • Raceway Diameter Of Inner Ring 49.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 208 ECM dimension drawing
Download DWG Download PDF

Features

How Does NU 208 ECM Bearing Handle Combined Loads?

NU 208 ECM Bearing is crafted with chrome steel rings and rollers, offering robust resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 13,950 lbf, ensuring dependable performance in varied applications.
The brass cage keeps the rollers centred, reducing friction and enhancing longevity.
With a maximum speed of 11,000 rpm, it delivers a balance of durability and efficiency.

Application

Industrial Uses of NU 208 ECM Bearing
NU 208 ECM Bearing is commonly used in industrial machinery like conveyor systems and gearboxes, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth rotation even at high speeds, making it reliable for continuous operation.

What Makes NU 208 ECM Bearing a Preferred Choice?
In automotive applications, NU 208 ECM Bearing supports components such as transmissions and differentials, thanks to its high dynamic radial load capacity. Its open design allows for easy lubrication, extending service life in demanding conditions.

Perfect Fit for Automation: NU 208 ECM Bearing
For robotic arms and automated production lines, NU 208 ECM Bearing offers precise movement with minimal friction. The chrome steel construction provides durability, ensuring consistent performance in repetitive tasks.

Medical vs Industrial: Where NU 208 ECM Bearing Excels
While NU 208 ECM Bearing is versatile for industrial equipment, its precision also suits medical devices like diagnostic machines. The grease or oil lubrication options adapt to different operational needs, maintaining reliability.

Essential Roles of NU 208 ECM Bearing
In household appliances like washing machines, NU 208 ECM Bearing reduces vibration and noise during high-speed spinning cycles. Its metric sizing ensures compatibility with a wide range of consumer products.
