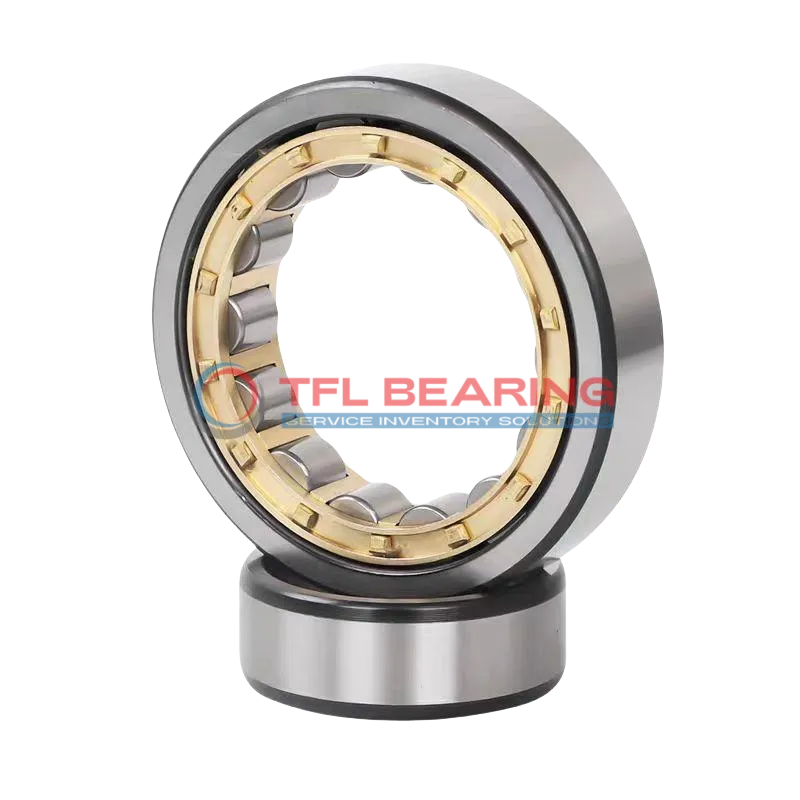

Single Row Cylindrical Roller Bearings With Inner Ring NU 1996 MA

Single Row Cylindrical Roller Bearings With Inner Ring NU 1996 MA

The NU 1996 MA is a single row cylindrical roller bearing with a 480mm bore and 650mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 263250 lbf and operates smoothly at speeds up to 1000 RPM.

Its brass cage design ensures stability, while the open construction allows for easy lubrication with grease or oil. The bearing performs well in temperatures ranging from -30°C to 110°C.

With a weight of 76kg, this robust bearing is built for heavy-duty applications. It’s interchangeable with SKF models, making it a reliable choice for replacements.

Ideal for industrial machinery or large equipment where high radial loads and axial displacement up to 6.5mm are expected. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 1996 MA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 78 mm
  • Width Tolerance -0.45mm to 0
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 6.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 263250 lbf
  • Static Radial Load 504000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 76 kg
  • Shoulder Dia Of Outer Ring 592 mm
  • Raceway Diameter Of Inner Ring 525 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 1996 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 1996 MA Bearing

NU 1996 MA Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 263,250 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 1,000 rpm, it balances durability and efficiency in demanding conditions.

NU 1996 MA Bearing operates smoothly in temperatures from -30° to 110°C, making it versatile for various environments.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 5 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NU 1996 MA Bearing
NU 1996 MA Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.

In wind turbine applications, NU 1996 MA Bearing provides reliable performance due to its robust chrome steel construction. Its large bore size and metric dimensions make it a preferred choice for renewable energy equipment.

For mining equipment, NU 1996 MA Bearing’s ability to withstand combined loads makes it ideal for crushers and conveyors. The open seal design allows for easy lubrication, extending service life in harsh environments.

Automotive vs Aerospace: Applications of NU 1996 MA Bearing
In automotive manufacturing, NU 1996 MA Bearing supports large presses and stamping machines, where precision and durability are key. Its high static radial load capacity ensures stability during heavy operations.

In aerospace, NU 1996 MA Bearing is less common but finds use in ground support equipment like aircraft tugs. The temperature range and grease lubrication options suit varied operational conditions.

What Makes NU 1996 MA Bearing a Preferred Choice?
NU 1996 MA Bearing’s single-row design simplifies installation in industrial settings, saving time during maintenance. The chrome steel rollers and rings offer excellent wear resistance for long-term use.

Its compatibility with both grease and oil lubrication adds versatility, making it suitable for diverse applications. The large size and weight are balanced by its impressive load-bearing capabilities.
