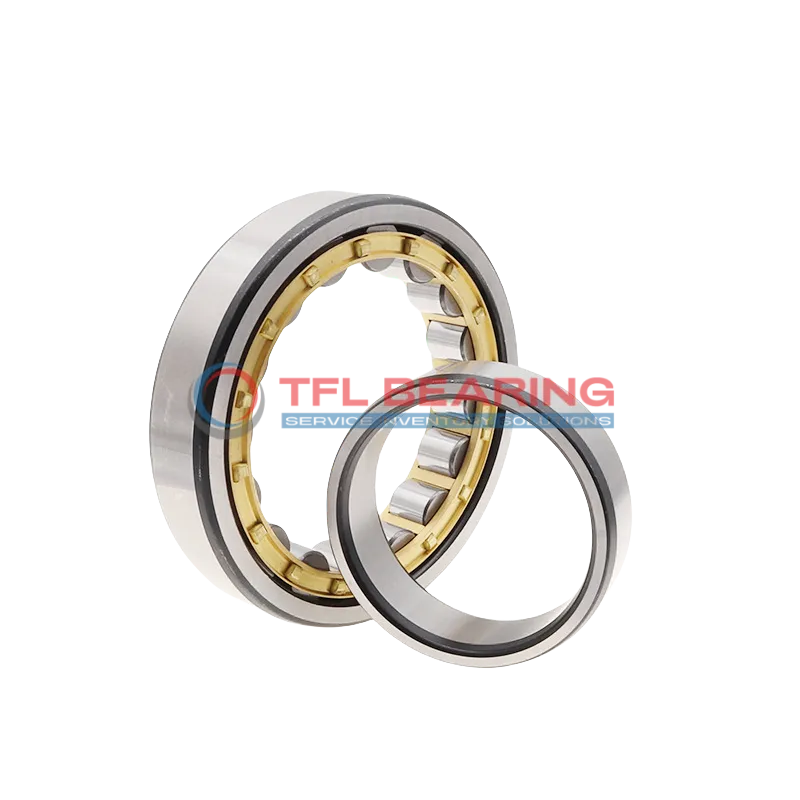

Single Row Cylindrical Roller Bearings With Inner Ring NU 1034 M

Brand: TFL Bearing Interchangeable: SKF NU 1034 M 170 mm × 260 mm × 42 mm Metric Open
Part number: NU 1034 M
Single Row Cylindrical Roller Bearings With Inner Ring NU 1034 M
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia170 mm
Bore Dia Tolerance-0.025mm to 0
Outer Dia260 mm
Outer Dia Tolerance-0.035mm to 0
Width42 mm
Width Tolerance-0.25mm to 0
Chamfer Dimension r1,2(min.)2.1 mm
Chamfer Dimension r3,4(min.)2.1 mm
Shoulder Dia Of Outer Ring225.95 mm
Raceway Diameter Of Inner Ring193 mm
Performance
Dynamic Radial Load72,000 lbf
Static Radial Load90,000 lbf
Temperature Range-30° to 110 °C
Max Speed3,000 rpm
Characteristics
Permissible Axial Displacement(max.)5.8 mm
System of MeasurementMetric
Roller Bearing TypeCylindrical
For Load DirectionCombined
ConstructionSingle Row
Inner Ring TypeWith Inner Ring
Seal TypeOpen
LubricationGrease, Oil
Weight8.07 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass cage, roller centred
Compliance
RoHSCompliant
REACHCompliant

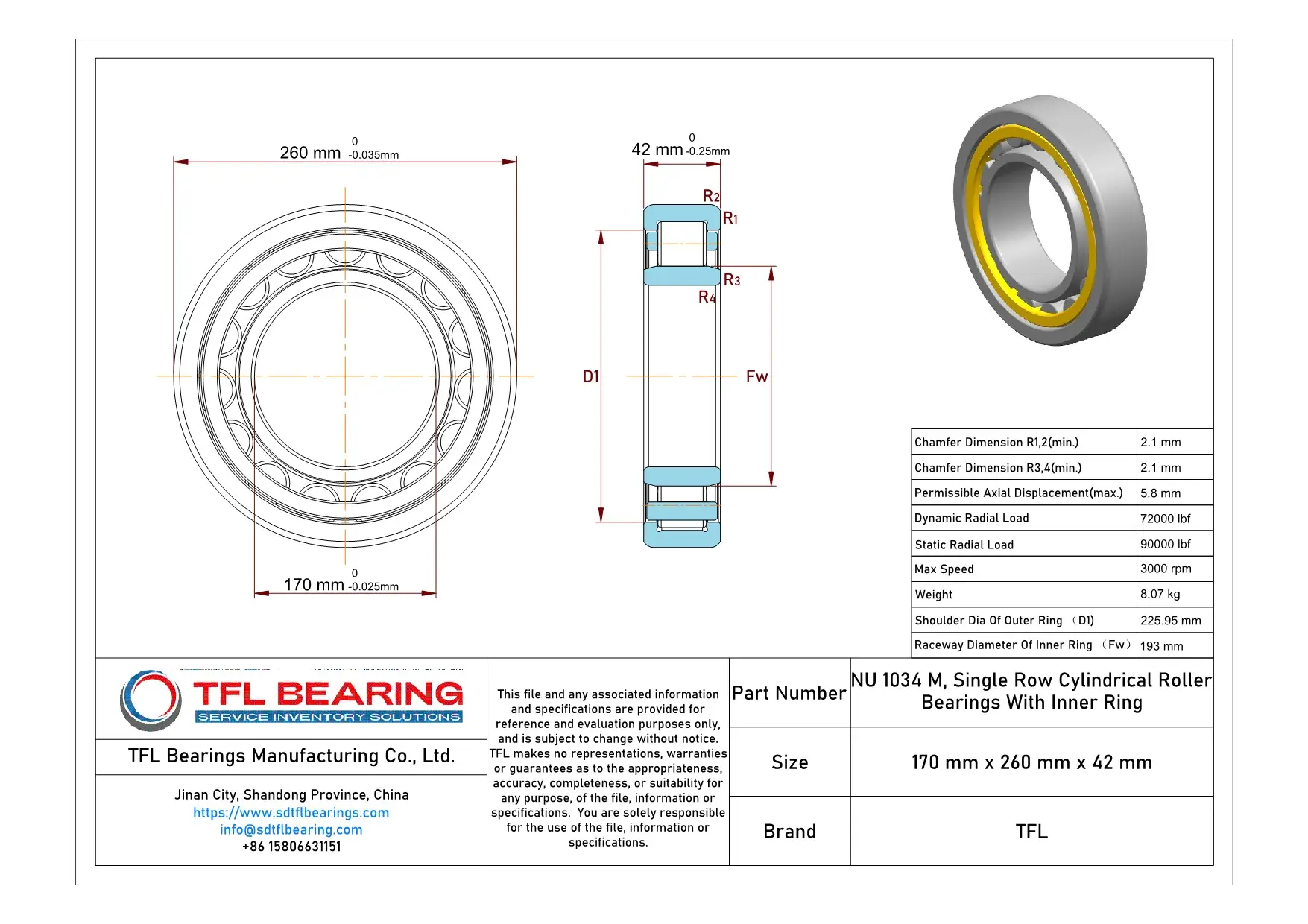

Dimension drawing · click to enlarge

Description

The NU 1034 M is a single row cylindrical roller bearing with a 170mm bore and 260mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 72000 lbf and operates smoothly at speeds up to 3000 RPM.

Its brass cage design ensures reliable performance, while the open seal allows for easy lubrication with grease or oil. The bearing works well in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or gearboxes where radial and axial loads are present.

Weighing 8.07kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Features

Performance Features of NU 1034 M Bearing

NU 1034 M Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 72,000 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 3,000 rpm, it balances durability and efficiency in various industrial settings.

NU 1034 M Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 2.1 mm ensure easy installation and alignment.
This makes NU 1034 M Bearing a practical choice for machinery requiring high load capacity and reliability.

Application

Industrial Uses of NU 1034 M Bearing
NU 1034 M Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at speeds up to 3000 rpm.

Where Is NU 1034 M Bearing Used?
You’ll often find NU 1034 M Bearing in conveyor systems and mining equipment, thanks to its robust chrome steel construction. Its open design allows for easy lubrication, making it ideal for harsh environments.

Built for Heavy-Duty Use: NU 1034 M Bearing
NU 1034 M Bearing excels in applications like paper mill machinery and steel rolling mills, where combined loads are common. The 170 mm bore size makes it suitable for large shafts in industrial settings.

Automotive vs Aerospace: Applications of NU 1034 M Bearing
In automotive applications, NU 1034 M Bearing supports large drivetrain components, while its precision makes it useful in aerospace landing gear systems. The temperature range of -30° to 110°C ensures reliability in varied conditions.

Perfect Fit for Automation: NU 1034 M Bearing
NU 1034 M Bearing is a reliable choice for robotic arms and automated production lines, where its low friction and high load capacity are key. The metric dimensions ensure compatibility with standard industrial equipment.
