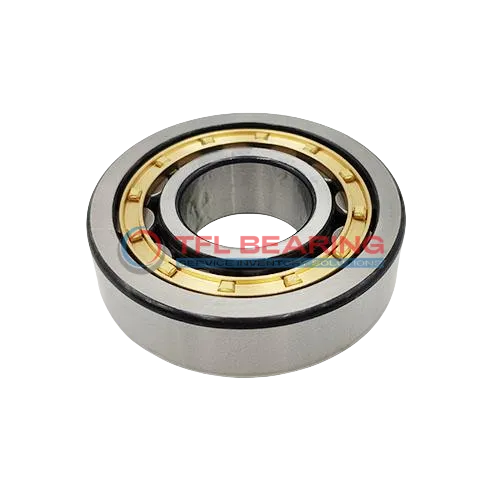

Single Row Cylindrical Roller Bearings With Inner Ring NU 10/560 MA

Single Row Cylindrical Roller Bearings With Inner Ring NU 10/560 MA

The NU 10/560 MA is a single row cylindrical roller bearing with a large 560mm bore and 820mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 524250 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage design ensures durability, while the open structure allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial loads are common.

Weighing 210kg, it’s a robust bearing designed for long-lasting performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 10/560 MA
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 560 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 820 mm
  • Outer Dia Tolerance -0.10mm to 0
  • Width 115 mm
  • Width Tolerance -0.50mm to 0
  • Chamfer Dimension r1,2(min.) 6 mm
  • Permissible Axial Displacement(max.) 12.3 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, outer ring centred
  • Dynamic Radial Load 524250 lbf
  • Static Radial Load 956250 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 210 kg
  • Shoulder Dia Of Outer Ring 726 mm
  • Raceway Diameter Of Inner Ring 625 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 10/560 MA dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 10/560 MA Bearing

NU 10/560 MA Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 524,250 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage keeps the rollers aligned, reducing wear and extending service life.
With a maximum speed of 1,000 rpm, it balances durability and efficiency in demanding conditions.

NU 10/560 MA Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise chamfer dimensions of 6 mm ensure easy installation and alignment.
This bearing is ideal for applications requiring high radial load capacity and long service life.

Application

Industrial Uses of NU 10/560 MA Bearing
NU 10/560 MA Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.

Where Is NU 10/560 MA Bearing Used?
In wind turbines, NU 10/560 MA Bearing supports the main shaft, providing reliable performance in variable weather conditions. Its chrome steel construction offers durability for long-term use in renewable energy applications.

Built for Heavy-Duty Use: NU 10/560 MA Bearing
NU 10/560 MA Bearing excels in mining equipment, where its robust design withstands extreme loads and vibrations. The open seal type allows for easy lubrication, extending service life in harsh environments.

Automotive vs Aerospace: Applications of NU 10/560 MA Bearing
In automotive manufacturing, NU 10/560 MA Bearing is found in large presses and stamping machines, ensuring precision under heavy loads. For aerospace, it’s used in ground support equipment, where reliability is key.

Essential Roles of NU 10/560 MA Bearing
NU 10/560 MA Bearing plays a vital role in paper mills, supporting large rollers that require consistent performance. Its metric sizing and high load capacity make it a versatile choice for industrial applications.
