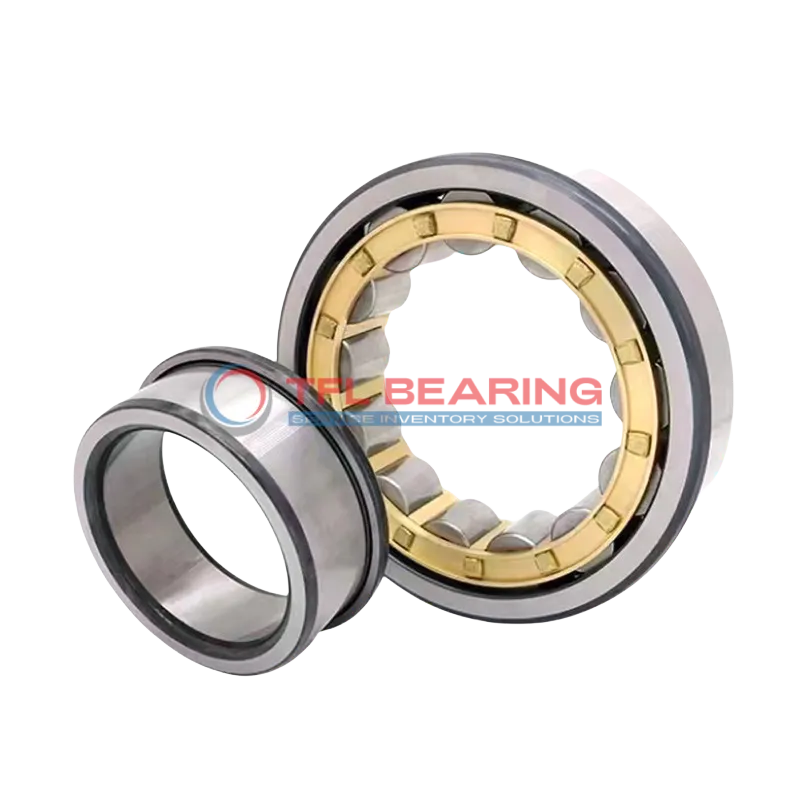

Single Row Cylindrical Roller Bearings With Inner Ring NJ 312 ECM

Single Row Cylindrical Roller Bearings With Inner Ring NJ 312 ECM

The NJ 312 ECM is a single row cylindrical roller bearing with a 60mm bore and 130mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 38925 lbf and runs smoothly at speeds up to 7000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like gearboxes or industrial machinery where radial and axial loads are present.

Weighing 2.18kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 312 ECM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.15mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.15mm to 0
  • Shoulder Dia Of Inner Ring 84.3 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Chamfer Dimension r3,4(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 2.1 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 38925 lbf
  • Static Radial Load 36000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 7000 rpm
  • Weight 2.18 kg
  • Shoulder Dia Of Outer Ring 108.6 mm
  • Raceway Diameter Of Inner Ring 77 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 312 ECM dimension drawing
Download DWG Download PDF

Features

How Does NJ 312 ECM Bearing Handle Combined Loads?

NJ 312 ECM Bearing features a chrome steel construction, providing excellent resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 38,925 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth roller movement, reducing friction and extending bearing life.
With a maximum speed of 7,000 rpm, it offers reliable performance in various industrial settings.

Application

Key Fields for NJ 312 ECM Bearing
NJ 312 ECM Bearing is widely used in industrial machinery, such as gearboxes and electric motors, where its cylindrical roller design handles combined loads efficiently. The brass cage ensures smooth operation even at high speeds.

In automotive applications, NJ 312 ECM Bearing fits well in transmission systems, providing reliable performance under heavy radial and axial loads. Its chrome steel construction offers durability for long-term use.

For automation equipment, NJ 312 ECM Bearing supports robotic arms and conveyor systems, thanks to its precise tolerances. The open design allows for easy lubrication, extending service life.

Medical devices like MRI machines benefit from NJ 312 ECM Bearing’s stability and low noise. The grease or oil lubrication options make it versatile for different environments.

Household appliances, such as washing machines, often use NJ 312 ECM Bearing for its quiet operation. The metric sizing ensures compatibility with various European models.
