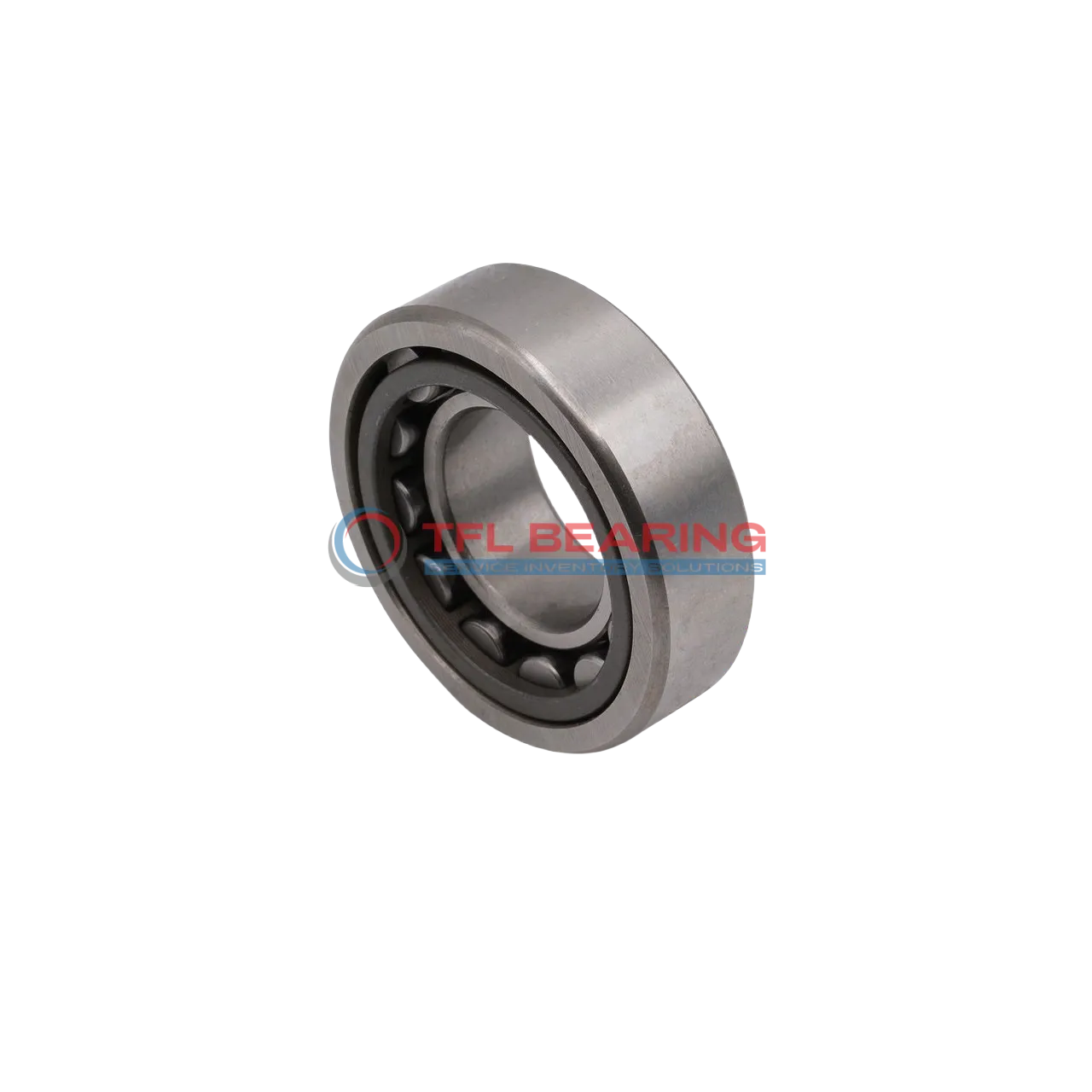

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2309 ECP

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2309 ECP

The NJ 2309 ECP is a single-row cylindrical roller bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 36000 lbf and reaches speeds of 8000 RPM.

Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs reliably in temperatures from -30°C to 110°C.

With a 36mm width and 1.33kg weight, it’s compact yet robust for its size. The inner ring design helps with axial displacement up to 3.2mm.

Ideal for industrial machinery or gearboxes where high radial loads and moderate axial shifts are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 2309 ECP
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 36 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 64.4 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 3.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PA66 cage, roller centred
  • Dynamic Radial Load 36000 lbf
  • Static Radial Load 34425 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 8000 rpm
  • Weight 1.33 kg
  • Shoulder Dia Of Outer Ring 83.2 mm
  • Raceway Diameter Of Inner Ring 58.5 mm

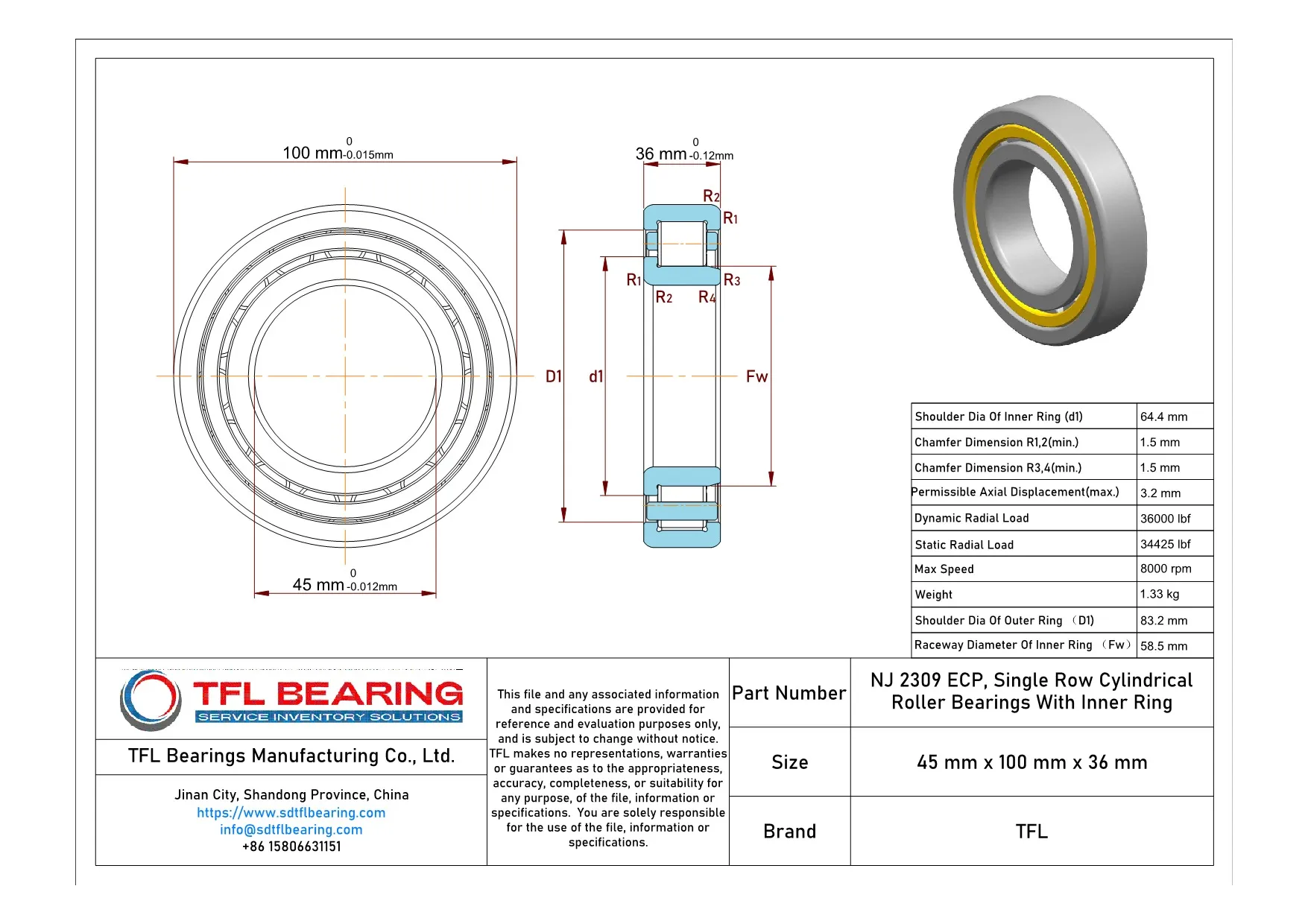

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2309 ECP dimension drawing
Download DWG Download PDF

Features

How Does NJ 2309 ECP Bearing Handle Combined Loads?

NJ 2309 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 36000 lbf, ensuring reliable performance in demanding conditions.
The PA66 cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 8000 rpm, it balances durability and efficiency.

Application

Essential Roles of NJ 2309 ECP Bearing
NJ 2309 ECP Bearing is commonly used in industrial machinery like gearboxes and electric motors, where its cylindrical roller design handles combined loads efficiently. The open seal type simplifies lubrication, making it suitable for high-speed operations up to 8000 rpm.

In automotive applications, NJ 2309 ECP Bearing supports drivetrain components, ensuring smooth power transmission under heavy radial loads. Its chrome steel construction offers durability, while the PA66 cage reduces friction for better performance.

For automation systems, NJ 2309 ECP Bearing fits well in robotic arms and conveyor belts, thanks to its precise axial displacement tolerance. The metric sizing ensures compatibility with a wide range of European and Asian equipment.

Medical imaging devices benefit from NJ 2309 ECP Bearing’s reliable performance, where consistent rotation is critical. The grease or oil lubrication options provide flexibility for different operating conditions.

In household appliances like washing machines, NJ 2309 ECP Bearing’s robust design ensures long service life. The temperature range of -30° to 110°C makes it adaptable to various environments.
