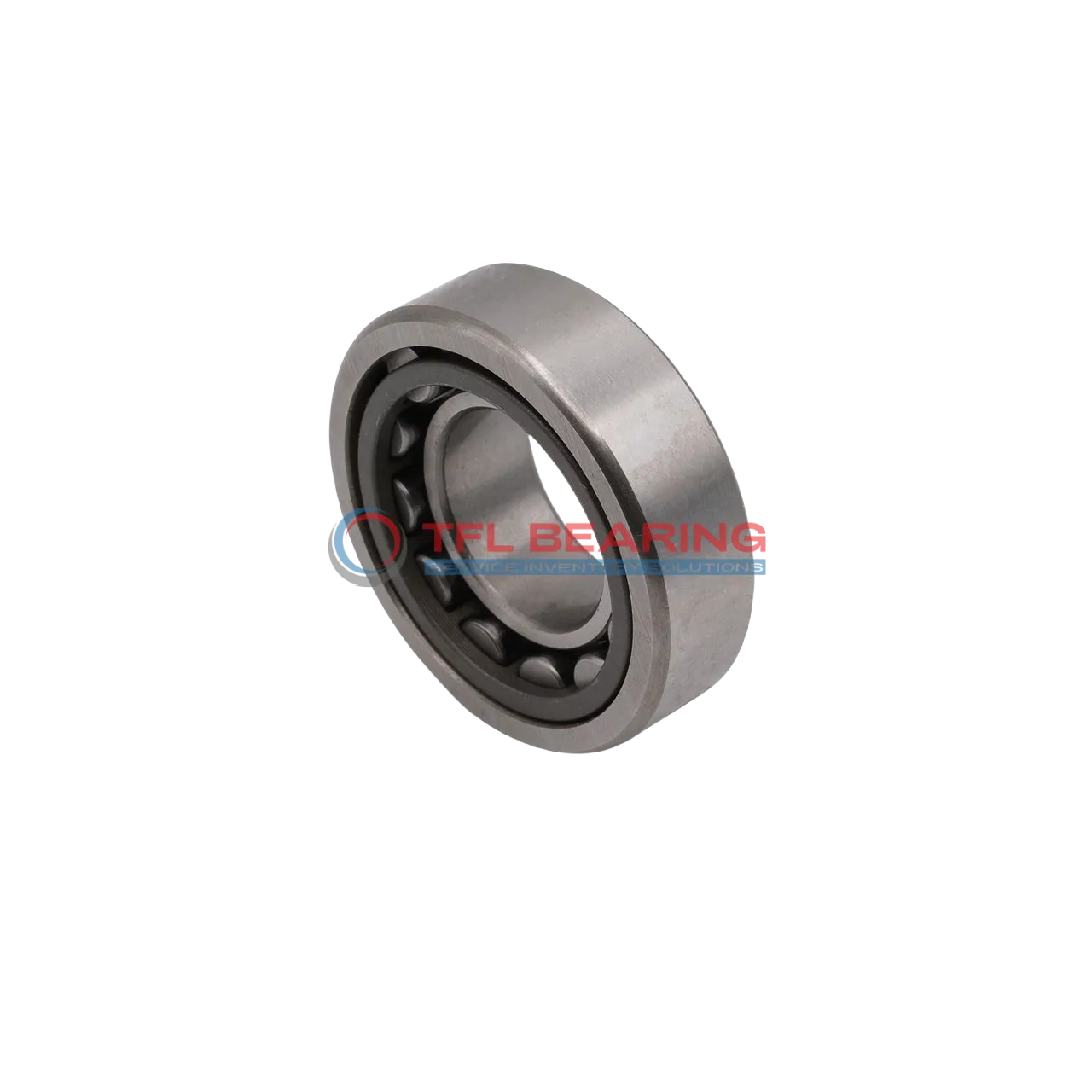

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2308 ECPH

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2308 ECPH

The NJ 2308 ECPH is a single row cylindrical roller bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 29025 lbf and reaches speeds of 10000 RPM.

Its PEEK cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing works reliably in temperatures from -30°C to 110°C.

With a 33mm width and 0.95kg weight, it’s compact yet robust for industrial use. The inner ring design ensures stability under axial displacement up to 2.9mm.

Ideal for heavy machinery or gearboxes where radial and axial loads are present. Compliant with RoHS and REACH standards, it’s a practical choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 2308 ECPH
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 57.5 mm
  • Chamfer Dimension r1,2(min.) 1.5 mm
  • Chamfer Dimension r3,4(min.) 1.5 mm
  • Permissible Axial Displacement(max.) 2.9 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PEEK cage, roller centred
  • Dynamic Radial Load 29025 lbf
  • Static Radial Load 27000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 10000 rpm
  • Weight 0.95 kg
  • Shoulder Dia Of Outer Ring 75.18 mm
  • Raceway Diameter Of Inner Ring 52 mm

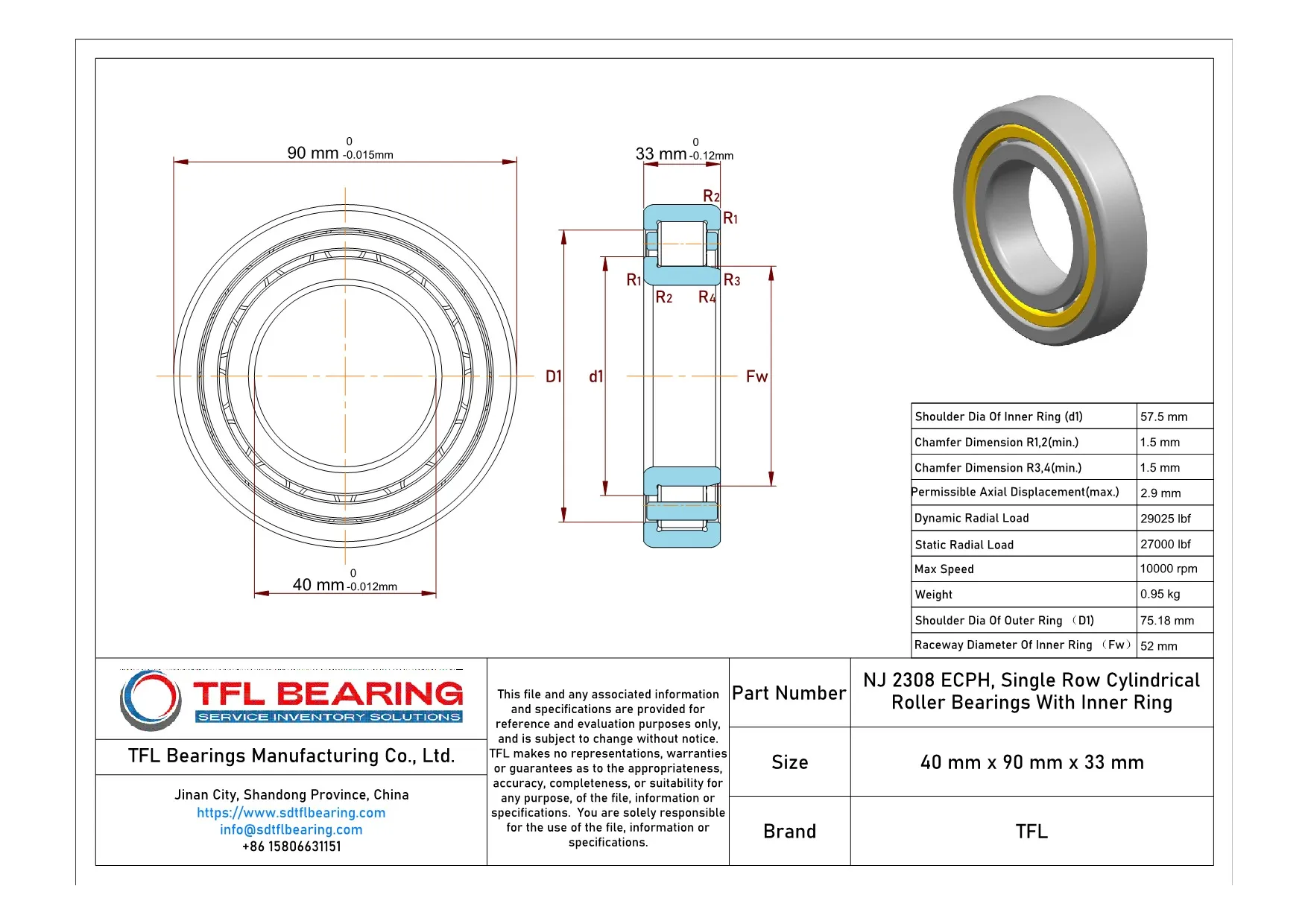

Single Row Cylindrical Roller Bearings With Inner Ring NJ 2308 ECPH dimension drawing
Download DWG Download PDF

Features

Performance Features of NJ 2308 ECPH Bearing

NJ 2308 ECPH Bearing is designed with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 29025 lbf, ensuring reliable performance in demanding conditions.
The PEEK cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 10,000 rpm, it balances durability and efficiency for various applications.

Application

Industrial Uses of NJ 2308 ECPH Bearing
NJ 2308 ECPH Bearing is commonly used in heavy machinery like industrial gearboxes and pumps, where its cylindrical roller design handles high radial loads efficiently. The PEEK cage ensures smooth operation even at high speeds, making it suitable for demanding environments.

Where Is NJ 2308 ECPH Bearing Used?
In automotive applications, NJ 2308 ECPH Bearing supports components such as transmissions and differentials, providing reliable performance under combined loads. Its chrome steel construction offers durability, while the open design allows for easy lubrication.

Perfect Fit for Automation: NJ 2308 ECPH Bearing
NJ 2308 ECPH Bearing works well in robotic arms and automated assembly lines, where precision and load capacity are key. The metric dimensions ensure compatibility with a wide range of equipment, simplifying integration.

Medical vs Industrial: Where NJ 2308 ECPH Bearing Excels
While NJ 2308 ECPH Bearing is ideal for industrial machinery, its precision also makes it suitable for medical imaging devices. The temperature range and material quality ensure consistent performance in both settings.

Essential Roles of NJ 2308 ECPH Bearing
NJ 2308 ECPH Bearing is a go-to choice for conveyor systems, thanks to its ability to handle heavy radial loads. The grease or oil lubrication options provide flexibility depending on operational needs.
