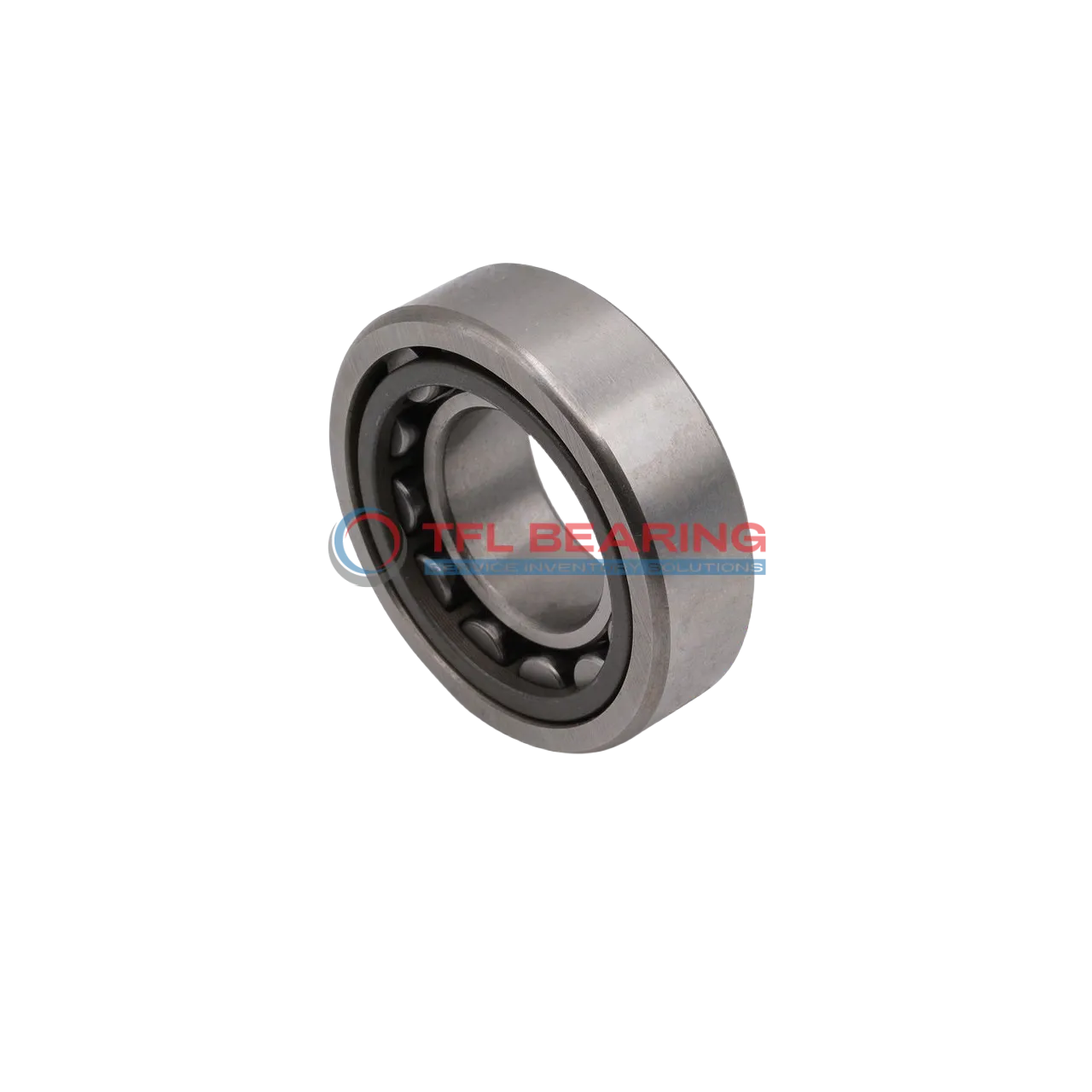

Single Row Cylindrical Roller Bearings With Inner Ring NJ 210 ECPH

Single Row Cylindrical Roller Bearings With Inner Ring NJ 210 ECPH

The NJ 210 ECPH is a single-row cylindrical roller bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 16538 lbf and reaches speeds of 9000 RPM.

Its PEEK cage keeps rollers centred for smooth operation, while the open design allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

With a 20mm width and 1.5mm axial displacement tolerance, it fits snugly in tight spaces. Ideal for industrial machinery or gearboxes where radial and axial loads are present.

Weighing 0.49kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, especially where SKF compatibility is needed.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NJ 210 ECPH
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 64 mm
  • Chamfer Dimension r1,2(min.) 1.1 mm
  • Chamfer Dimension r3,4(min.) 1.1 mm
  • Permissible Axial Displacement(max.) 1.5 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material PEEK cage, roller centred
  • Dynamic Radial Load 16538 lbf
  • Static Radial Load 15638 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9000 rpm
  • Weight 0.49 kg
  • Shoulder Dia Of Outer Ring 77.4 mm
  • Raceway Diameter Of Inner Ring 59.5 mm
Single Row Cylindrical Roller Bearings With Inner Ring NJ 210 ECPH dimension drawing
Download DWG Download PDF

Features

How Does NJ 210 ECPH Bearing Handle Combined Loads?

NJ 210 ECPH Bearing is designed with chrome steel rings and rollers, providing strong resistance to both radial and axial loads.
Its dynamic radial load capacity reaches 16538 lbf, ensuring reliable performance in demanding applications.
The PEEK cage keeps the rollers centred, reducing wear and extending service life.
With a maximum speed of 9000 rpm, it balances durability and efficiency.

Application

Industrial Uses of NJ 210 ECPH Bearing
NJ 210 ECPH Bearing works well in heavy machinery like conveyor belts and gearboxes, where its cylindrical rollers handle combined loads smoothly. The PEEK cage keeps things running quietly, even at high speeds.

In automotive applications, NJ 210 ECPH Bearing fits nicely into transmissions and wheel hubs, thanks to its precise 50 mm bore. The chrome steel construction ensures it lasts under constant stress.

For automation systems, NJ 210 ECPH Bearing is a solid pick for robotic arms and assembly lines. Its open design allows easy lubrication, while the 9000 rpm max speed keeps up with fast-paced production.

Medical imaging devices benefit from NJ 210 ECPH Bearing’s reliable performance and low maintenance needs. The grease or oil lubrication options make it adaptable to different hospital equipment requirements.

Around the house, NJ 210 ECPH Bearing can be found in power tools and washing machines. Its 20 mm width fits compact spaces, and the temperature range handles both hot and cold conditions.
